Inspection

Power Door Lock Actuator Inspection
1. Disconnect power door lock actuator coupler.

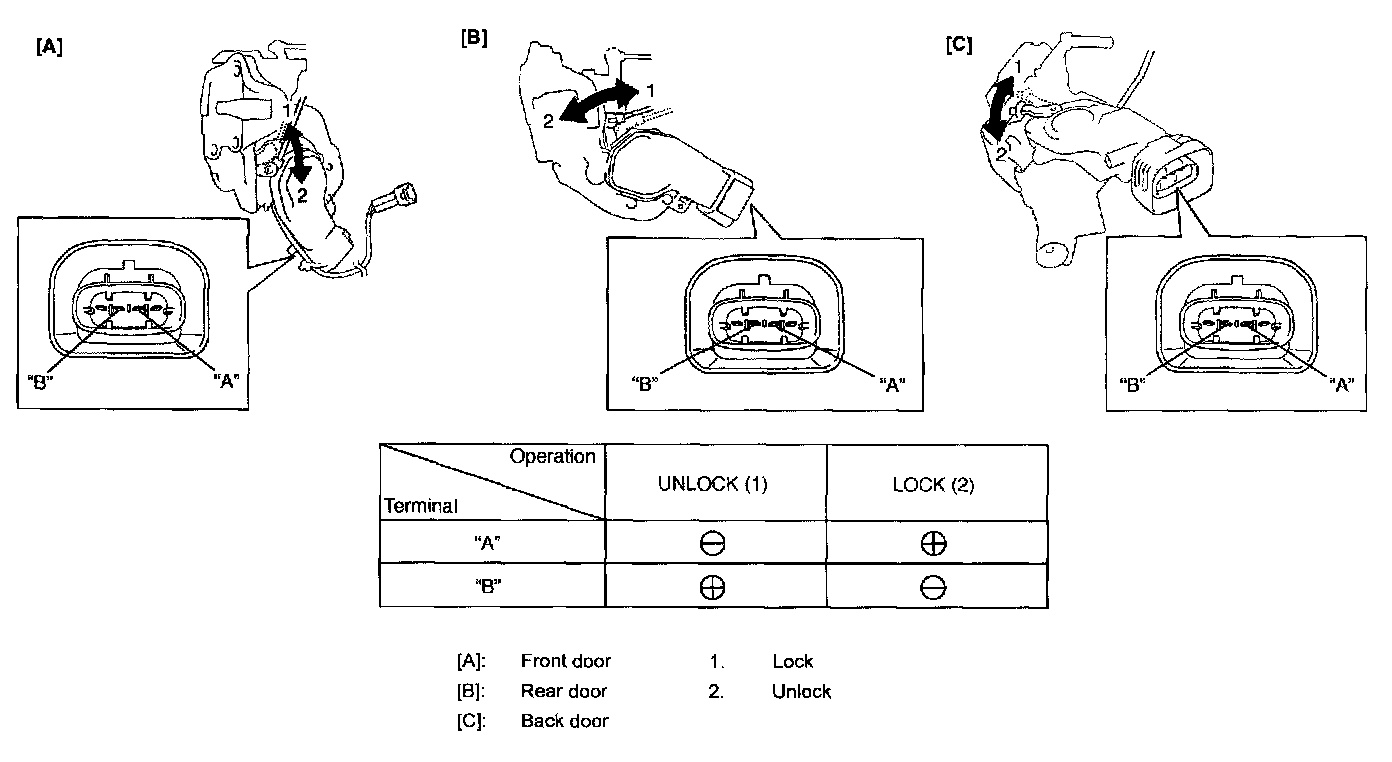

2. Connect 12 V battery positive and negative terminals to the door lock actuator terminals shown above. If it does not follow the table's operation, replace the faulty door lock actuator.
