P2027

DTC P2027: EVAP Temp. Circuit High Voltage

Wiring Diagram:

DTC Detecting Condition and Trouble Area:

DTC confirmation procedure
1. Connect scan tool to DLC with ignition switch OFF.
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data in ECM memory by using scan tool and run engine at idle speed for 10 sec. or more.
3. Check pending DTC and DTC.

Step 1:

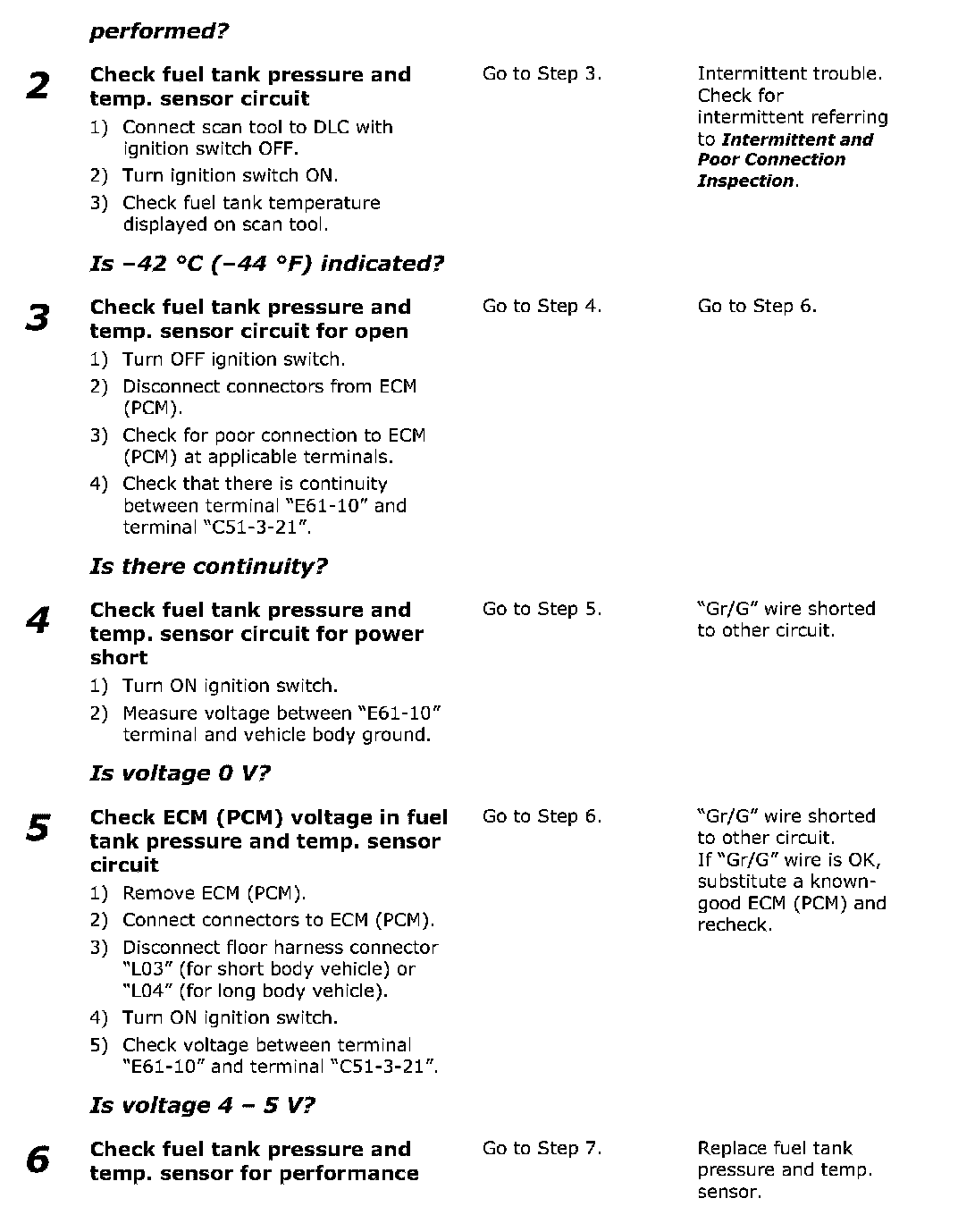

Step 1 (Cont'd) - 6:

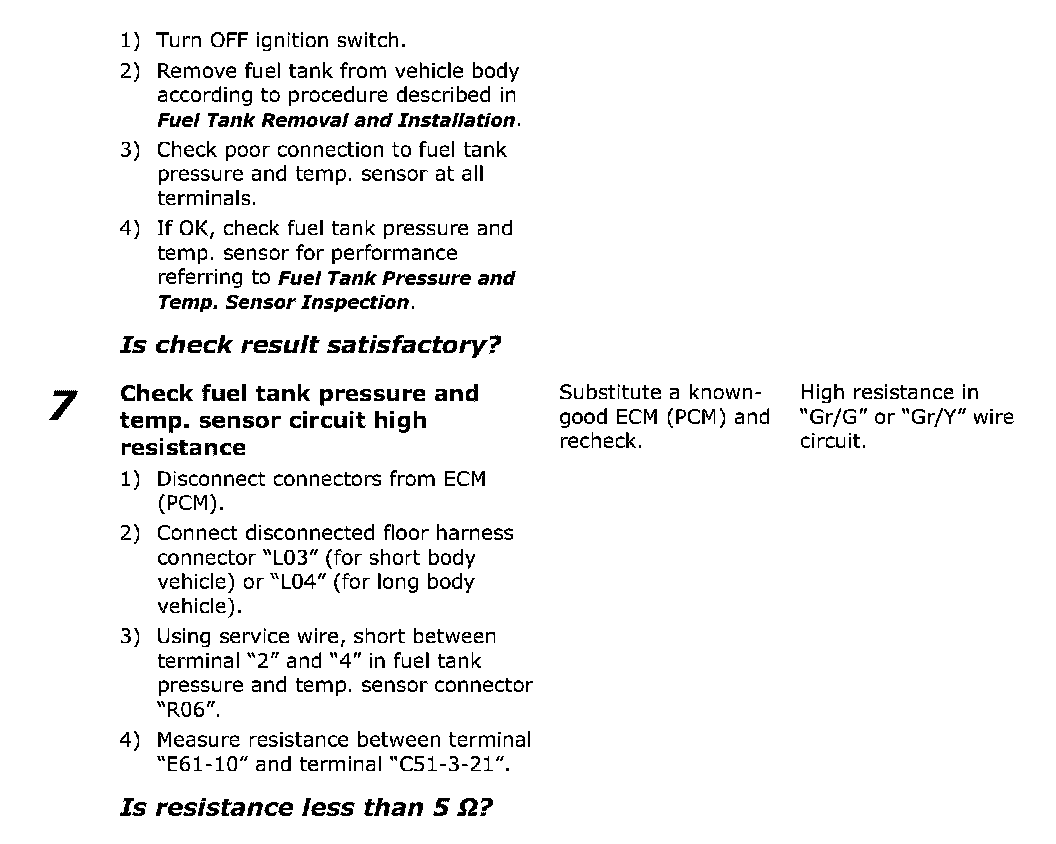

Step 6 (Cont'd) - 7:

DTC troubleshooting
