P0456

DTC P0456: Evaporative Emission System Leak Detected (Very Small Leak)

System / Wiring Diagram:

DTC Detecting Condition and Trouble Area:

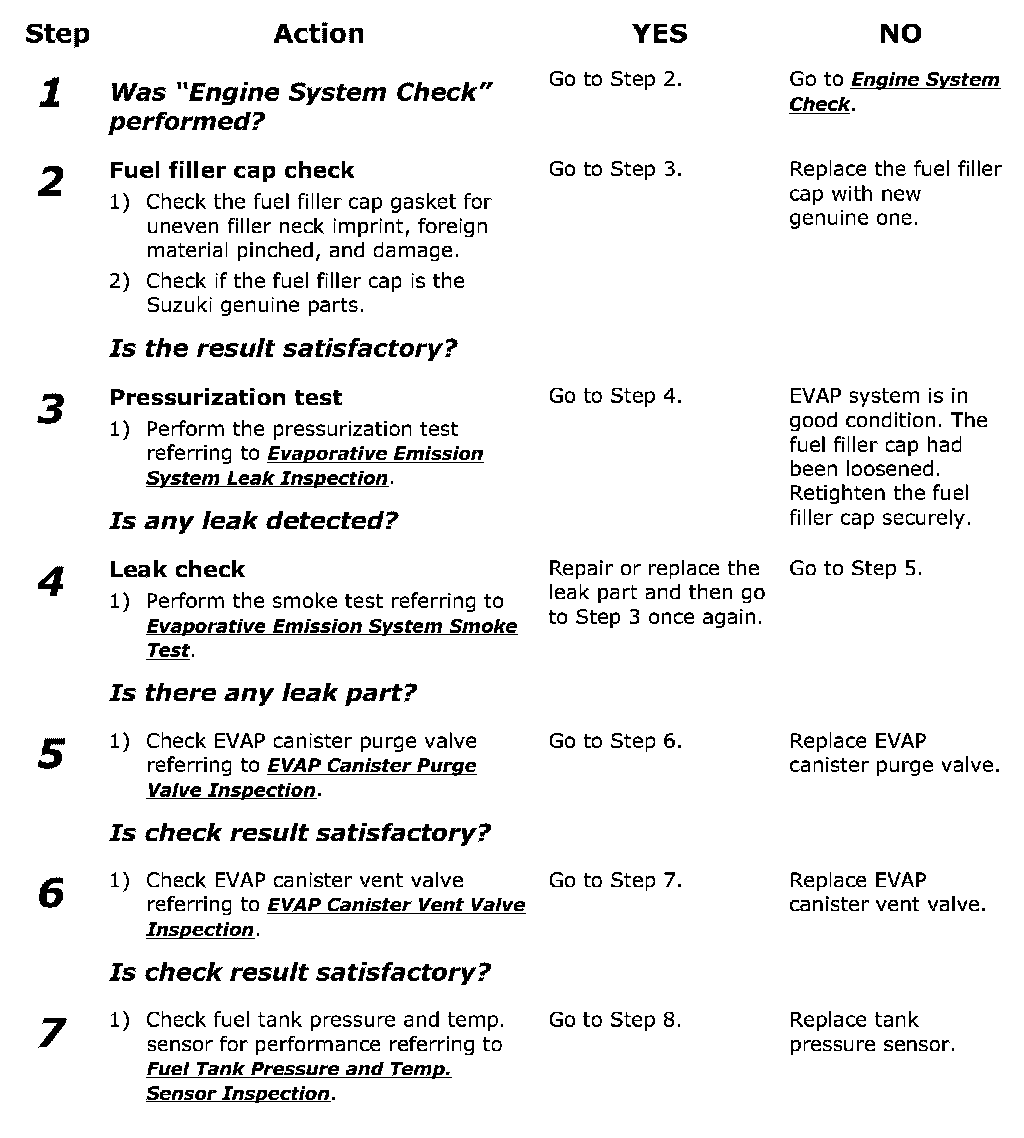

Step 1 - 7:

Step 7 (Cont'd) - 8:

DTC Troubleshooting
