P0335

DTC P0335: Crankshaft Position (CKP) Sensor Circuit

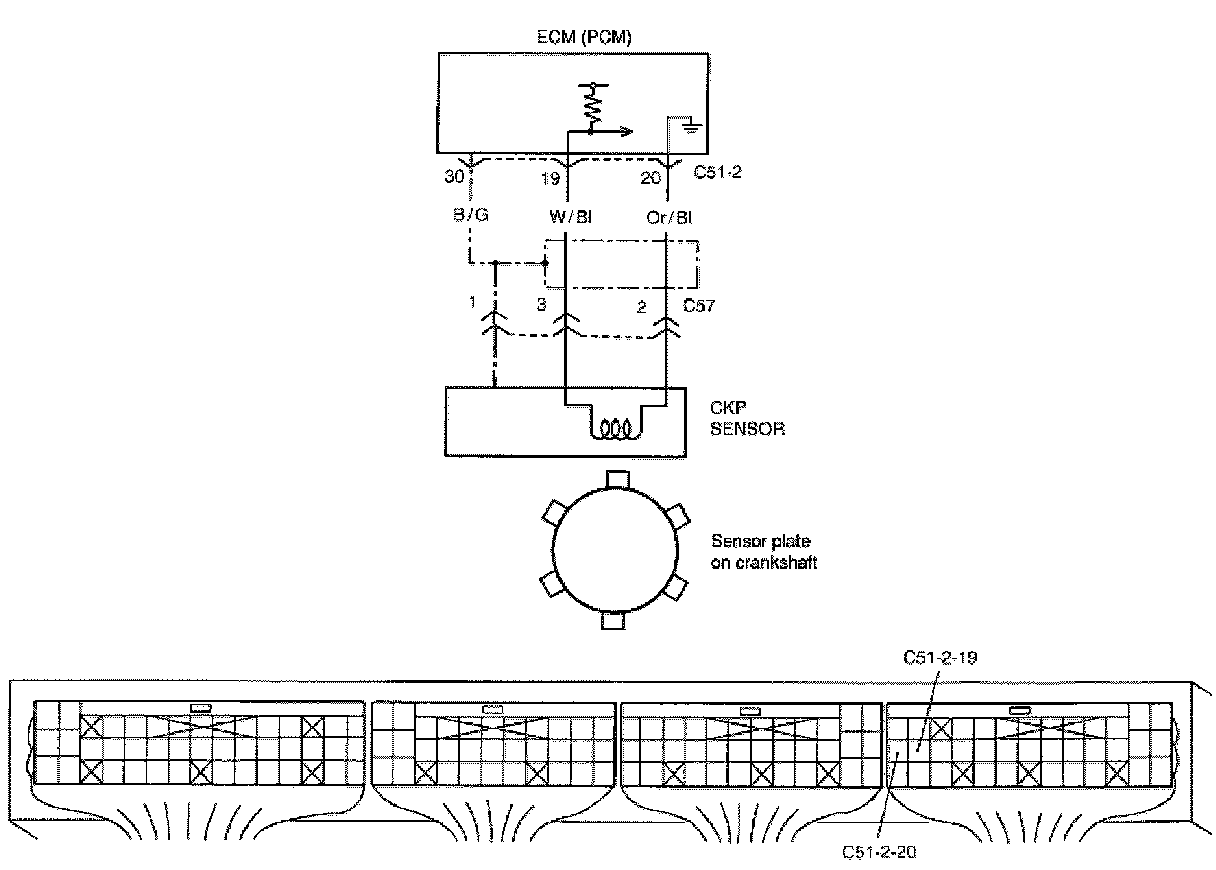

Wiring Diagram:

Reference
Connect oscilloscope between terminals "C51-2-19" (+) and "C51-2-20" (-) of ECM (PCM) connector connected to ECM (PCM) and check CKP sensor signal.

DTC Detecting Condition and Trouble Area:

DTC Confirmation Procedure

NOTE:
Check to make sure that the following conditions are satisfied when using this "DTC Confirmation Procedure".
- Intake air temperature: -8 °C (18 °F) or higher
- Engine coolant temperature: -8 - 110 °C (18 - 230 °F)
- Altitude (barometric pressure): 2400 m, 8000 ft or less (560 mmHg, 75 kPa or more)

1. Connect scan tool to DLC with ignition switch OFF.
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run engine at idle speed for 10 sec.
3. Check DTC and pending DTC by using scan tool.

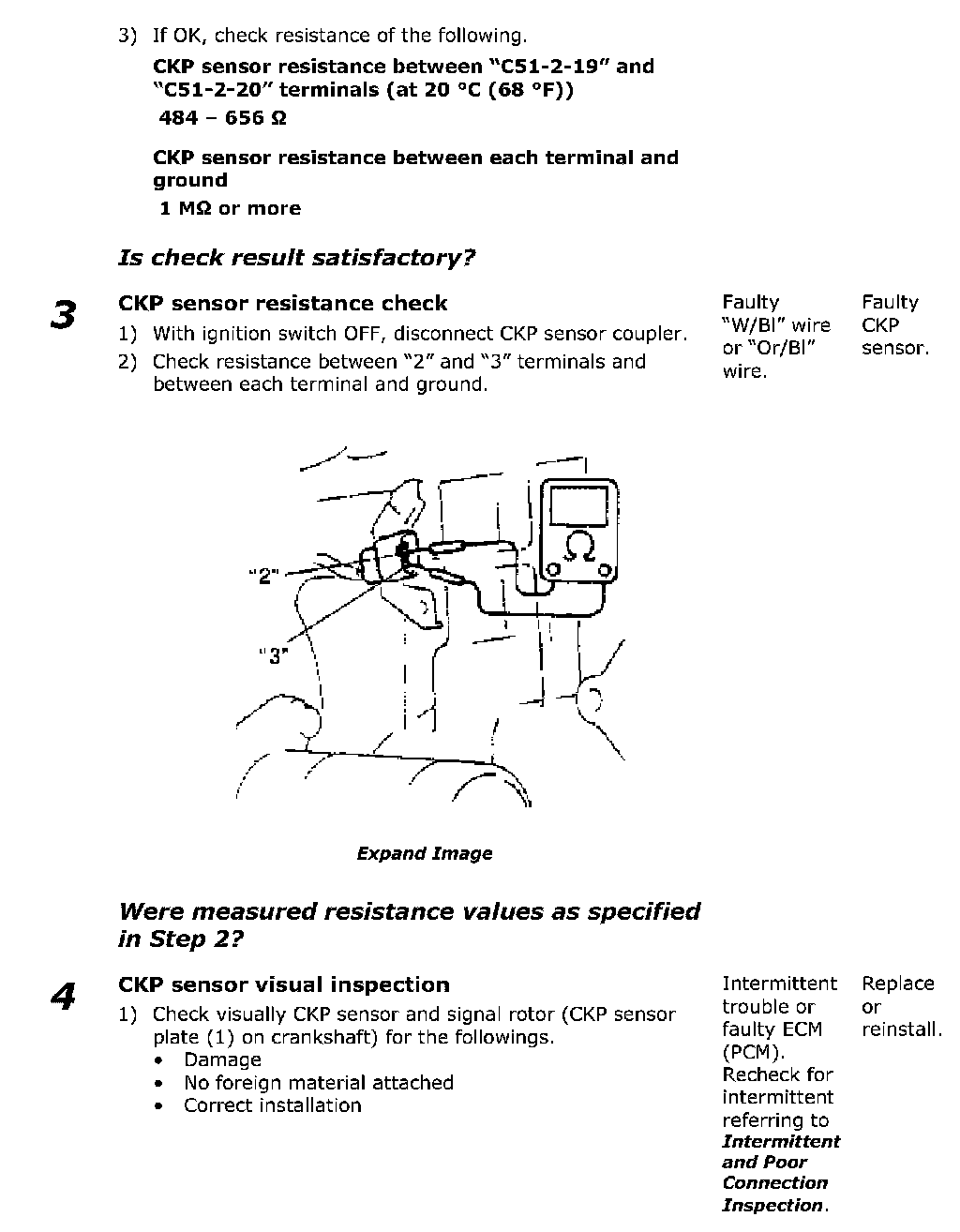

Step 1 - 2:

Step 2 (Cont'd) - 4:

Step 4 (Cont'd):

DTC Troubleshooting
