B Codes - Air Bag System

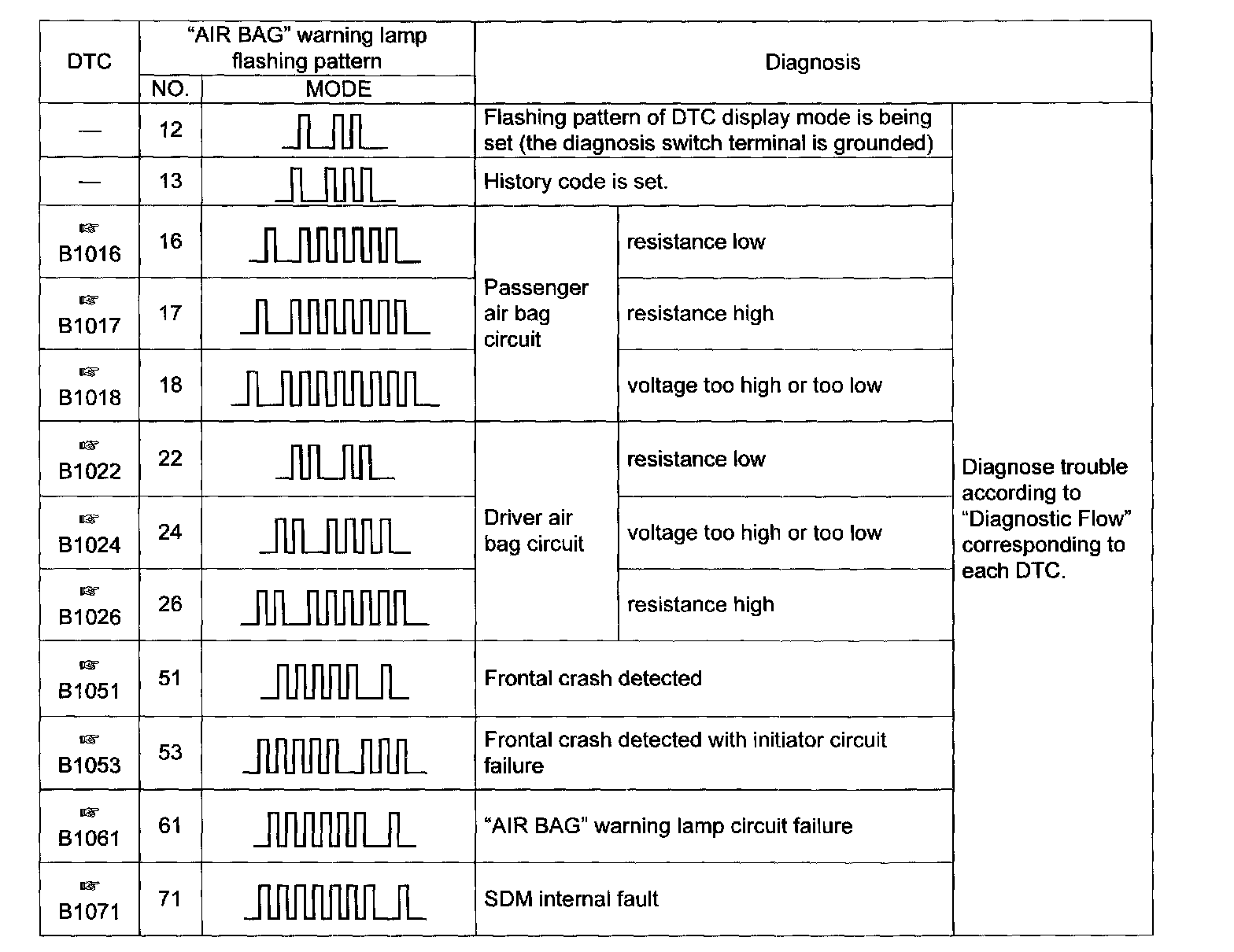

DTC Table:

DTC Table






NOTE:
- When 2 or more codes are indicated, the lowest numbered code will appear first.
- If a code not listed on the table is displayed, then the SDM is faulty.
- Current DTC and history DTC can be identified by lighting and flashing of "AIR BAG" warning lamp as follows.

If more than one history codes are set, the "AIR BAG" warning lamp flashes the flashing pattern of No.13 only and none of other history DTC. Therefore, it is not possible to identify the history DTC by the flashing pattern of the "AIR BAG" warning lamp. However, it can be identified by using the SUZUKI scan tool.
