B1514

DTC B1514 (No.14): Air Flow Control Actuator and Its Circuit Malfunction

Wiring Diagram:

DTC Detecting Condition and Trouble Area:

Step 1:

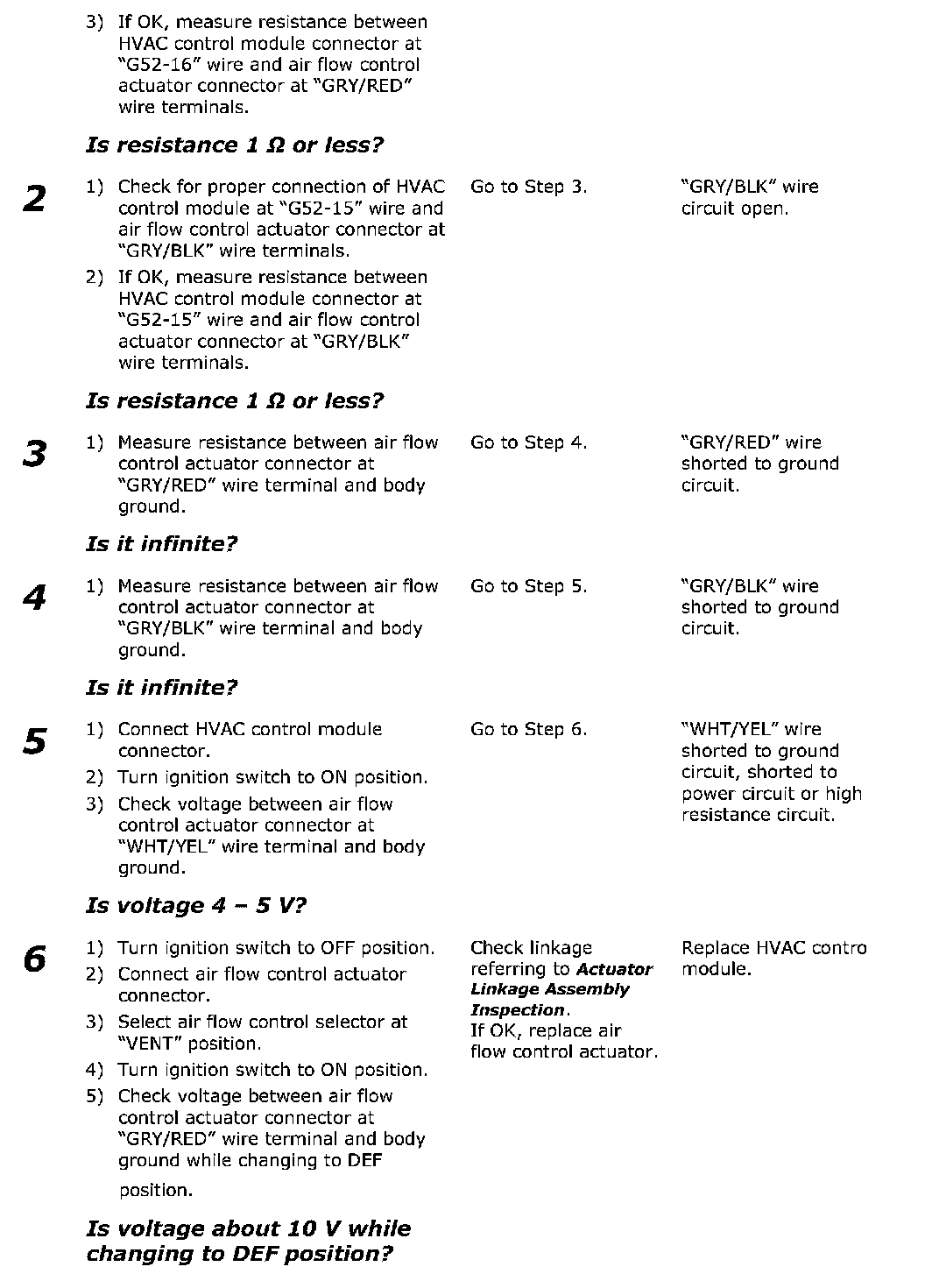

Step 1 (Cont'd) - 6:

DTC Troubleshooting
