B1503

DTC B1503 (No.03): A/C Evaporator Temperature Sensor and Its Circuit Malfunction

Wiring Diagram:






DTC Detecting Condition and Trouble Area:






Step 1:

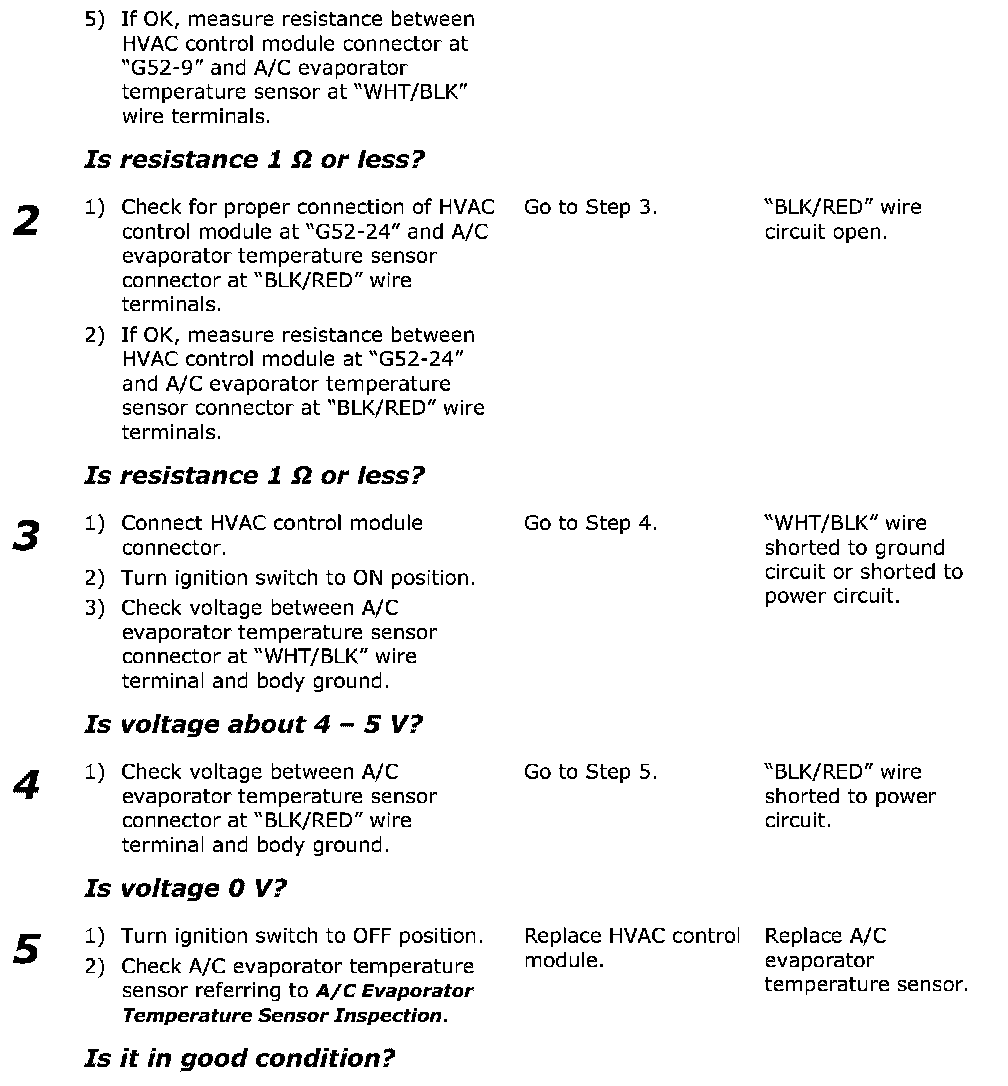

Step 1 (Cont'd) - Step 5:




DTC Troubleshooting
