Transfer Components

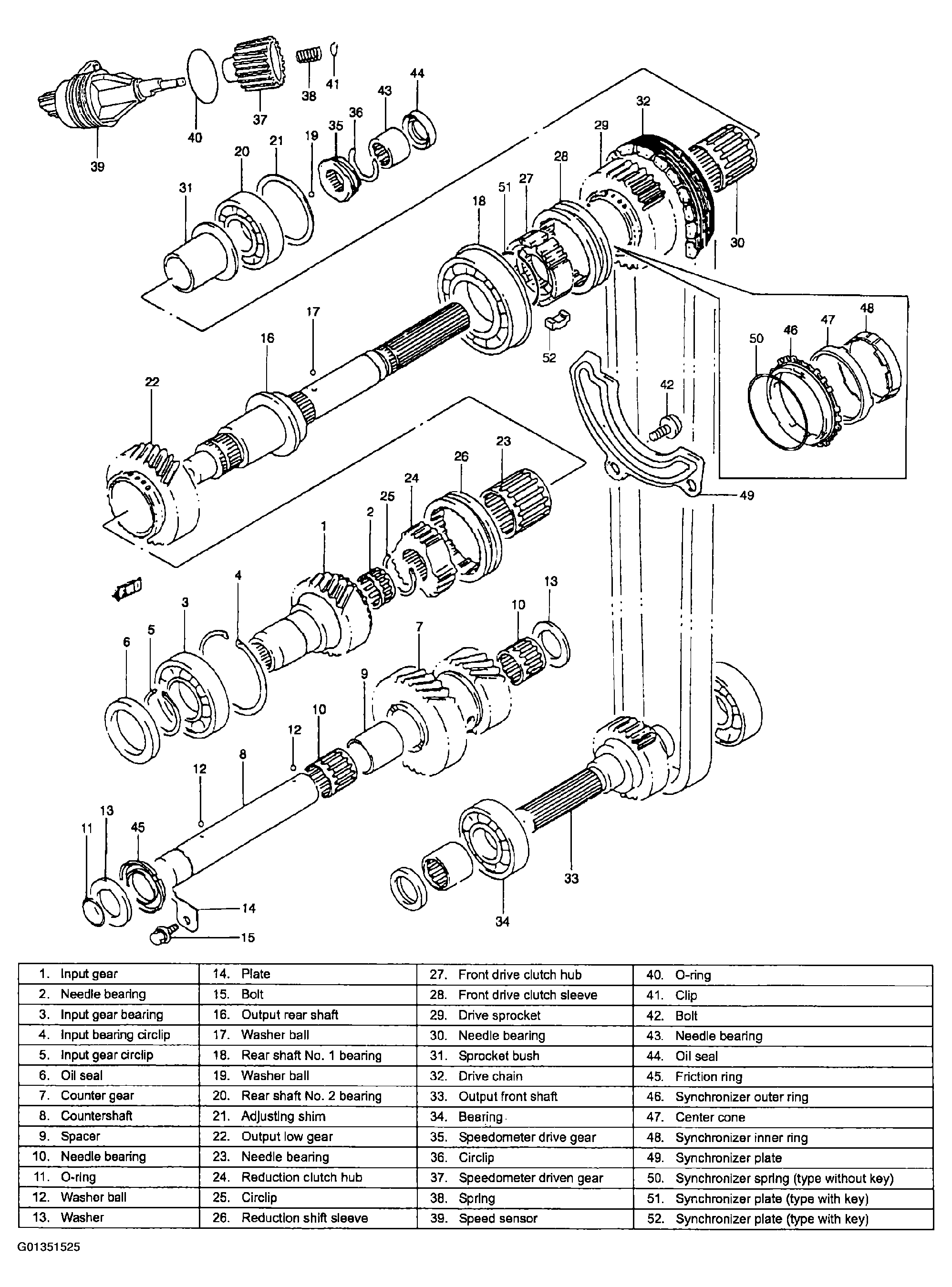

Fig 1: Exploded View Of Transfer Components

G01351525

Courtesy of SUZUKI OF AMERICA CORP.
