Shift Control Levers Removal & Installation: Removal

Remove 4 screws at the front and rear and 2 clips at the center then take off front and rear center console boxes.
NOTE: To remove clip, push in its center pin first.

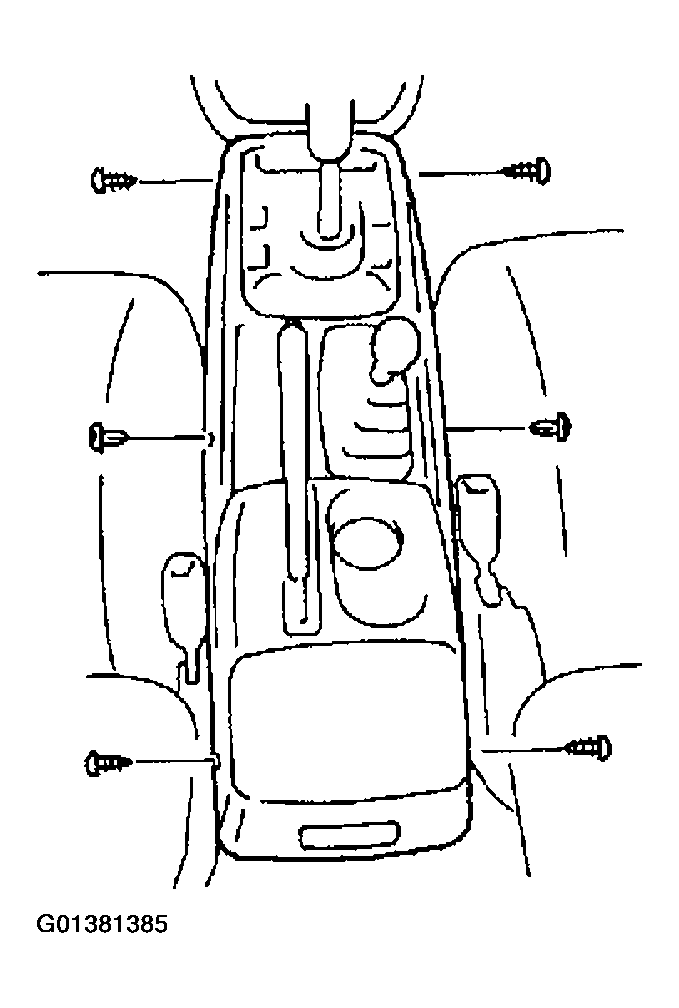

Fig 1: Identifying Front & Rear Center Console Box Screws
Courtesy of SUZUKI OF AMERICA CORP.
Remove console box bracket (2) by removing bolts (1).
Lift up boot No. 3 (3), boot cover (4) and boot No. 2 (5).
Remove boot clamp and then remove boot No. 1 (9) from transmission shift lever case (7).
With gear shift control case cover (8) pushed down with fingers, turn it to counter clockwise and take out shift control lever (6).

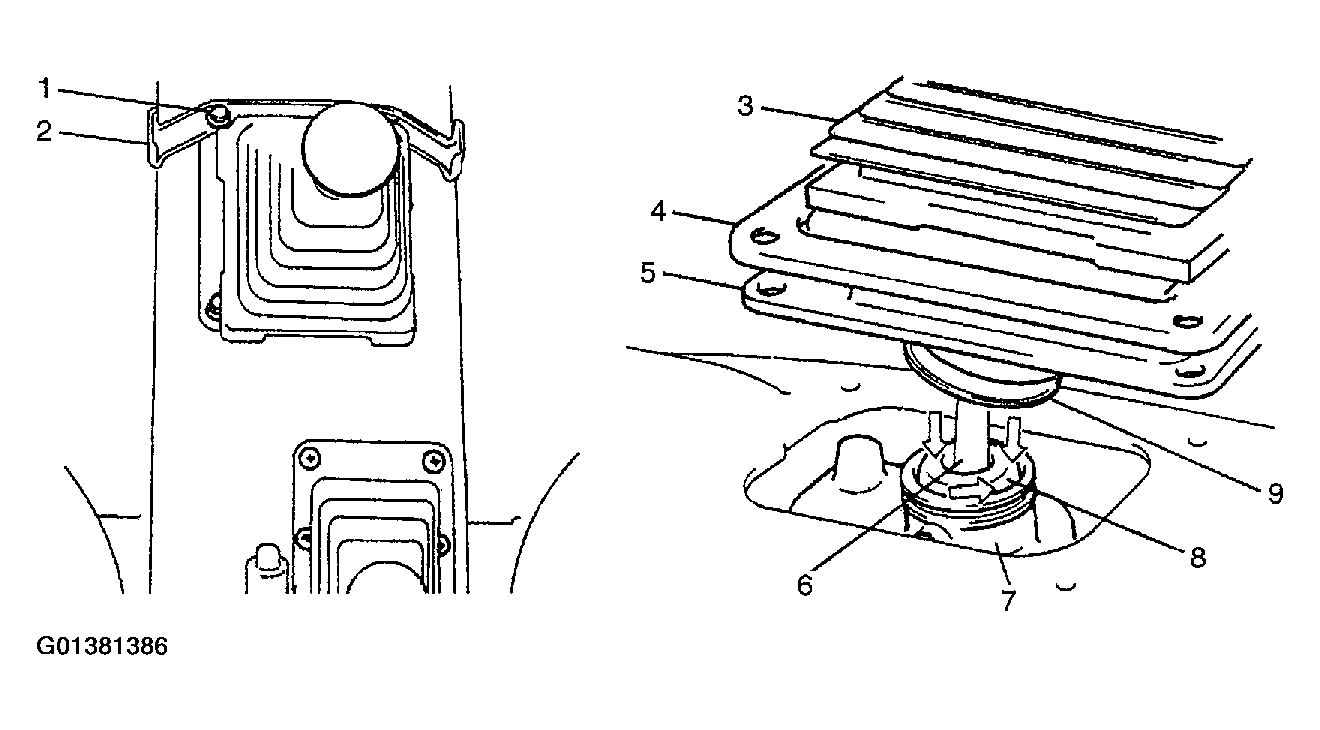

Fig 2: Identifying Shift Control Lever & Peripheral Components
Courtesy of SUZUKI OF AMERICA CORP.
Take out transfer shift control lever in similar manner.
