Input Shaft Disassembly & Assembly: Assembly

  1. When installing bearing (1), bring it so that its groove for circlip is in the front and press-fit with special tool and press.

    Special tool

    (B):  09925-18011

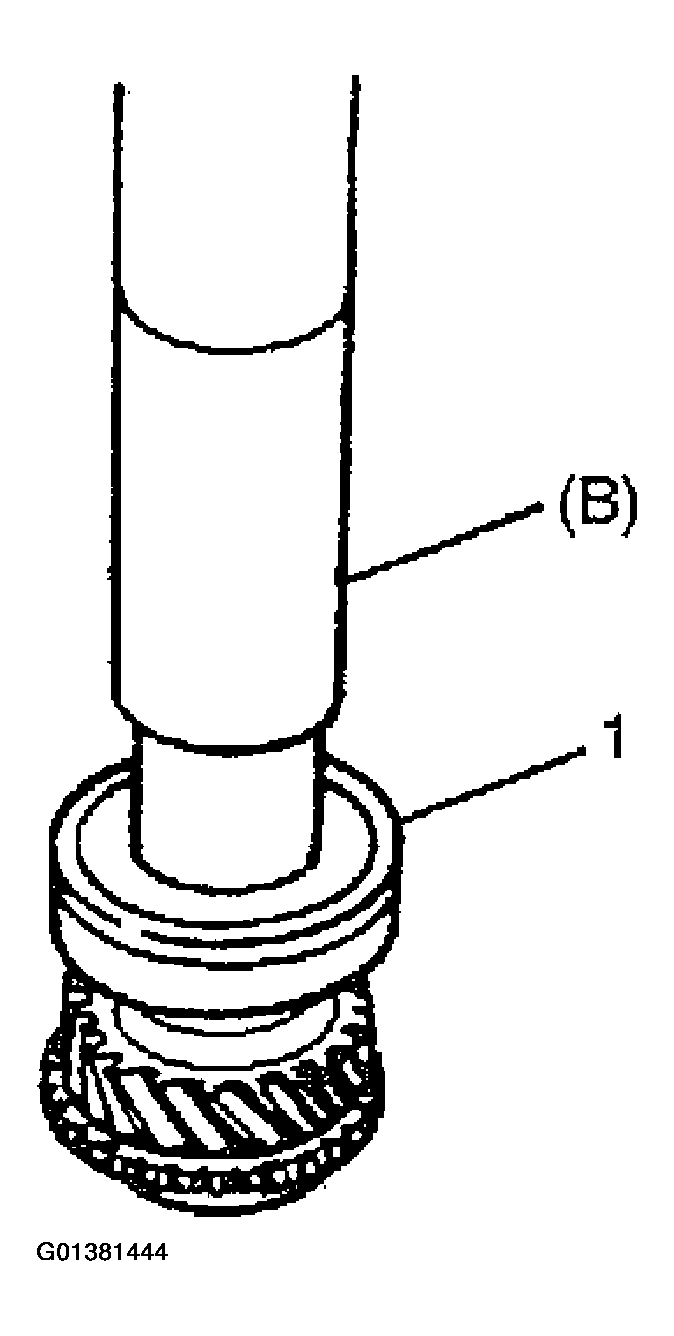

    Fig 1: Installing Input Shaft Bearing
    G01381444Courtesy of SUZUKI OF AMERICA CORP.
  2. After fitting circlip (1), air-blow lubrication oil hole (2).
    Fig 2: Identifying Input Shaft Circlip & Lubrication Oil Hole
    G01381445Courtesy of SUZUKI OF AMERICA CORP.
