Gear Shift Lever Case (2WD Model) Disassembly & Assembly: Disassembly

Using spring pin remover, drive out spring pin (10) for gear shift arm (9).
Drive out spring pin (4) for reverse gear shift limit spring (7).
Drive out double spring pin (2) for gear shift lever (5).
Pull out gear shift shaft (8) a little and take out gear shift arm (9).
NOTE:
- Case plug may come off during above work.
- If it is not possible to take out gear shift arm (9) in above Step 4), do it after the following Steps 5) and 6).
Push gear shift shaft (8) inward and drive out spring pin for reverse gear shift limit yoke (6).
Pull out gear shift shaft (8) from case (1).

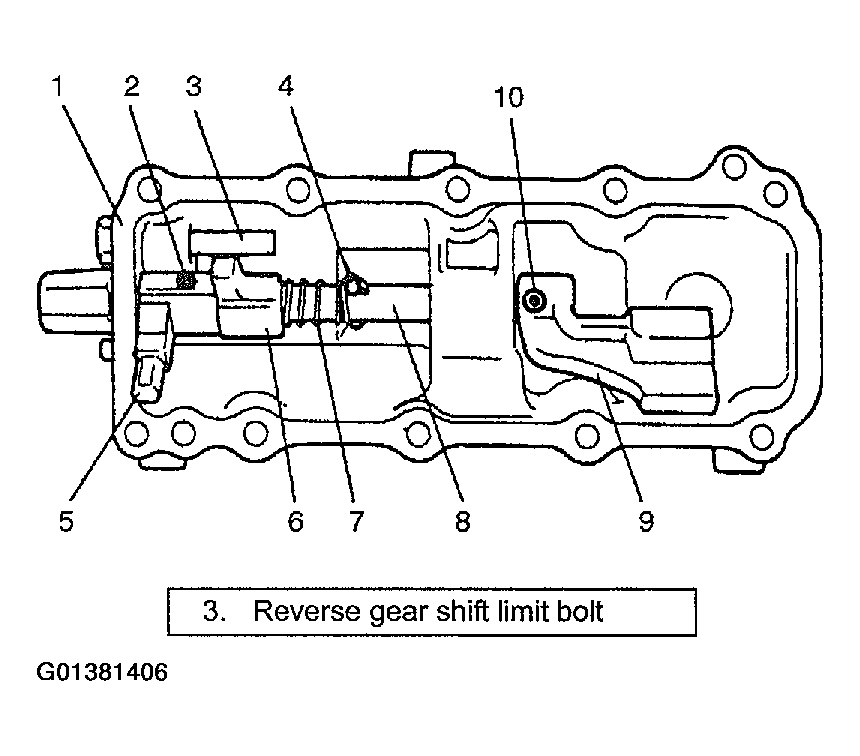

Fig 1: Identifying Gear Shift Lever Case & Components (2WD Model)
Courtesy of SUZUKI OF AMERICA CORP.
