Engine Rear Mounting Replacement

When replacement of mounting parts are necessary, torque bolts and nut as specified below.

Tightening torque

Engine rear mounting bolt and nut (a):  50 N-m (5.0 kg-m, 36.5 lb-ft)

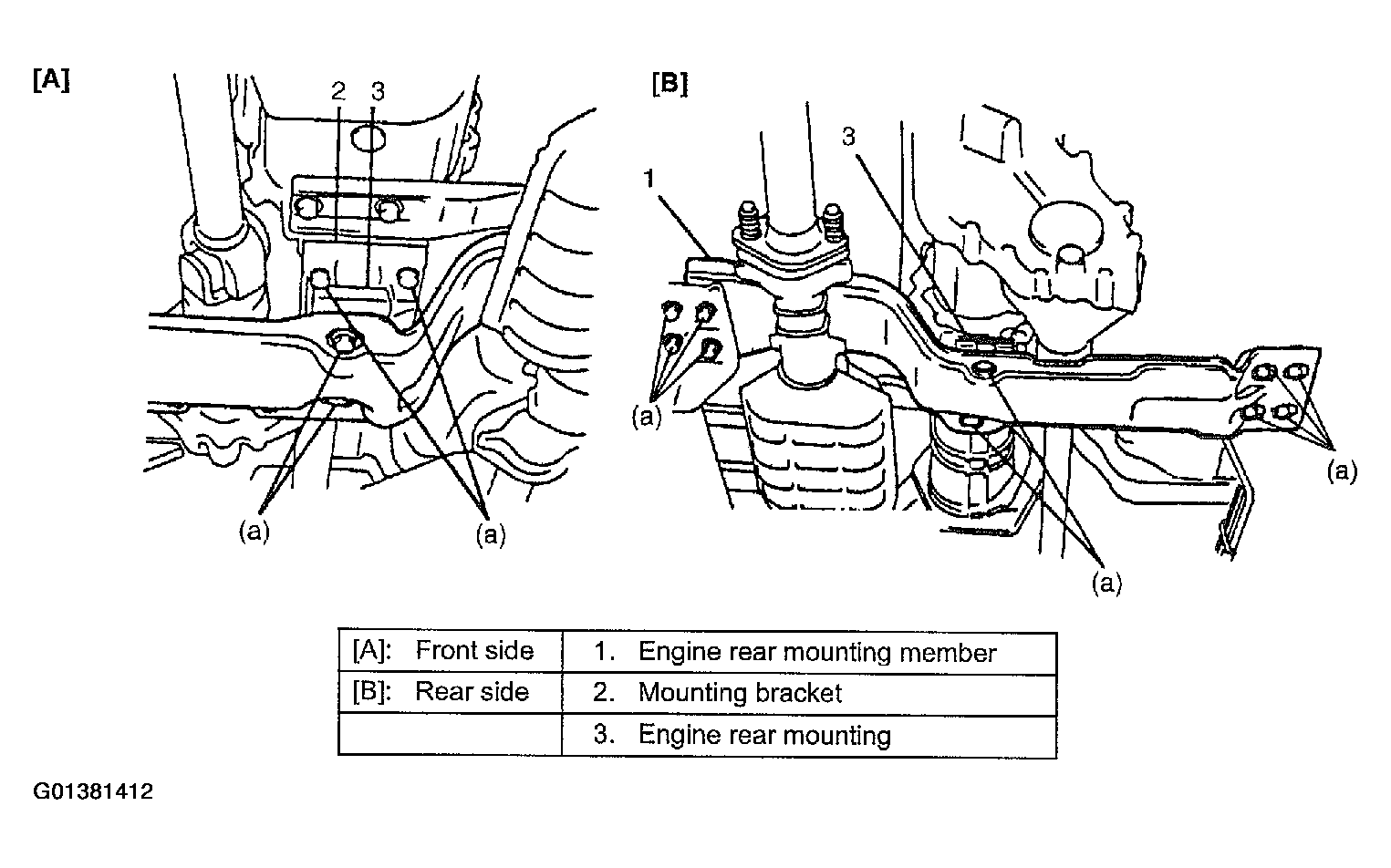

Fig 1: Identifying Engine Rear Mounting Bracket, Mounts & Mounting Bolts

Courtesy of SUZUKI OF AMERICA CORP.
