Clutch Master Cylinder Disassembly & Assembly: Disassembly

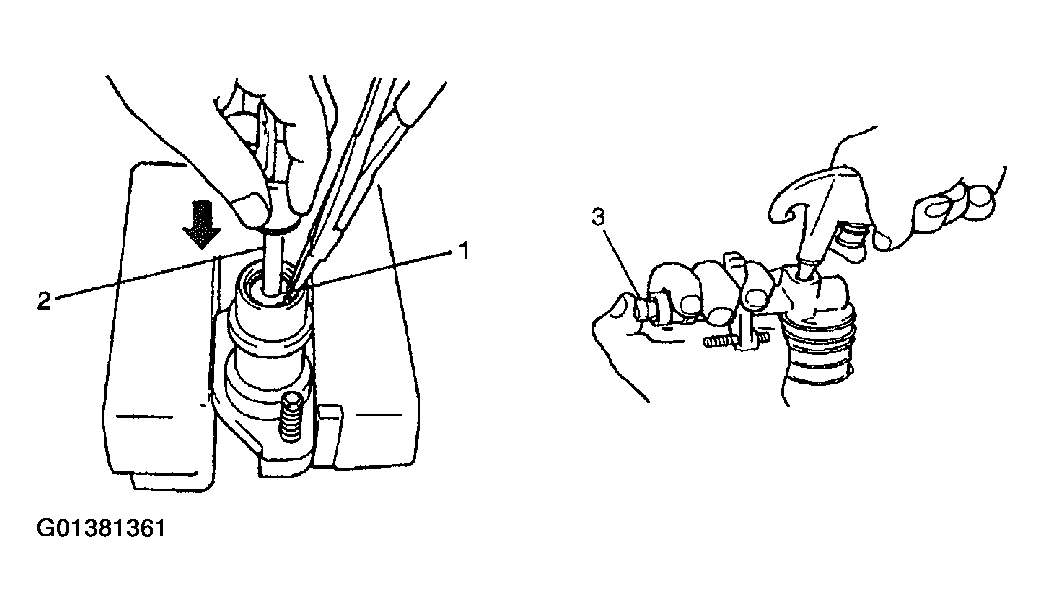

- Remove boot and then circlip (1) with piston (3) pushed in.
- Remove push rod (2) and blow compressed air gradually into hole for pipe connection to remove piston assembly, using care to prevent it from jumping out.
Courtesy of SUZUKI OF AMERICA CORP.
