Clutch Master Cylinder Components

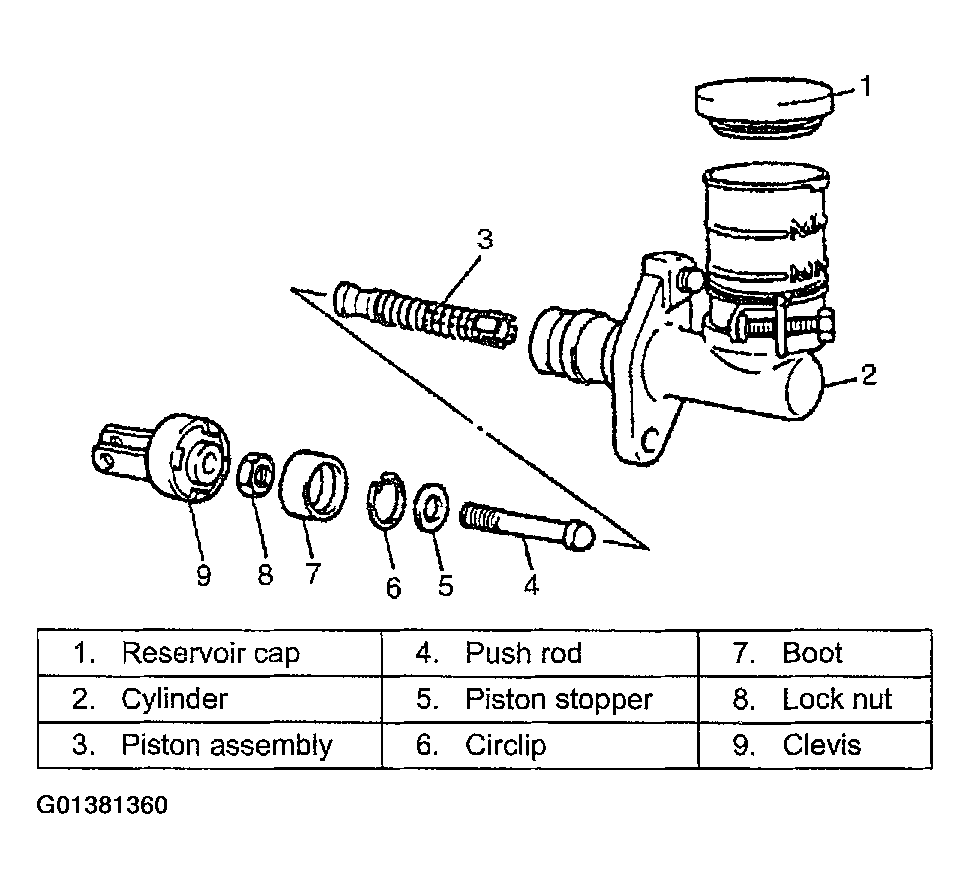

Fig 1: Identifying Clutch Master Cylinder Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
