Fuel Pump Relay Inspection
- Disconnect negative cable at battery.

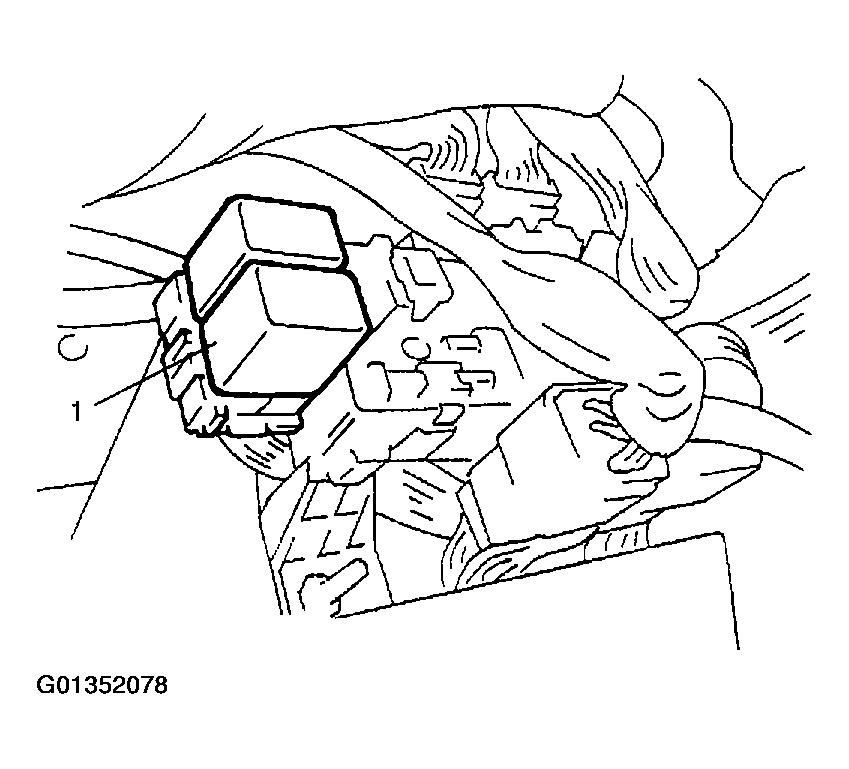

- Remove fuel pump relay (1) from connector.
- Structure of fuel pump relay is the some as that of main relay.
Check its resistance and operation using the same procedures as that for main relay. If malfunction is found, replace.
