Throttle Body & Intake Manifold Components

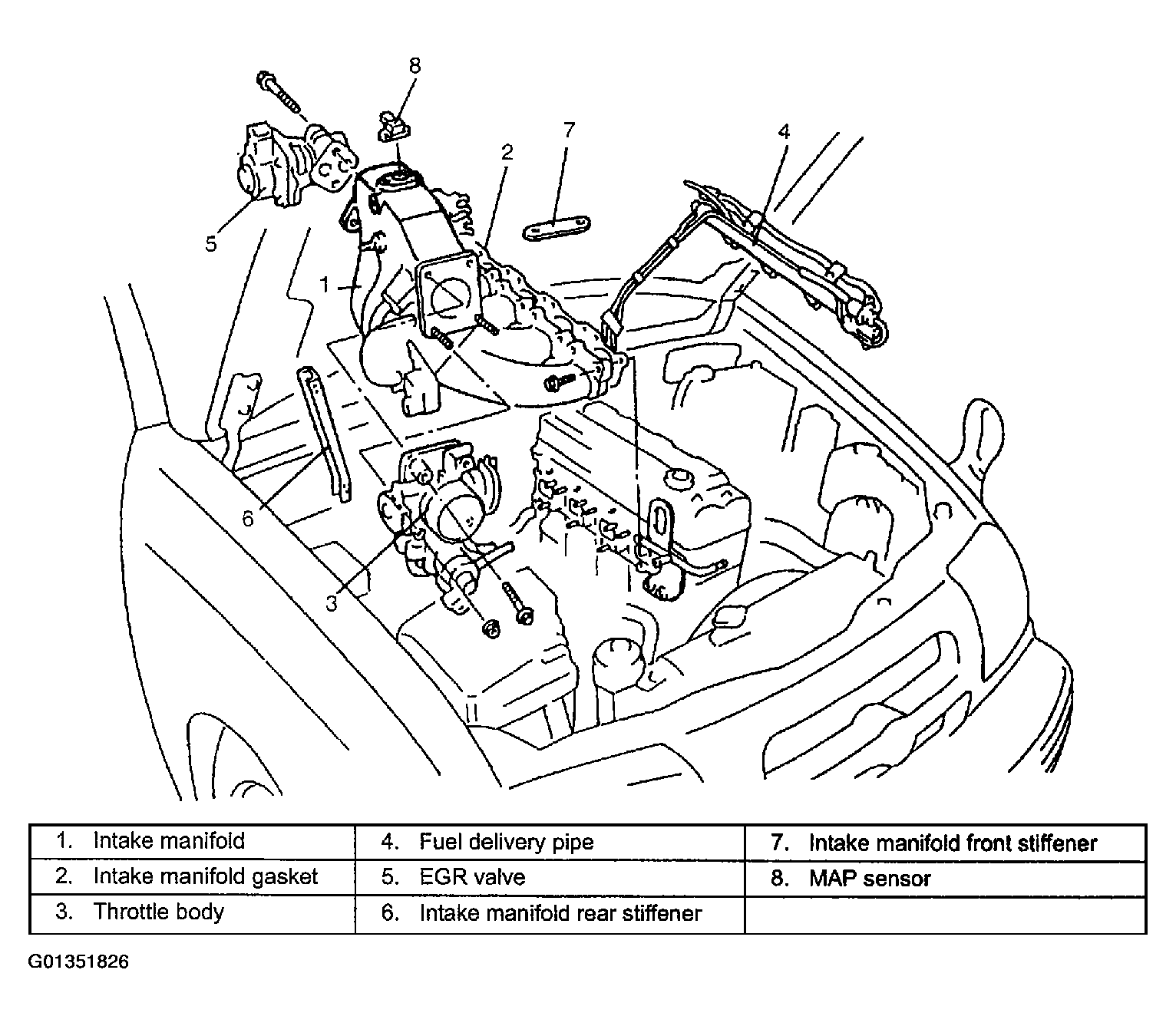

Fig 1: Identifying Throttle Body & Intake Manifold Components
G01351826Courtesy of SUZUKI OF AMERICA CORP.
