Abs Actuator (EBCM And BPMV) Assembly Removal And Installation: Installation

Install ABS actuator (EBCM and BPMV) assembly by reversing removal procedure.

• Torque bolt and nut to specified torque.

  Tightening torque

  1. Brake pipe flare nut (a):  16 N.m (1.6 kg-m, 12.0 lb-ft)
  2. ABS actuator assembly bolt (b):  23 N.m (2.3 kg-m, 17.0 lb-ft)
  3. ABS actuator assembly bracket bolt (c):  10 N.m (1.0 kg-m, 7.5 lb-ft)

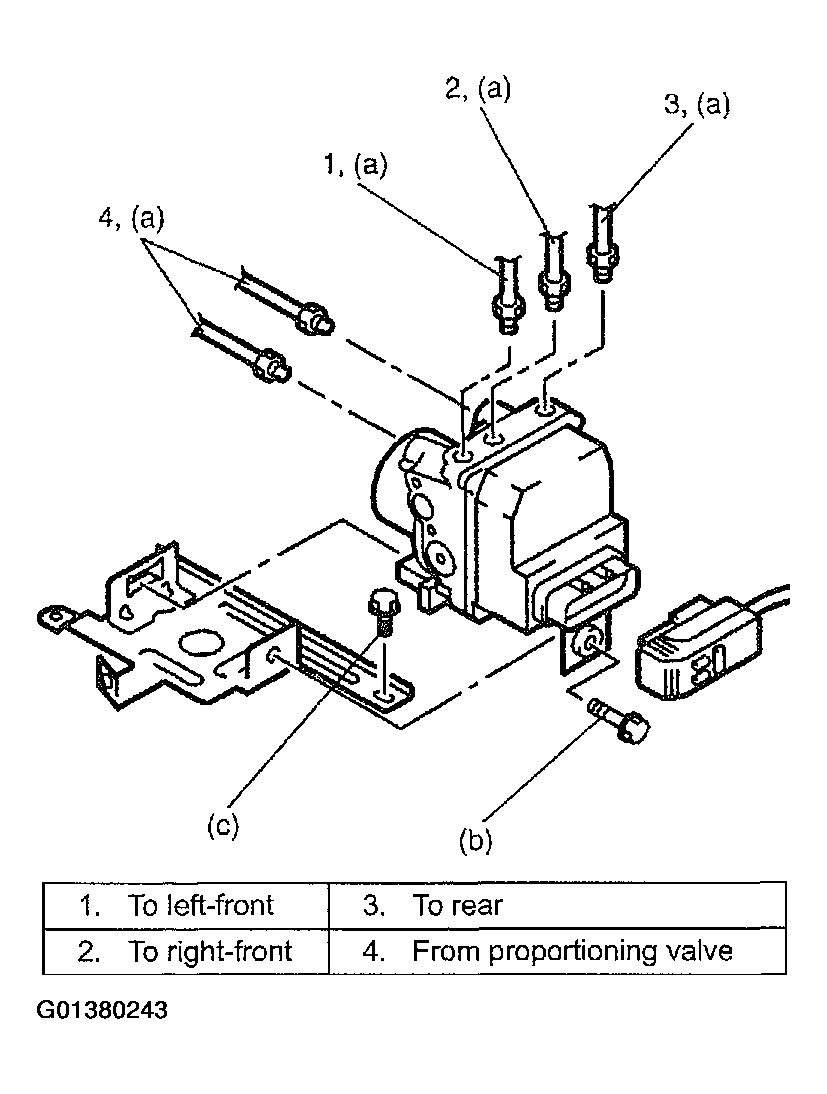

     Fig 1: Installing ABS Actuator (EBCM & BPMV) Assembly

     Courtesy of SUZUKI OF AMERICA CORP.
• Bleed air from brake system referring to "Air Bleeding".
• Check each installed part for fluid leakage and perform ABS actuator (EBCM and BPMV) assembly operation check.
