DTC Troubleshooting

NOTE: "ABS Check:" must be performed first before using this flow. Refer to ABS CHECK .

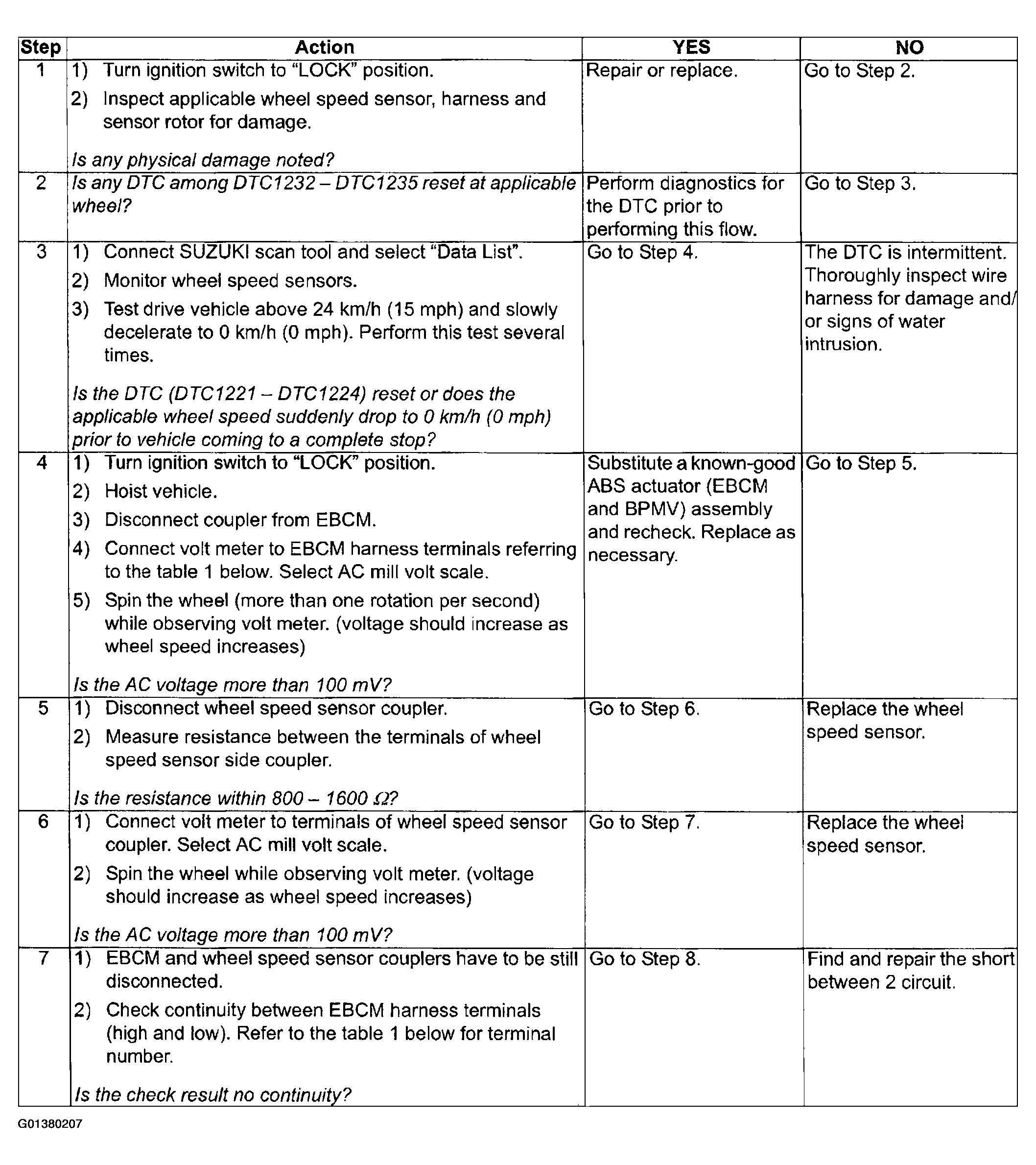

Fig 1: Wheel Speed Sensor Input Signal = 0 Troubleshooting Chart (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

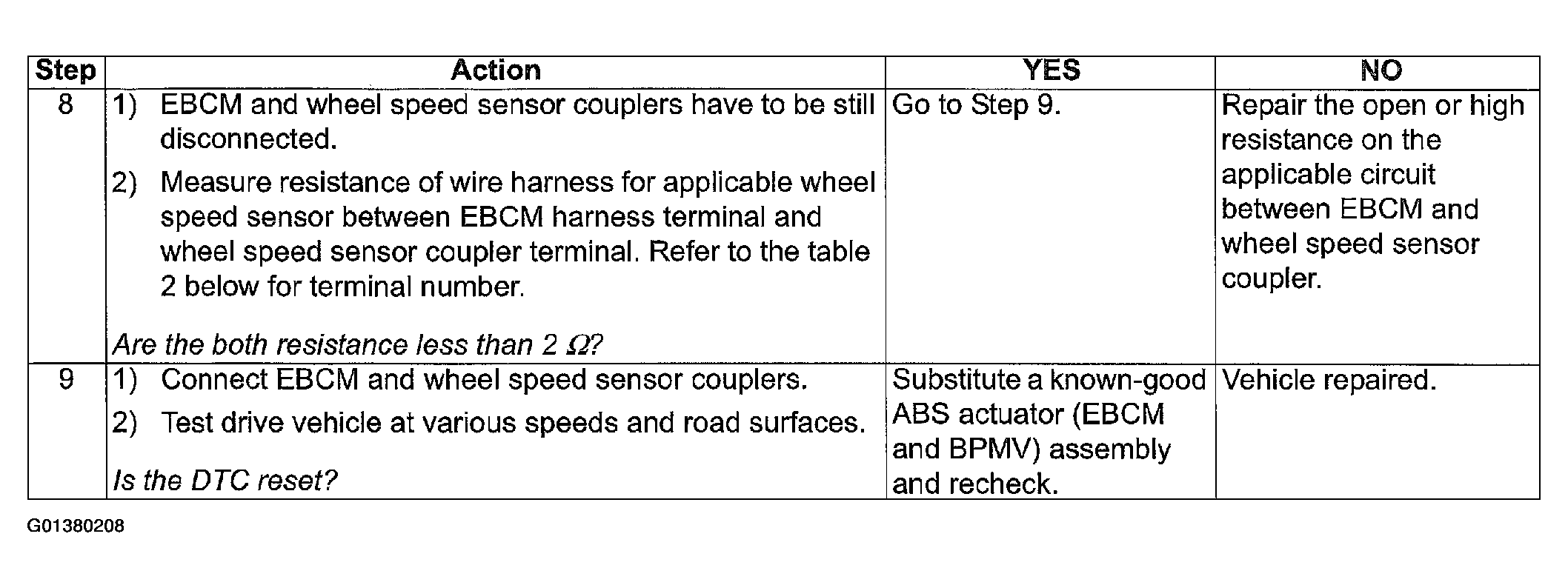

Fig 2: Wheel Speed Sensor Input Signal = 0 Troubleshooting Chart (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
