DTC C1217/C1242: Pump Motor Circuit Shorted To Ground / Open: Wiring Diagram

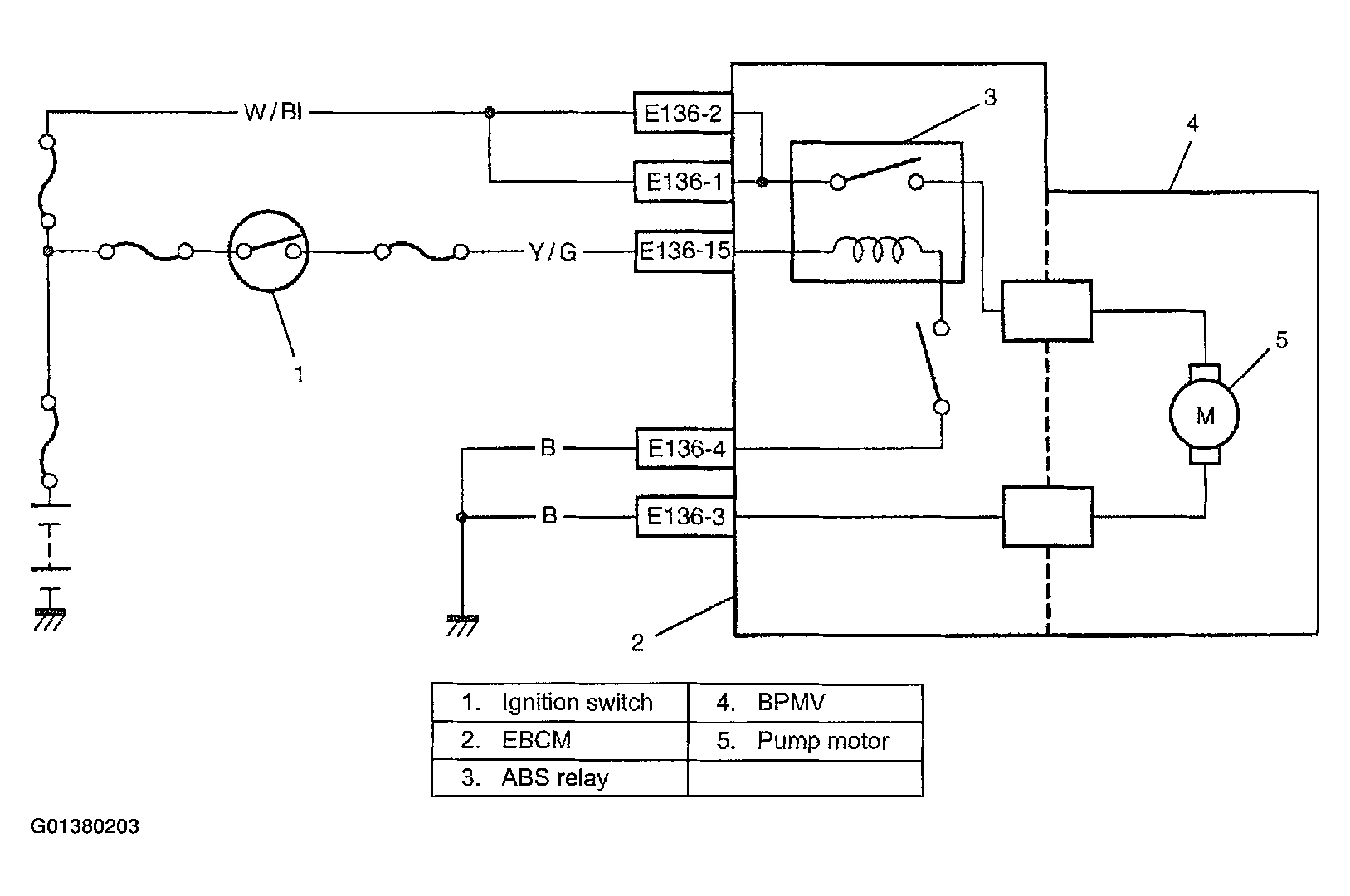

Fig 1: Pump Motor Circuit Shorted To Ground/Open Wiring Diagram
G01380203Courtesy of SUZUKI OF AMERICA CORP.
