Rear Door Window Regulator Removal And Installation: Installation

Reverse removal sequence to install door window regulator noting the following points.

• Tighten regulator base nuts according to the order (a, b, c) shown in the figure.
• Adjust door window regulator according to the following procedure.

1. Loosen 3 nuts, 2 screws and 2 bolts.
2. Raise window fully.
3. Tighten 3 regulator rail nuts according to the order (d, e, f) shown in the figure and 2 center sash bolts A.
4. Lower window.
5. Tighten 2 screws B to specified torque. Tighten front screw first, then rear.

   Tightening torque

   Glass attaching screw (front and rear) :  2.5 N.m (0.25 kg.m 1.8 lb.ft)

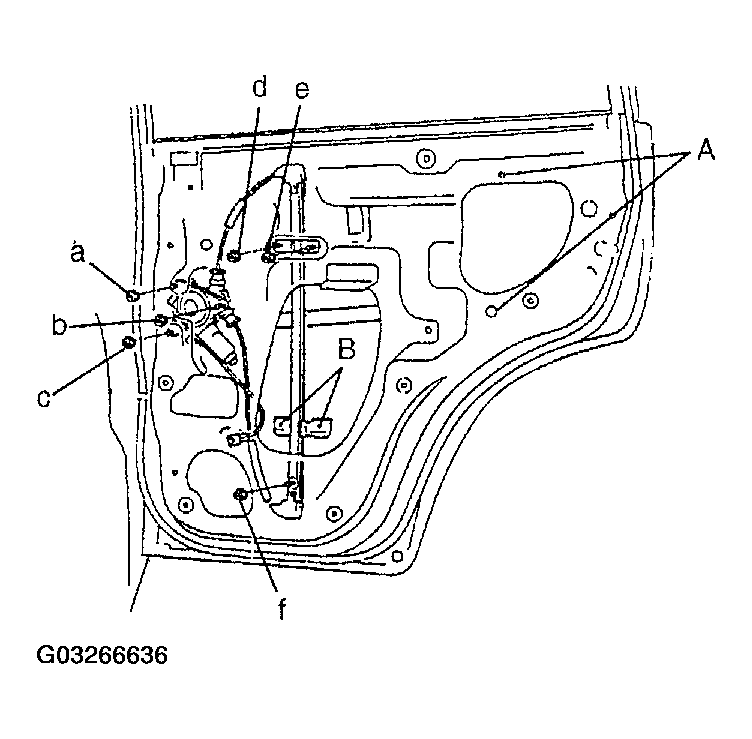

   Fig 1: Adjusting Door Window Regulator

   Courtesy of SUZUKI OF AMERICA CORP.
6. Check that the glass moves up and down smoothly and that the top part of the glass contacts the glass run evenly.

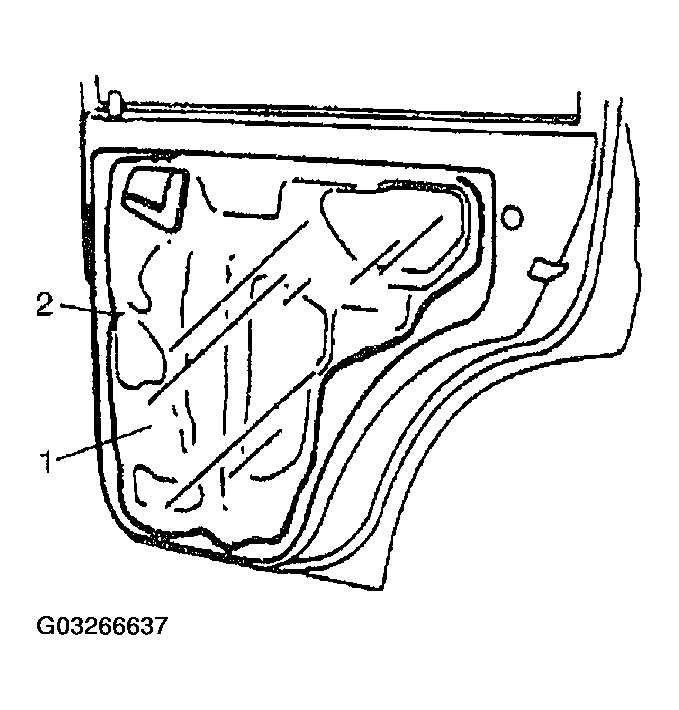

• Securely seal door sealing cover (1) with adhesive (2).
  Fig 2: Sealing Door Sealing Cover

  Courtesy of SUZUKI OF AMERICA CORP.
• Install door window regulator handle (if equipped) so that it has an angle as shown when glass is fully closed.
  Fig 3: Installing Door Window Regulator Handle

  Courtesy of SUZUKI OF AMERICA CORP.
