Front Door Window Regulator Removal And Installation: Removal

  1. Remove door glass referring to FRONT DOOR GLASS REMOVAL AND INSTALLATION .
  2. Disconnect power window motor lead wire at coupler and loosen clamp.
  3. Loosen regulator mounting bolts (1), nuts (2) and take out regulator through hole (3) as shown in the figure.

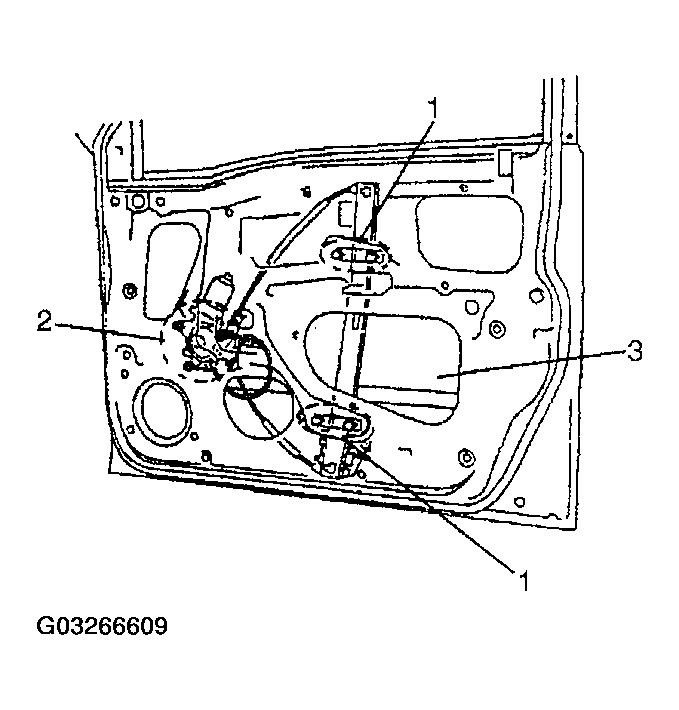

    Fig 1: Removing Front Door Window Regulator
    G03266609Courtesy of SUZUKI OF AMERICA CORP.
