Front Seat Removal And Installation: Installation

Reverse removal procedure to install front seat, noting the following points.

• Torque to specifications as shown in the figure.

  Tightening torque

  1. Front seat mounting bolt (a):  35 N.m (3.5 kg-m, 25.5 lb-ft)

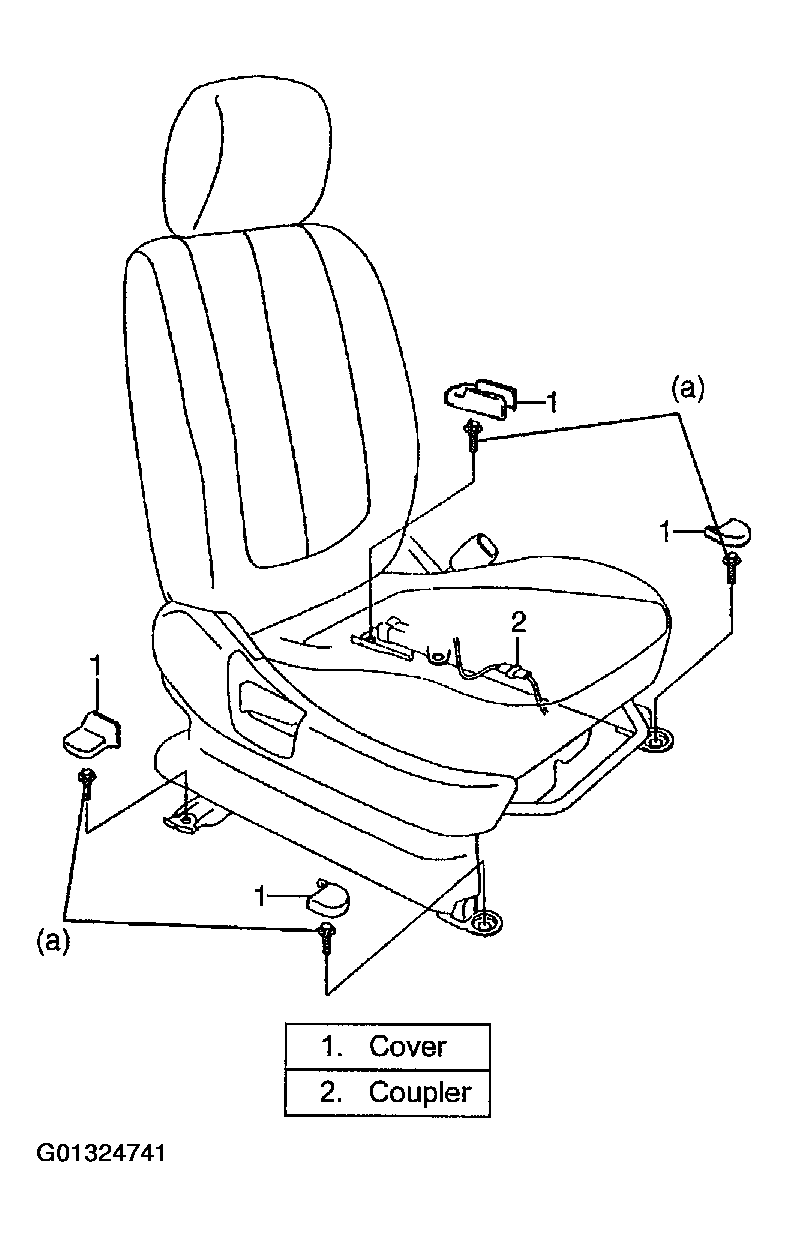

  Fig 1: Removing/Installing Front Seat

  Courtesy of SUZUKI OF AMERICA CORP.
