Clutch Pedal Position (CPP) Switch (For Cruise Control) Removal And Installation: Removal

  1. Disconnect connector of CPP switch (for cruise control) (1) with ignition switch OFF.
  2. Remove CPP switch (for cruise control) (1) from pedal bracket.

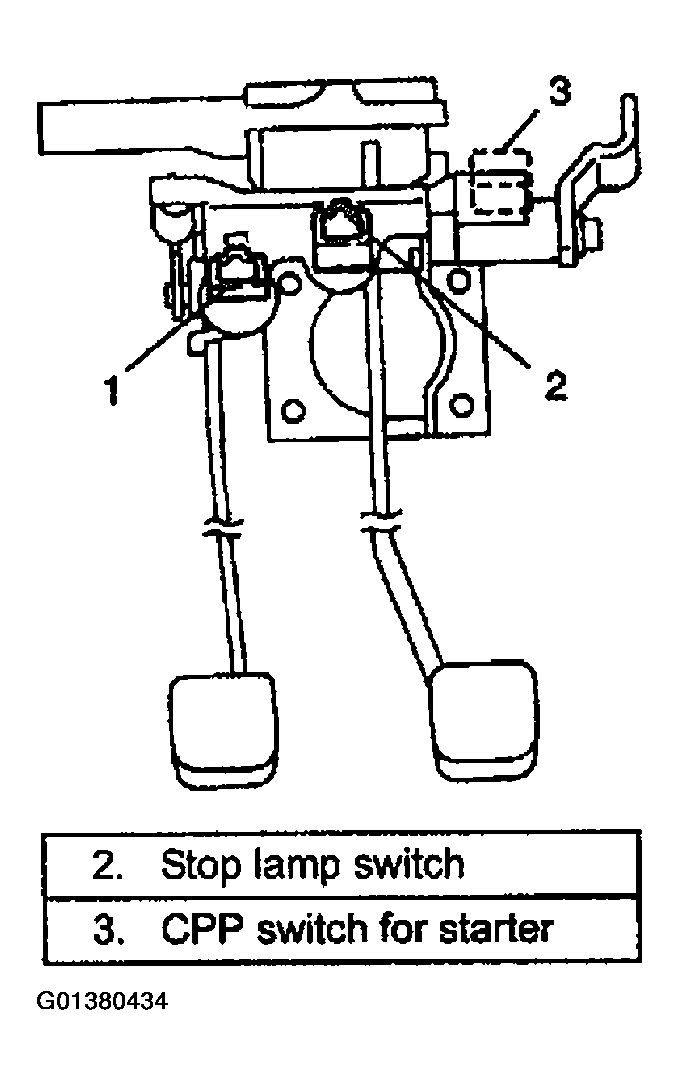

    Fig 1: Identifying CPP Switch
    G01380434Courtesy of SUZUKI OF AMERICA CORP.
