Resistance Check

  1. Disconnect cruise control module coupler (E132) (1) from cruise control module with ignition switch OFF.
    CAUTION: Never touch terminals of cruise control module itself or connect voltmeter or ohmmeter.
    Fig 1: Checking Resistance Of Control Module Connector
    G01380428Courtesy of SUZUKI OF AMERICA CORP.
  2. Check resistance between each pair of terminals of disconnected coupler (1) as listed in the following table.

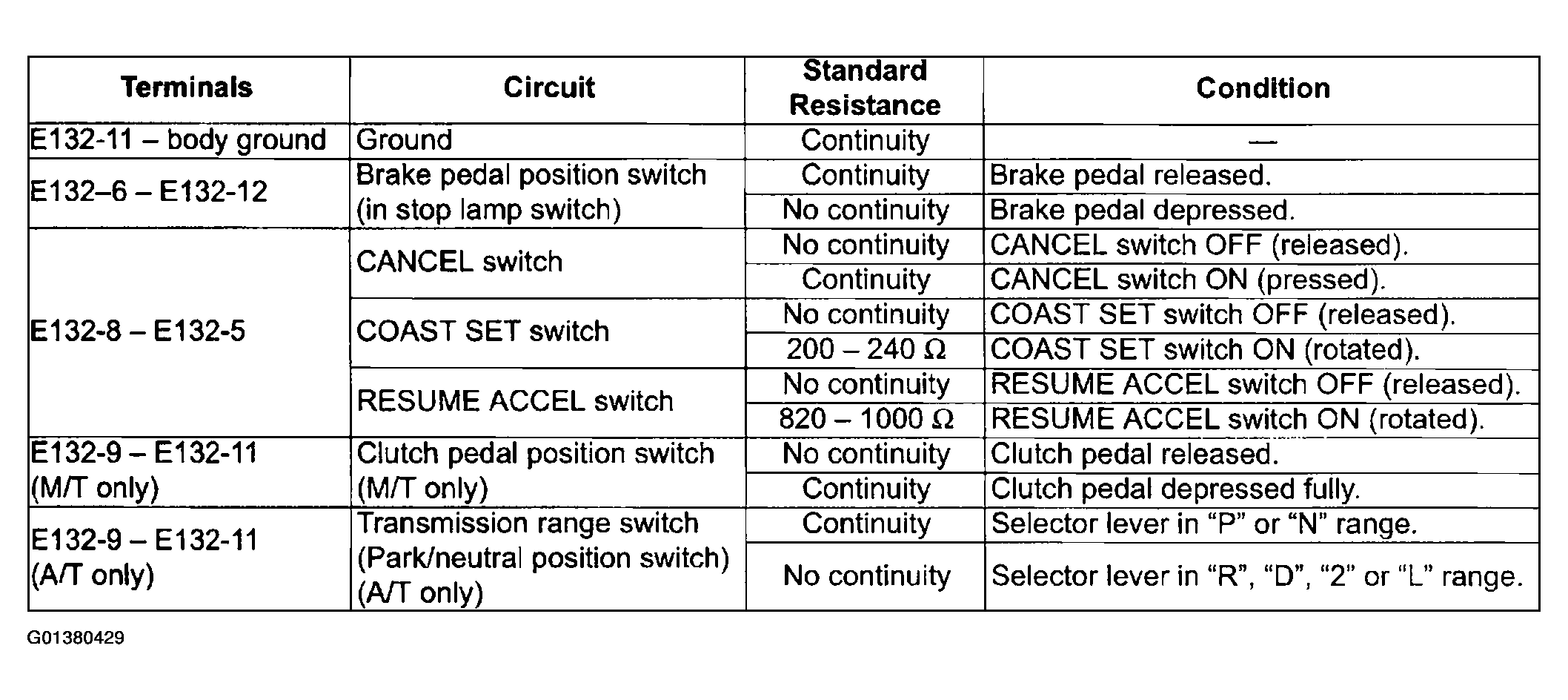

    Fig 2: Checking Resistance Between Each Pair Of Terminals Table
    G01380429Courtesy of SUZUKI OF AMERICA CORP.
