Change Mechanism

The same select pattern shift lever is used as floor type and frequently used "N" and "D" ranges are made selectable freely.

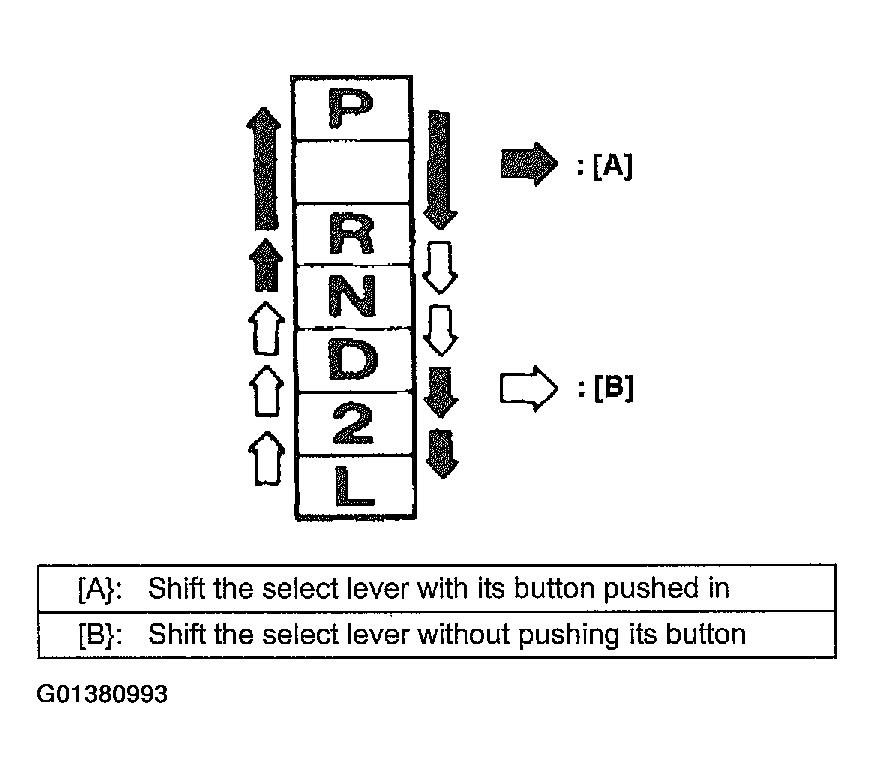

Fig 1: Identifying Change Mechanism
G01380993Courtesy of SUZUKI OF AMERICA CORP.
