Rear Differential Symptom Diagnosis

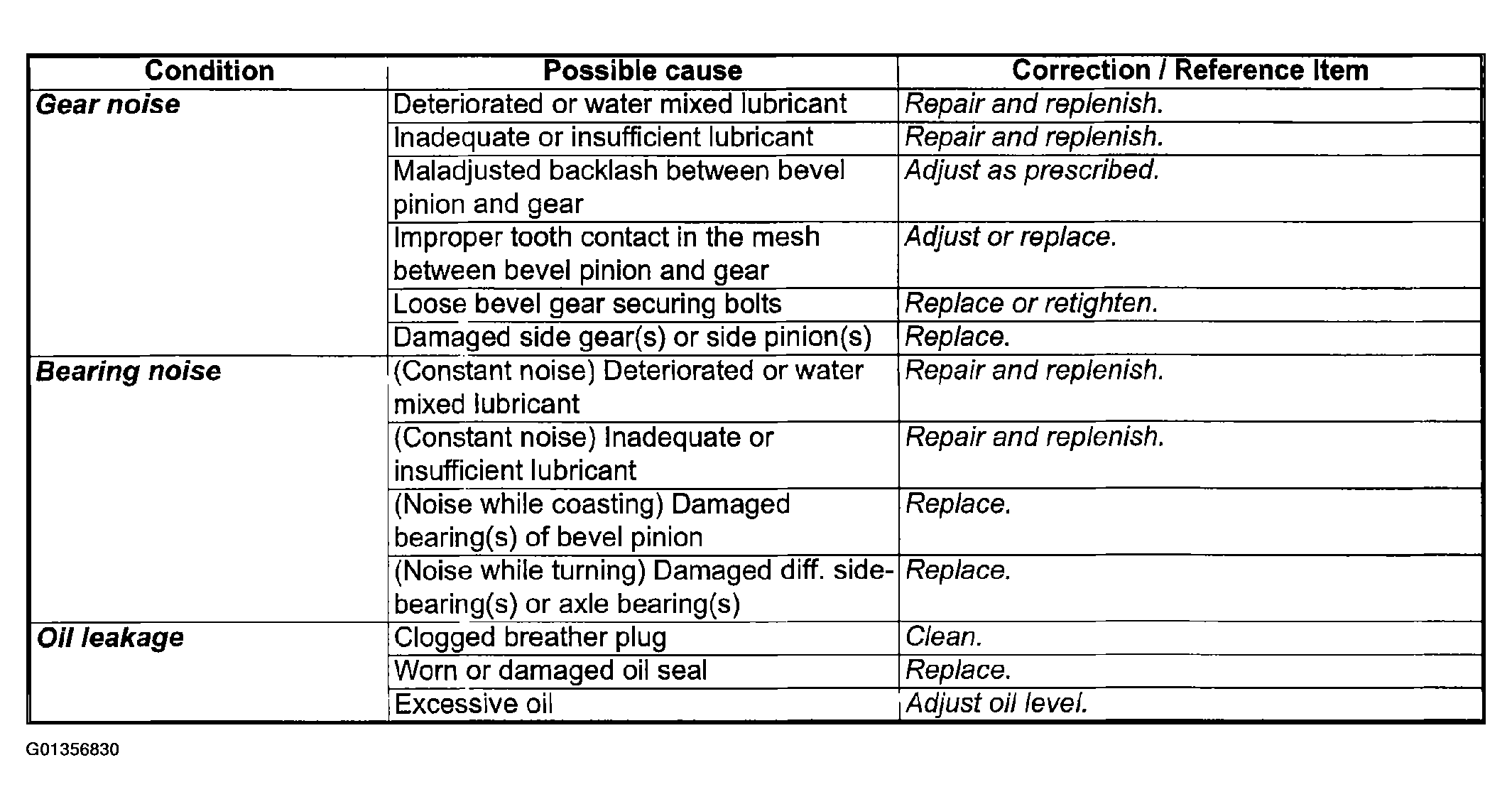

Fig 1: Rear Differential Symptom Diagnosis Chart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
