Drive Bevel Pinion

To engage bevel pinion and gear correctly, it is prerequired to install bevel pinion to differential carrier properly by using adjusting shim as described below. Shown in the figure of Step  4 are relative positions of bevel pinion, differential carrier and mounting dummy.

  1. Install bevel pinion dummy with bearings into differential carrier and tighten flange nut (1) so that specified bearing preload is obtained.
    NOTE:
    • This installation requires universal joint flange not equipped with groove on flange periphery.
    • This installation requires no spacer or oil seal.
    • Before taking measurement with spring balance (2) or torque wrench (3), check for rotation by hand and apply small amount of oil to bearings.

    Special tool

    (A):  09922-75222

    (B):  09926-78311

    Pinion bearing preload

    (a):  9.0 - 17.0 kg-cm (7.8 - 14.7 lb-in.)

    Spring measure reading:  1.8-3.4 kg (4.0 - 7.5 lb)

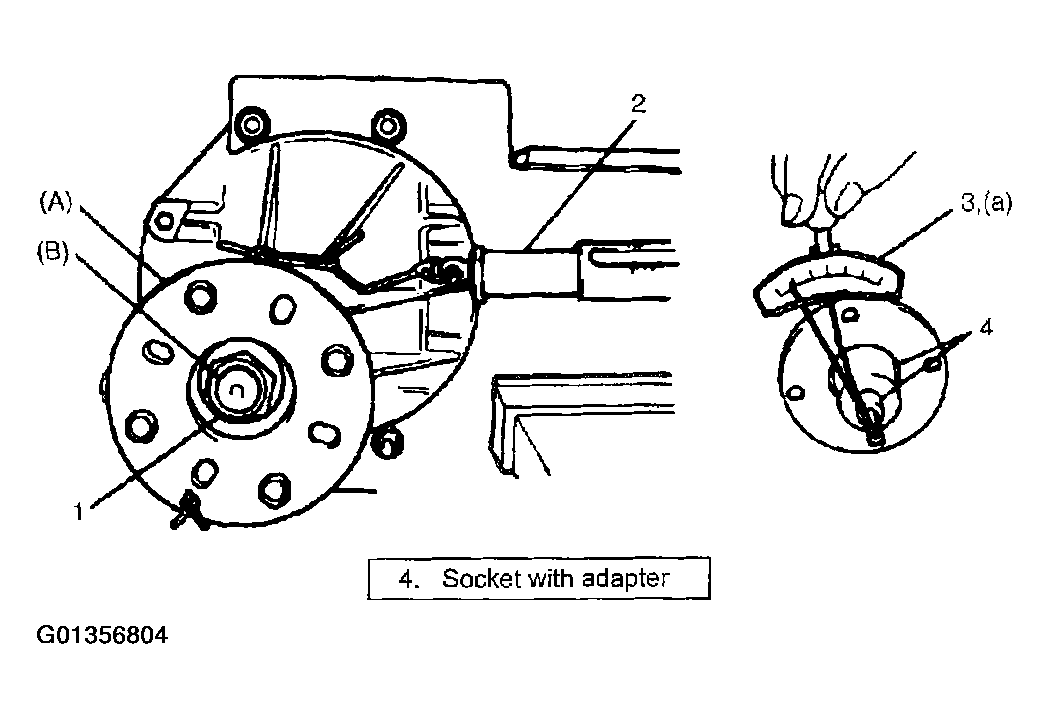

    Fig 1: Checking Bearing Preload
    G01356804Courtesy of SUZUKI OF AMERICA CORP.
  2. Set dial gauge to bevel pinion mounting dummy and make 0 (zero) adjustment on surface plate.
    NOTE:
    • When setting dial gauge to mounting dummy, tighten screw lightly. Be careful not to overtighten it, which will cause damage to dial gauge.
    • With dial gauge set, turn dummy back and force by hand a couple of times and attain accurate 0 (zero) adjustment.
    • It is desirable that short pointer indicates beyond 2 mm when long one is at 0 (zero).

    Special tool

    (C):  09926-78311

    (D):  09900-20606

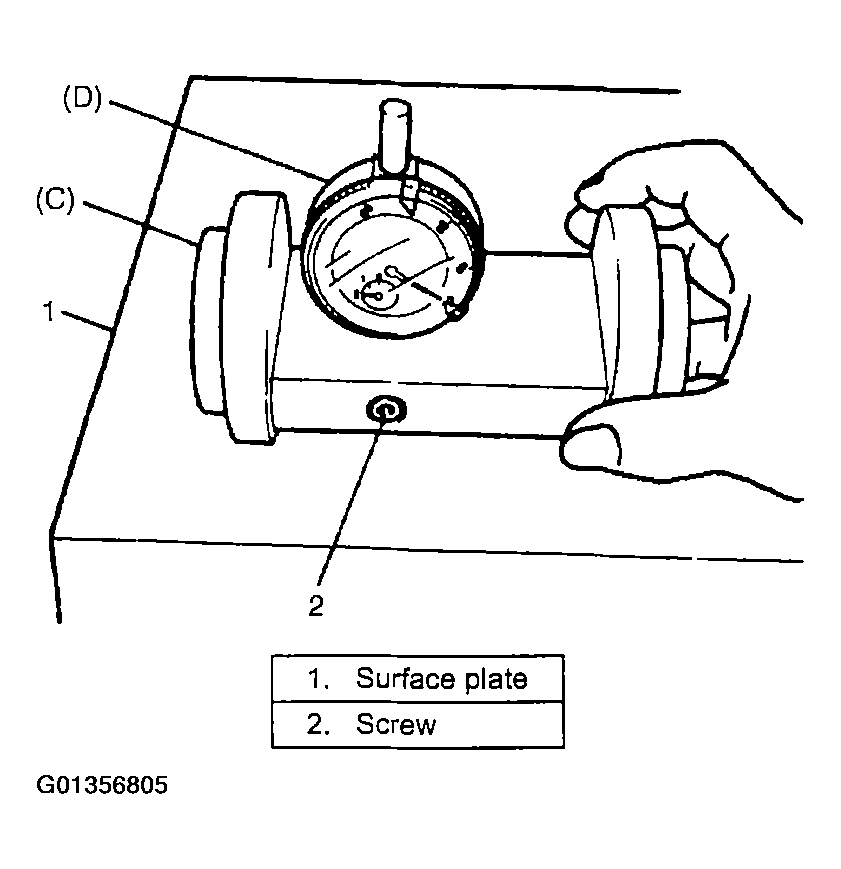

    Fig 2: Making 0 (Zero) Adjustment To Bevel Pinion Mounting Dummy On Surface Plate
    G01356805Courtesy of SUZUKI OF AMERICA CORP.
  3. Place zero-adjusted mounting dummy and dial gauge set on pinion dummy and take measurement between zero position and extended dial gauge measuring tip.
    NOTE:
    • Repeat turning back and force of dummy and measure distance as far as top surface of pinion dummy accurately.
    • When dial gauge measuring tip extends from 0 (zero) position, pointer turns counterclockwise.
    • Measured value may exceed 1 mm. Therefore, it is also necessary to know reading of short pointer.

    Special tool

    (C):  09926-78311

    (D):  09900-20606

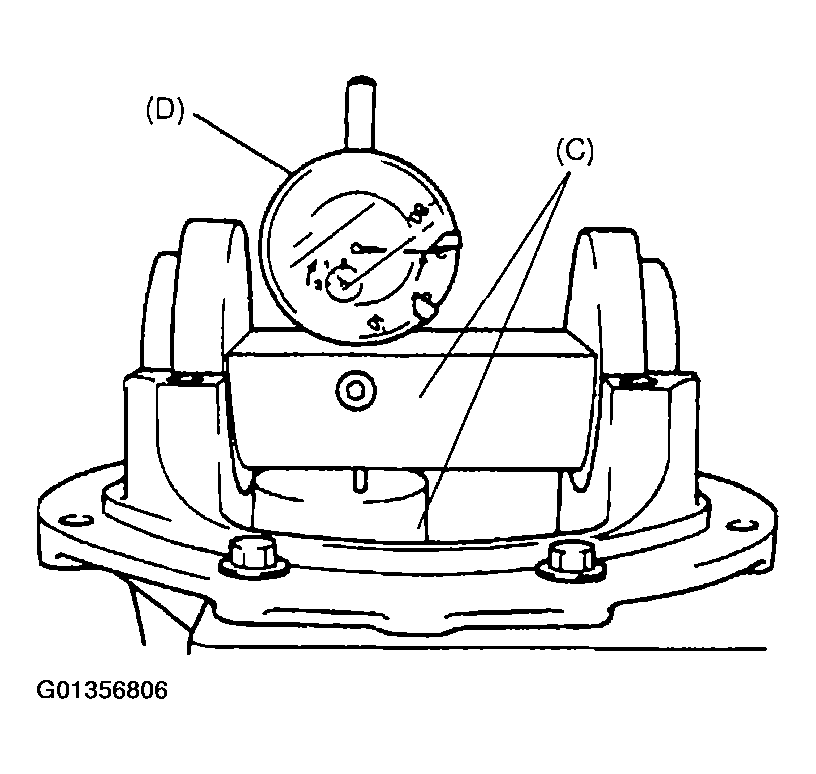

    Fig 3: Using Pinion Mounting Dummy To Measure Between Zero Position & Extended Dial Gauge Measuring Tip
    G01356806Courtesy of SUZUKI OF AMERICA CORP.
  4. Obtain adjusting shim thickness by using measured value by dial gauge (which represents "c" in figure) in the following equation.

    Necessary shim Dial gauge measured

    thickness "e" = value "c"

    Special tool

    (A):  09900-20606

    (B):  09926-78311

    (C):  09922-75222

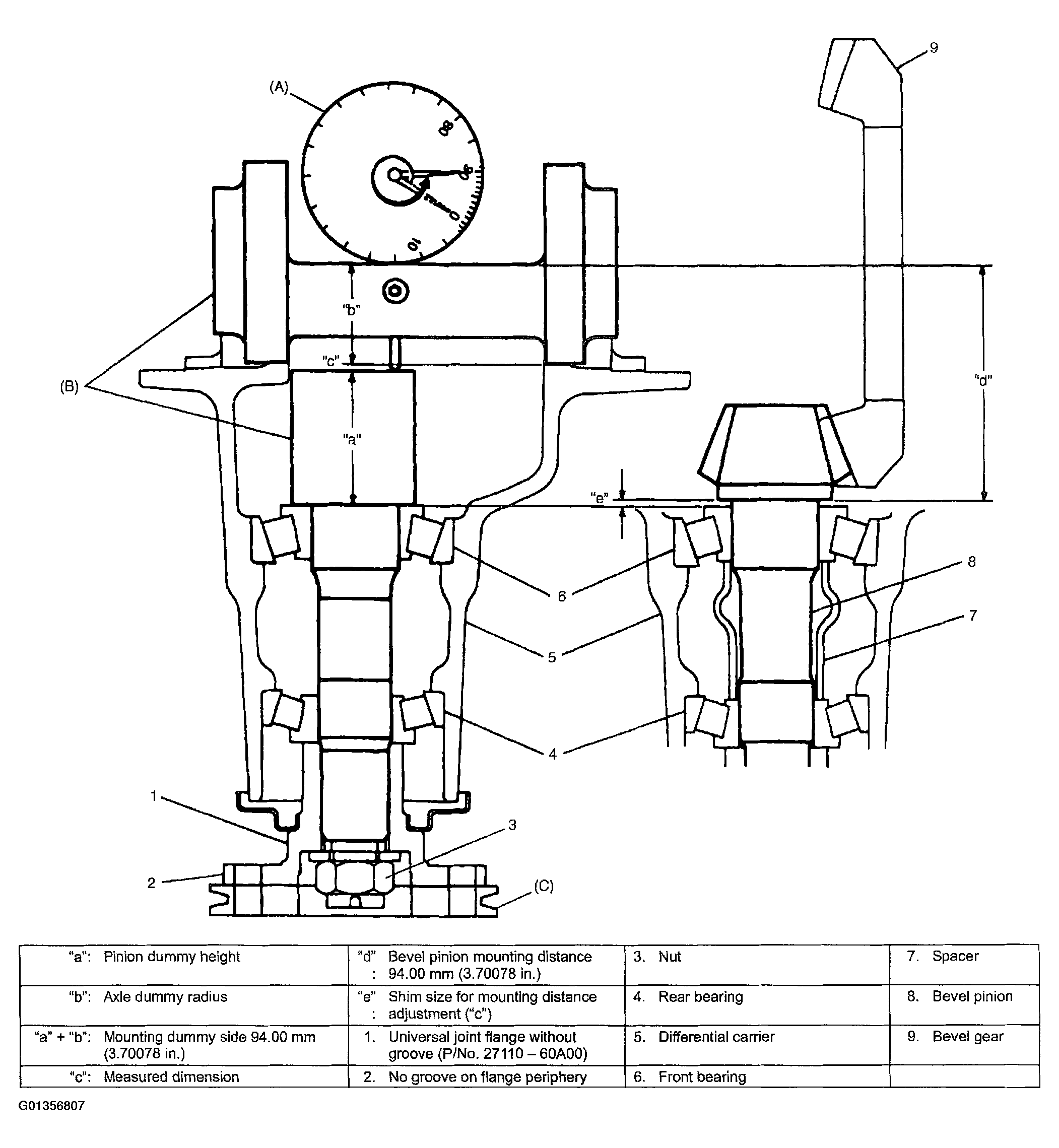

    Fig 4: Measuring For Pinion Adjusting Shim
    G01356807Courtesy of SUZUKI OF AMERICA CORP.
  5. Select adjusting shim(s) (2) closest to calculated value from among the following available sizes and put it in place and then press-fit front bearing (1).

    Special tool

    (E):  09925-18010

    (F):  09927-66010

    Available shim thickness:  1.12, 1.15, 1.18, 1.21, 1.24, 1.27, 1.30 and 0.3 mm (0.044, 0.045, 0.046, 0.048 0.049, 0.050, 0.051 and 0.012 in.)

    Fig 5: Pressing Adjusting Shim & Bearing On Pinion
    G01356808Courtesy of SUZUKI OF AMERICA CORP.
  6. With new pinion spacer (3) inserted as shown, install rear bearing (5) to differential carrier (4).
    NOTE:
    • Make sure to use new spacer for reinstallation.
    • Apply oil to bearings.

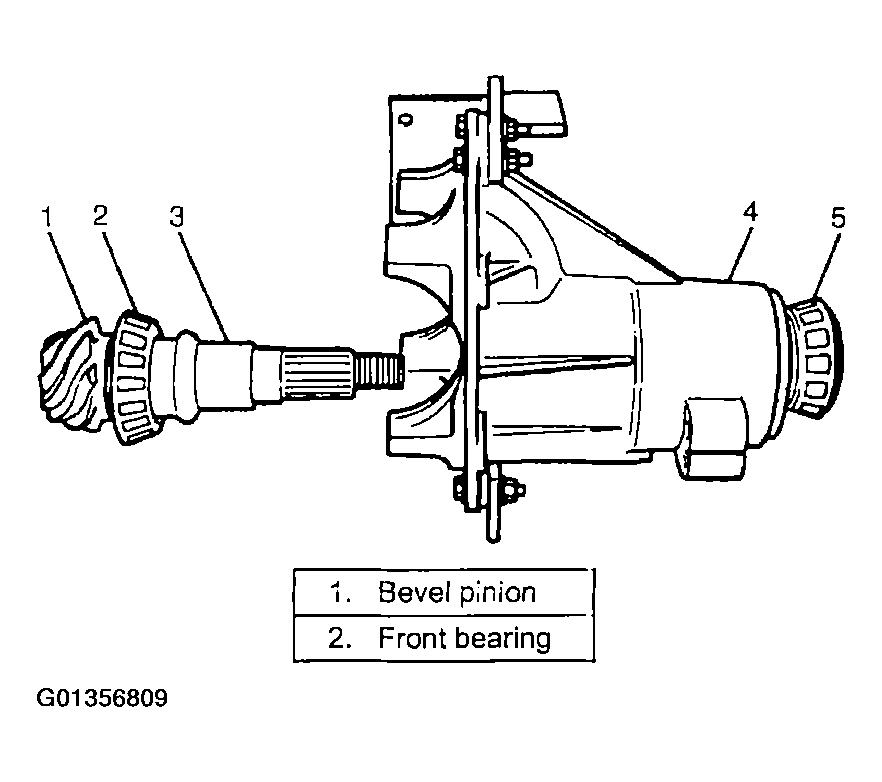

    Fig 6: Installing Pinion Into Differential Carrier
    G01356809Courtesy of SUZUKI OF AMERICA CORP.
  7. Using special tool and plastic hammer drive oil seal (2) into differential carrier (1) till it becomes flush with carrier end. Then apply grease to oil seal lip.

    Special tool

    (G):  09951-18210

    "A":  Grease 99000-25010

    Fig 7: Installing Seal Into Differential Carrier
    G01356810Courtesy of SUZUKI OF AMERICA CORP.
  8. While tightening flange nut gradually with flange holder (special tool) and power wrench (4-10 magnification) (1), set preload of pinion to specification.
    NOTE:
    • Before taking measurement with spring balance (3) or torque wrench (4), check for smooth rotation by hand.
    • Bearing preload can be measured roughly by pinion rotating angle which is due to arm weight of flange holder installed in flange.
    • Be sure to tighten gradually and carefully till specified starting torque is obtained. Turning back overtightened flange nuts should be avoided.

    Pinion bearing preload:  9.0 - 17.0 kg-cm (7.8 -14.7 lb-in.)

    Spring measure reading:  1.8-3.4 kg (4.0-7.5 lb)

    Special tool

    (A):  09922-75222

    (H):  09922-66020

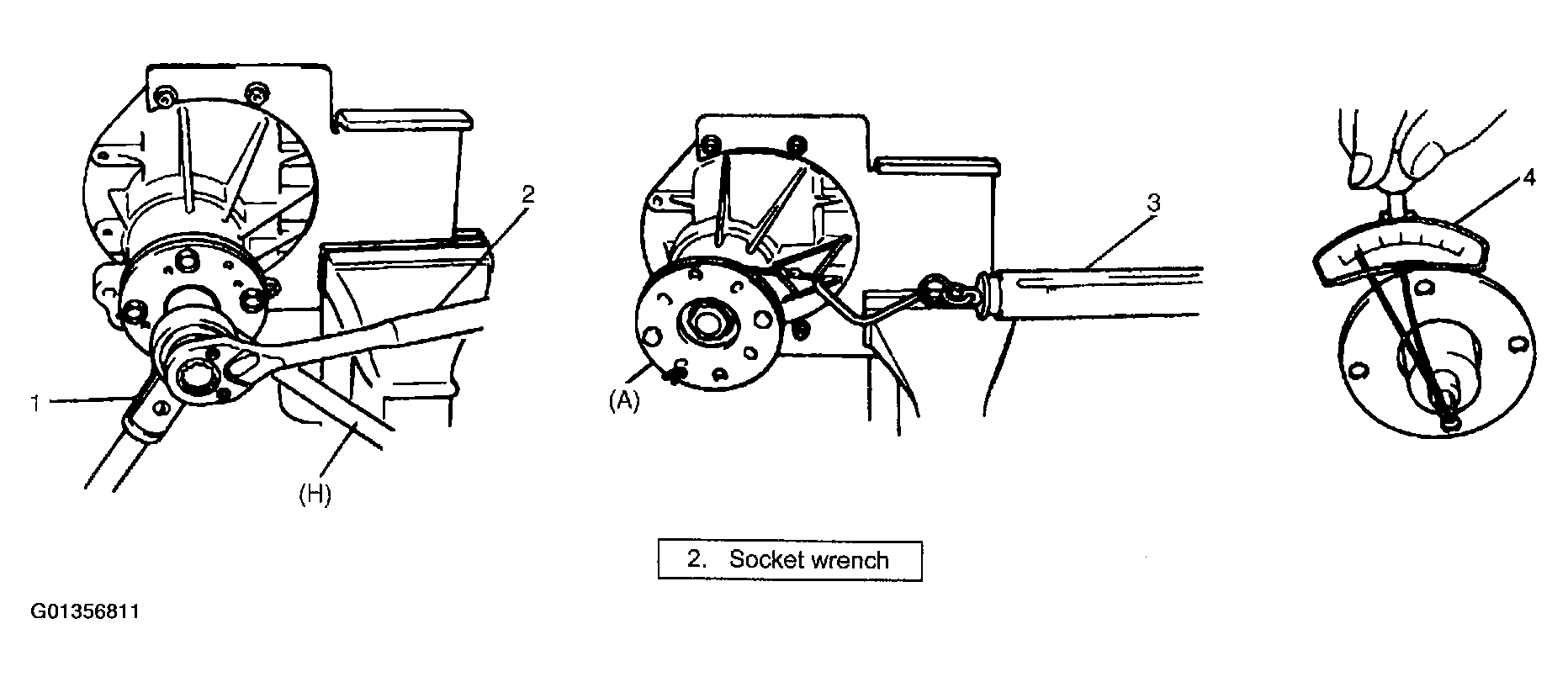

    Fig 8: Tightening Flange Nut To Set Bearing Preload
    G01356811Courtesy of SUZUKI OF AMERICA CORP.
