Clutch Master Cylinder Disassembly & Assembly: Assembly

Apply brake fluid to inside of piston assembly and cylinder body.
Install piston assembly into cylinder.

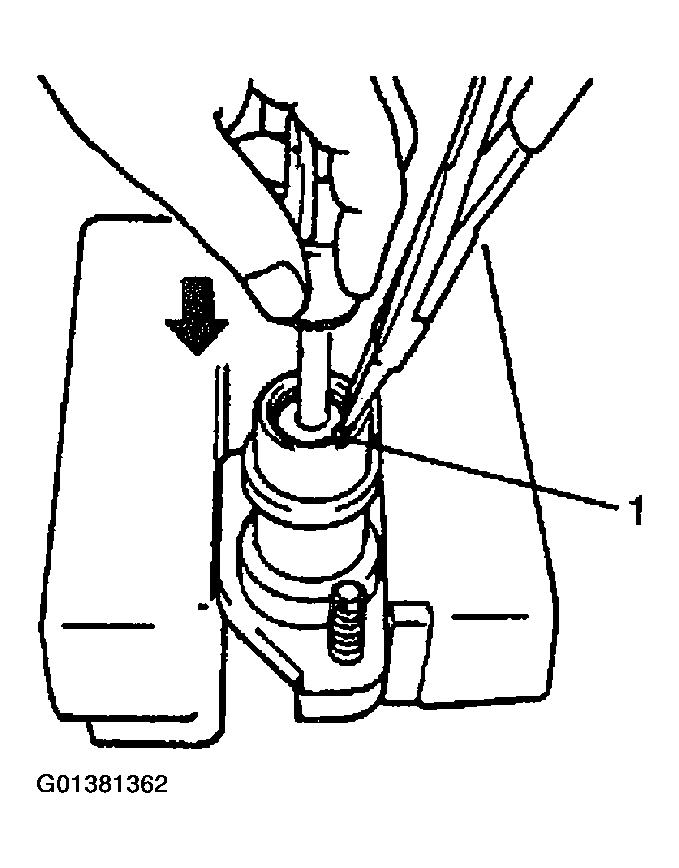

With piston pushed down, install circlip (1) as shown. And install boot.

Fig 1: Assembling Clutch Master Cylinder
Courtesy of SUZUKI OF AMERICA CORP.
Tighten lock nut to specified torque.
Tightening torque

Clevis lock nut (a): 10 N-m (1.0 kg-m, 7.5 Lb-ft)

Fig 2: Identifying Master Cylinder Push Rod / Clevis Assembly
Courtesy of SUZUKI OF AMERICA CORP.
For installation of master cylinder to vehicle, see CLUTCH MASTER CYLINDER REMOVAL & INSTALLATION .
