Power Mode
WARNING:
This page is about a different variant/trim than selected.

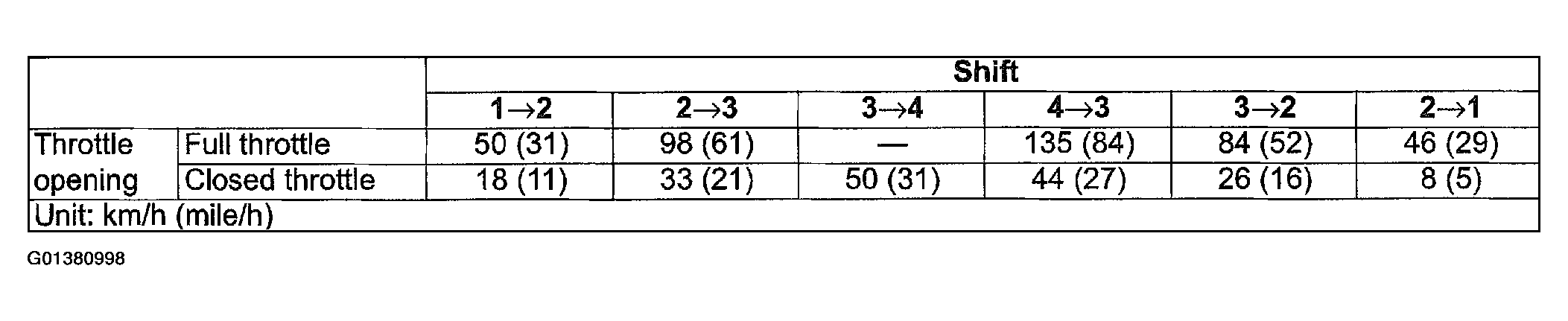

Fig 1: Power Mode Shift Schedule Chart
Courtesy of SUZUKI OF AMERICA CORP.

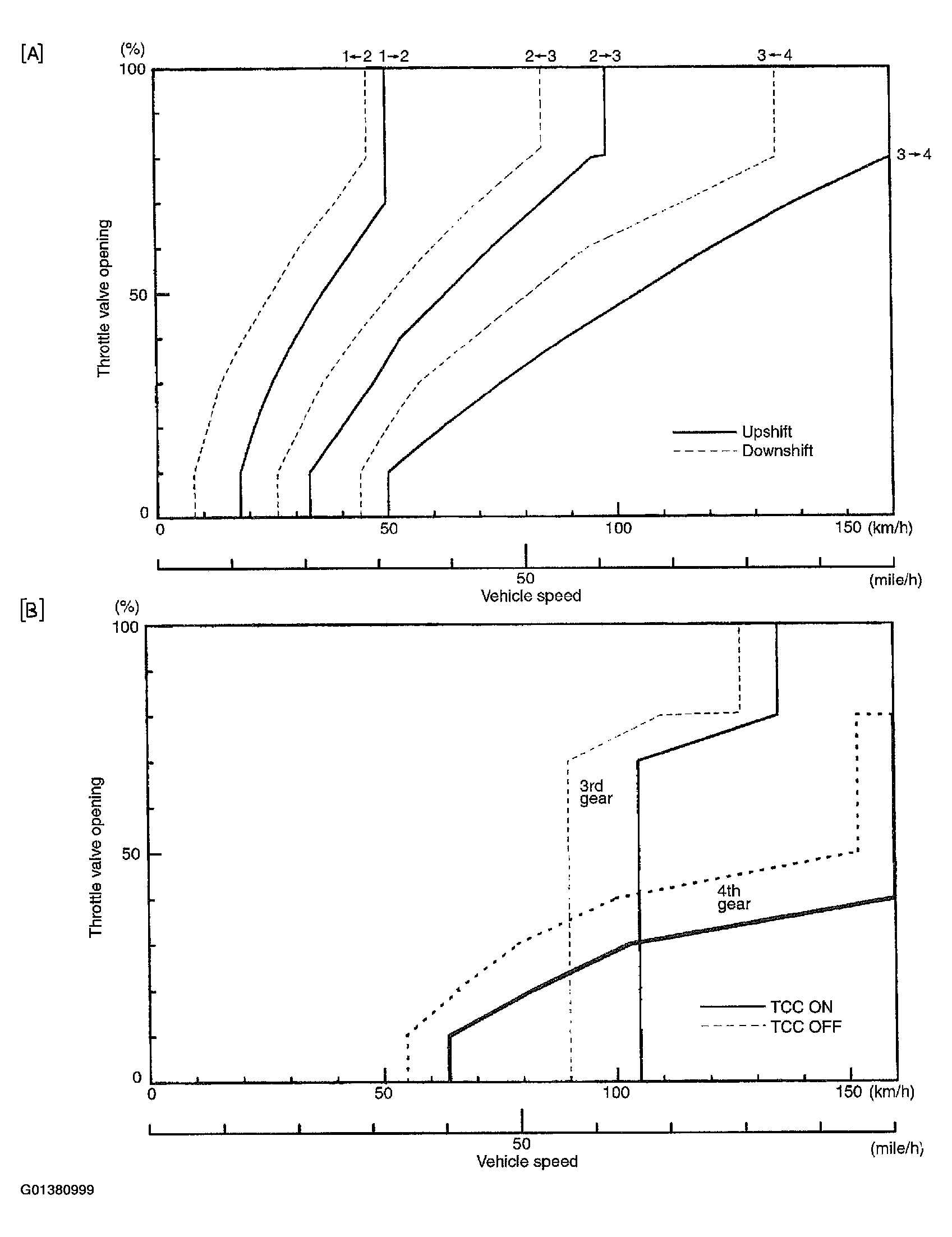

Fig 2: Gear Shift Diagram (A) & TCC Lock-Up Diagram (B) - Power Mode
Courtesy of SUZUKI OF AMERICA CORP.
