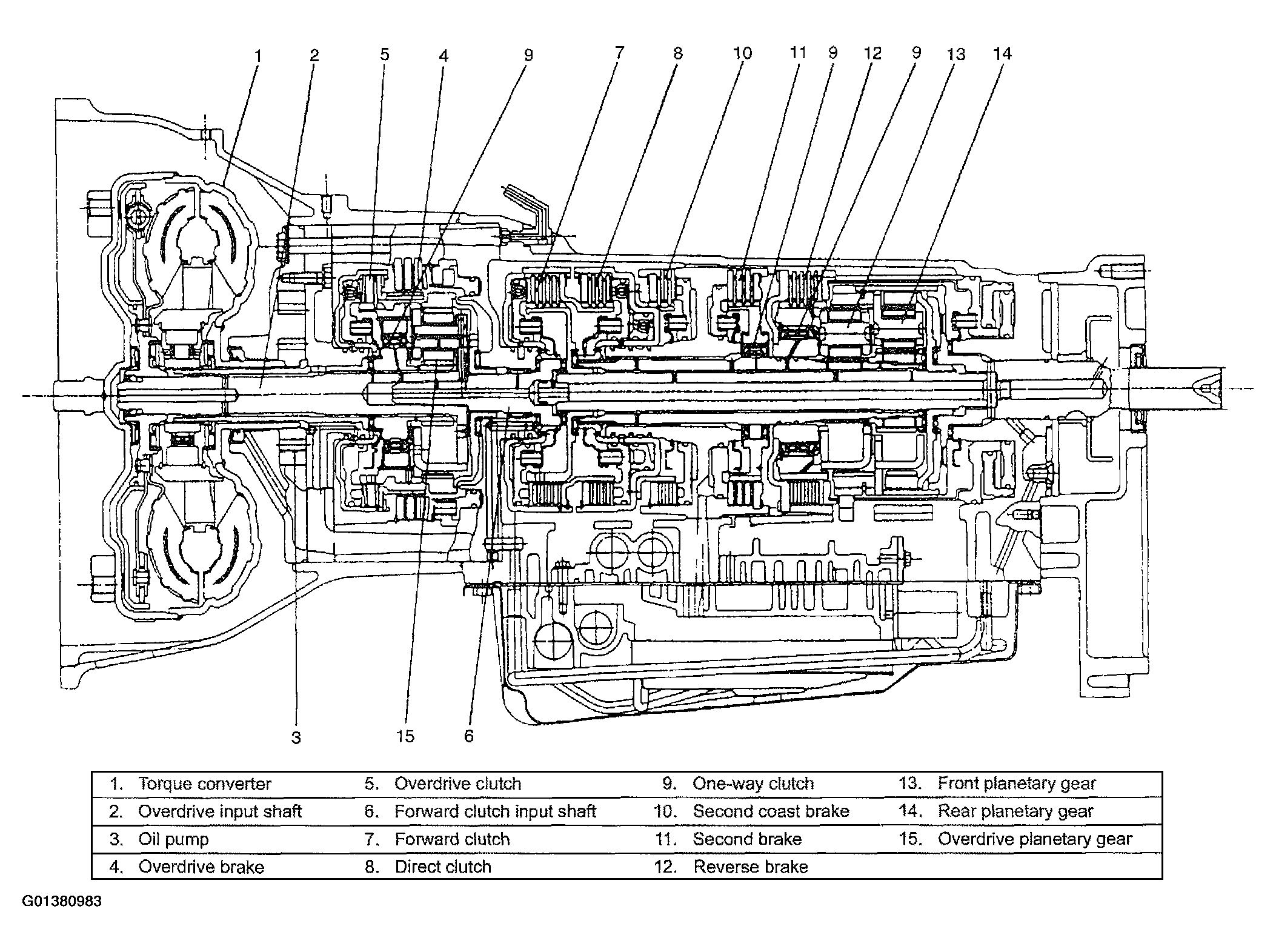

Automatic Transmission Construction
This automatic transmission is a full automatic type with 3-speed plus overdrive (O/D).
The torque converter is a 3-element, 1-step and 2-phase type and is equipped with an electronically controlled lock-up mechanism. The gear shift device consists of 3 sets of planetary gear units, 3 disc type clutches, 4 disc type brakes and 3 one-way clutches. The gear shift is done by selecting one of 6 positions ("P", "R", "N", "D", "2" and "L") by means of the select lever installed on the floor. On the shift knob, there is an overdrive (O/D) cut switch which allows shift-up to the overdrive mode (except at 4L) and shift-down from the overdrive mode. Also, by using the P/N change switch located on the console box, it is possible to select the gear change timing of 2 modes, normal and power.

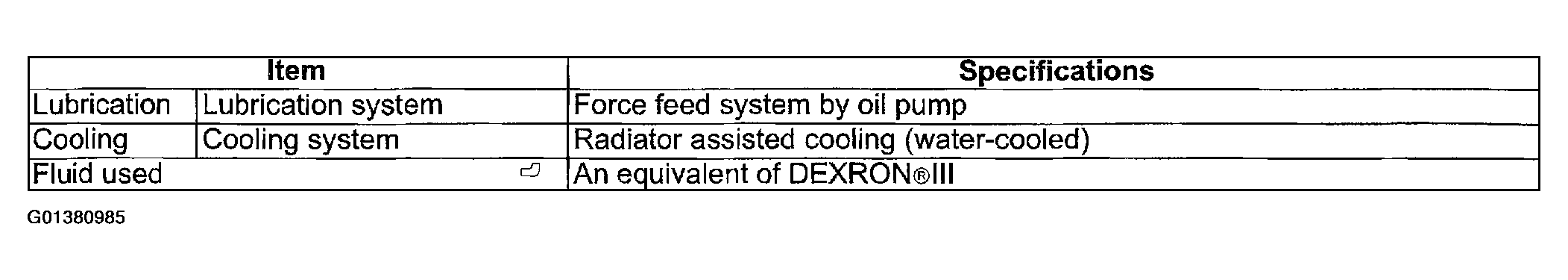

| Item | Specifications | |||
|---|---|---|---|---|
| Torque converter | Type | 3-element, 1-step, 2-phase type (with TCC (lock-up) mechanism) | ||
| Stall torque ratio | 2.0 | |||
| Oil pump | Type | Trochoid type oil pump | ||
| Drive system | Engine driven | |||
| Gear change device | Type | Forward 4-step, reverse 1-step planetary gear type | ||
| Shift position | "P" range | Gear in neutral, output shaft fixed, engine start | ||
| "R" range | Reverse | |||
| "N" range | Gear in neutral, engine start | |||
| "D" range (O/D ON) | Forward 1st ↔ 2nd ↔ 3rd ↔ 4th (O/D) automatic gear change | |||
| "D" range (O/D OFF) | Forward 1st ↔ 2nd ↔ 3rd automatic gear change | |||
| "2" range | (Normal mode) Forward 1st ↔ 2nd ← 3rd automatic gear change (Power mode) Forward 2nd ← 3rd automatic gear change and fixed at 2nd gear |
|||
| "L" range | Forward 1st ← 2nd ← 3rd reduction, and fixed at 1st gear | |||
| Gear ratio | 1st (low gear) | 2.826 | ||
| 2nd (second gear) | 1.493 | |||
| 3rd (top gear) | 1.000 | |||
| 4th (overdrive gear) | 0.689 | |||
| Reverse (reverse gear) | 2.703 | |||
| Control elements | Wet type multi-disc clutch: 3 sets | |||
| Wet type multi-disc brake: 4 sets | ||||
| One-way clutch: 3 sets | ||||
| Transfer | Hi: 1.000, Lo: 1.816 (for 4WD model only) | |||
| Final gear reduction ratio (Differential) | 4.875 | |||
