DTC Troubleshooting

WARNING: This page is about a different variant/trim than selected.

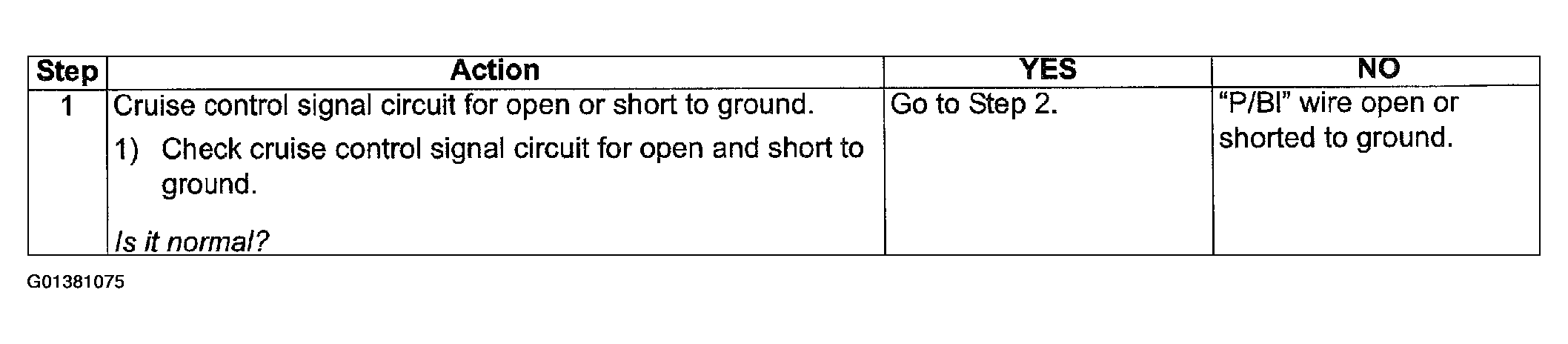

Fig 1: DTC Troubleshooting - DTC P1740 (1 Of 2)
G01381075Courtesy of SUZUKI OF AMERICA CORP.

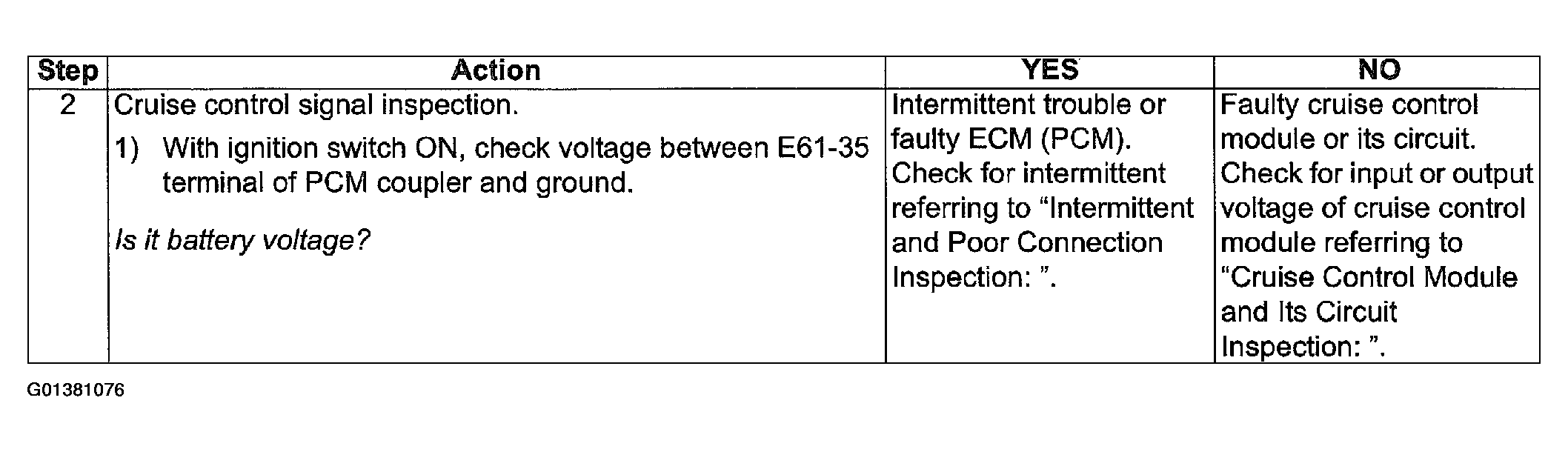

Fig 2: DTC Troubleshooting - DTC P1740 (2 Of 2)
G01381076Courtesy of SUZUKI OF AMERICA CORP.
