DTC Detecting Condition & Trouble Area

WARNING: This page is about a different variant/trim than selected.

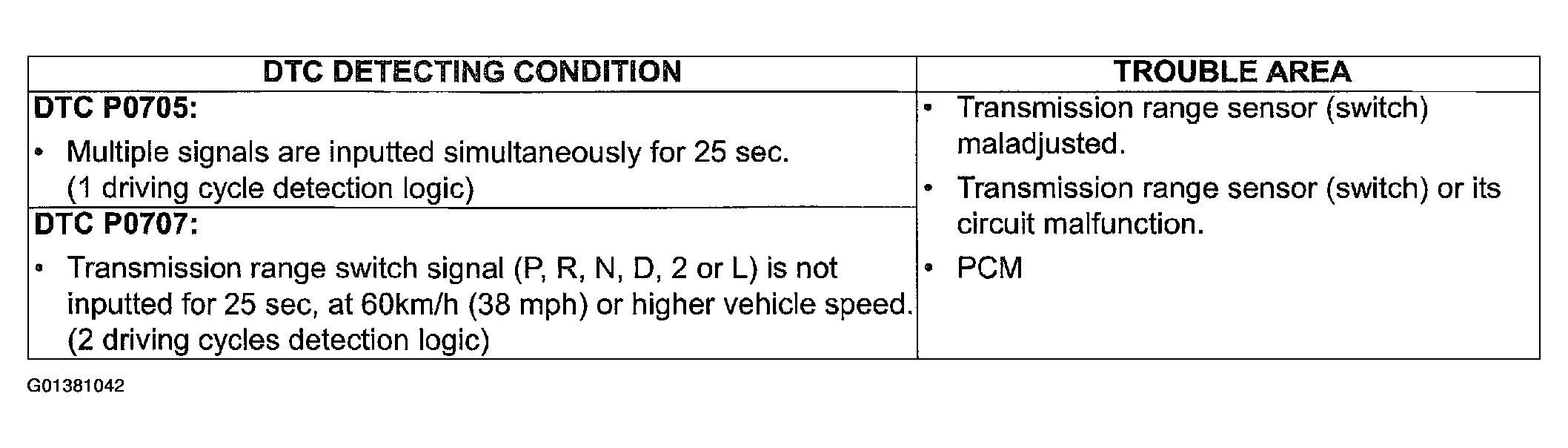

Fig 1: DTC Detecting & Trouble Chart - DTCs P0705 / P0707
G01381042Courtesy of SUZUKI OF AMERICA CORP.
