Anti-Lock Brake System Circuit Diagram: Notes

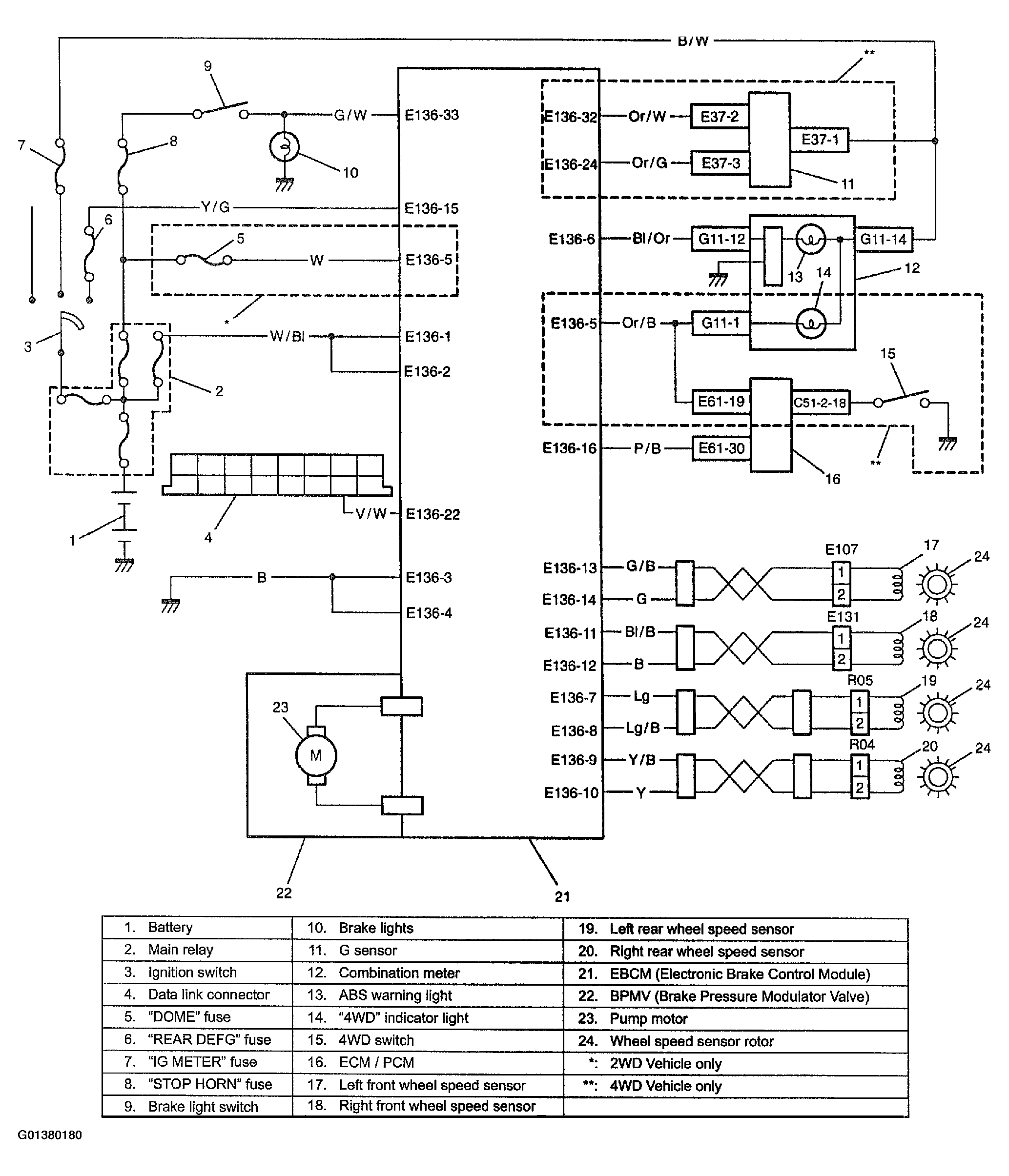

Fig 1: Anti-lock Brake System Schematic Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
