Table 1 For Step 5

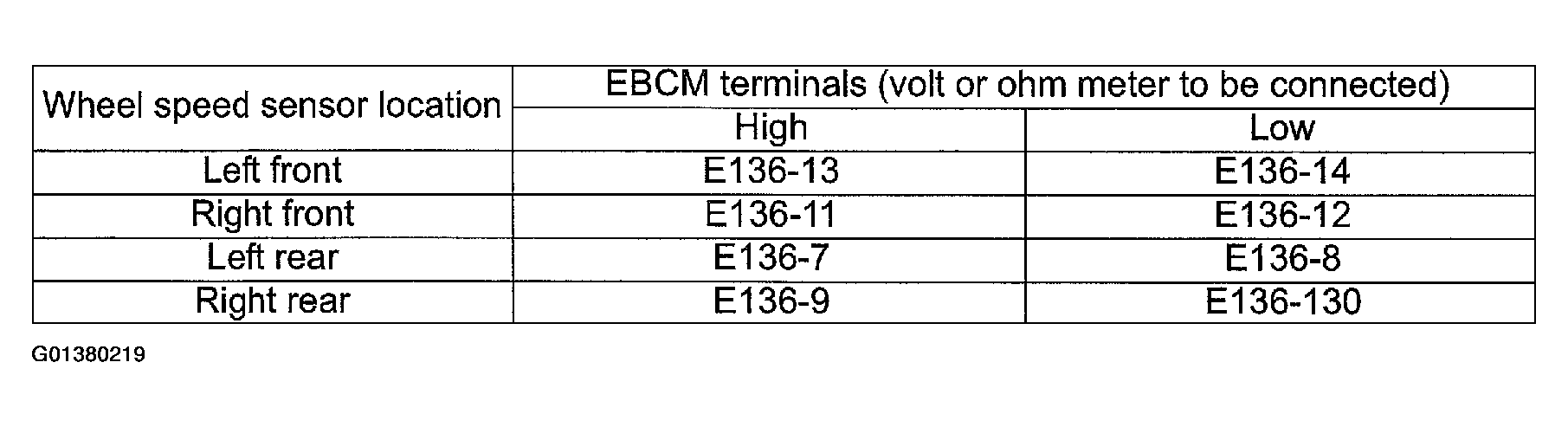

Fig 1: Wheel Speed Sensor Location Chart (For Step 5)
G01380219Courtesy of SUZUKI OF AMERICA CORP.
