Washer Linked Operation
- Disconnect negative cable at battery.
- Disconnect combination switch lead wire coupler.
- Make sure that front wiper switch is at OFF position.

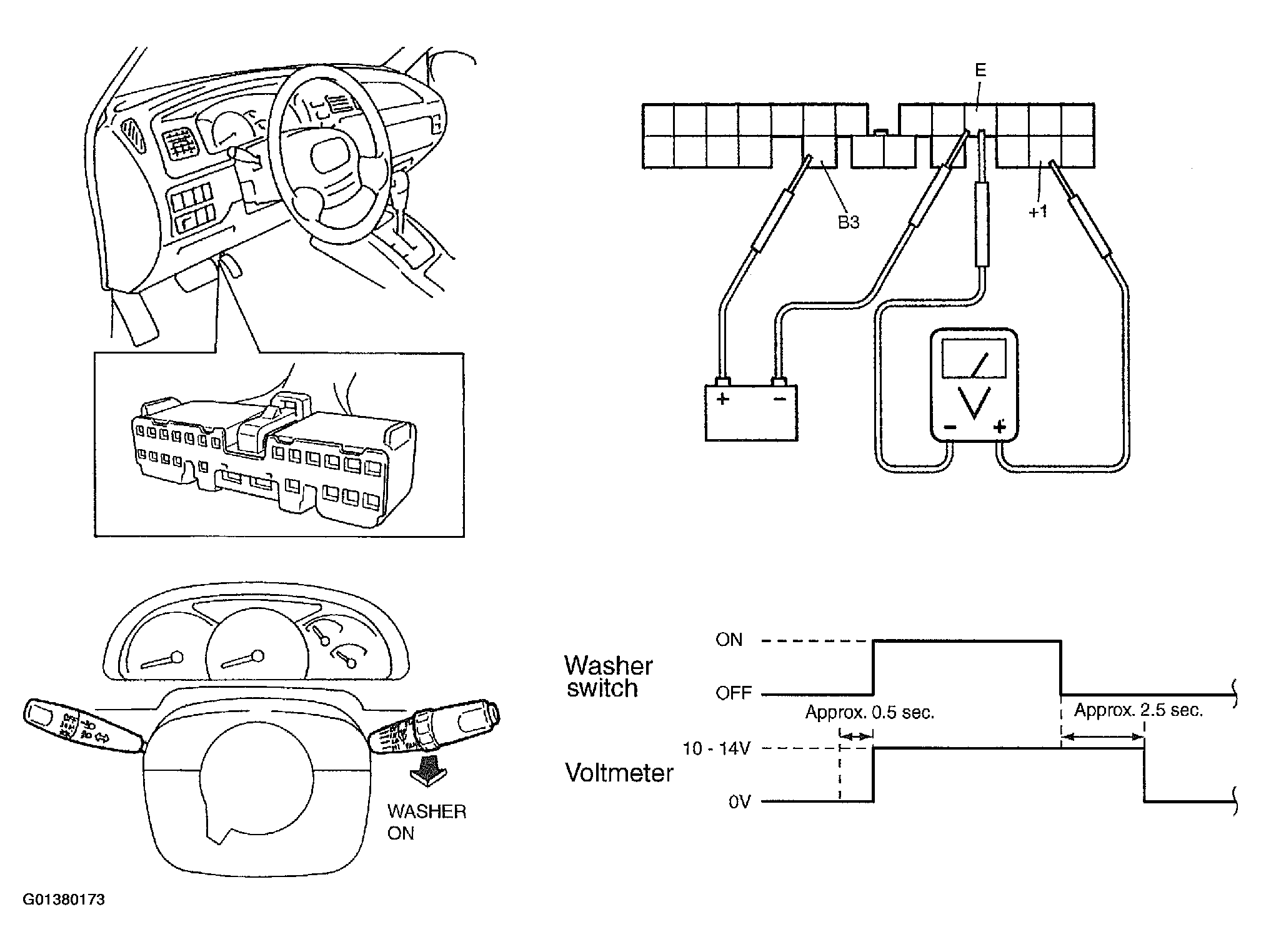

- Connect battery positive terminal to terminal "B3" and battery negative terminal to terminal "E".
- Connect voltmeter positive lead to terminal "+1" and negative lead to terminal "E".
- Push washer switch check that voltage changes as shown in the table.
