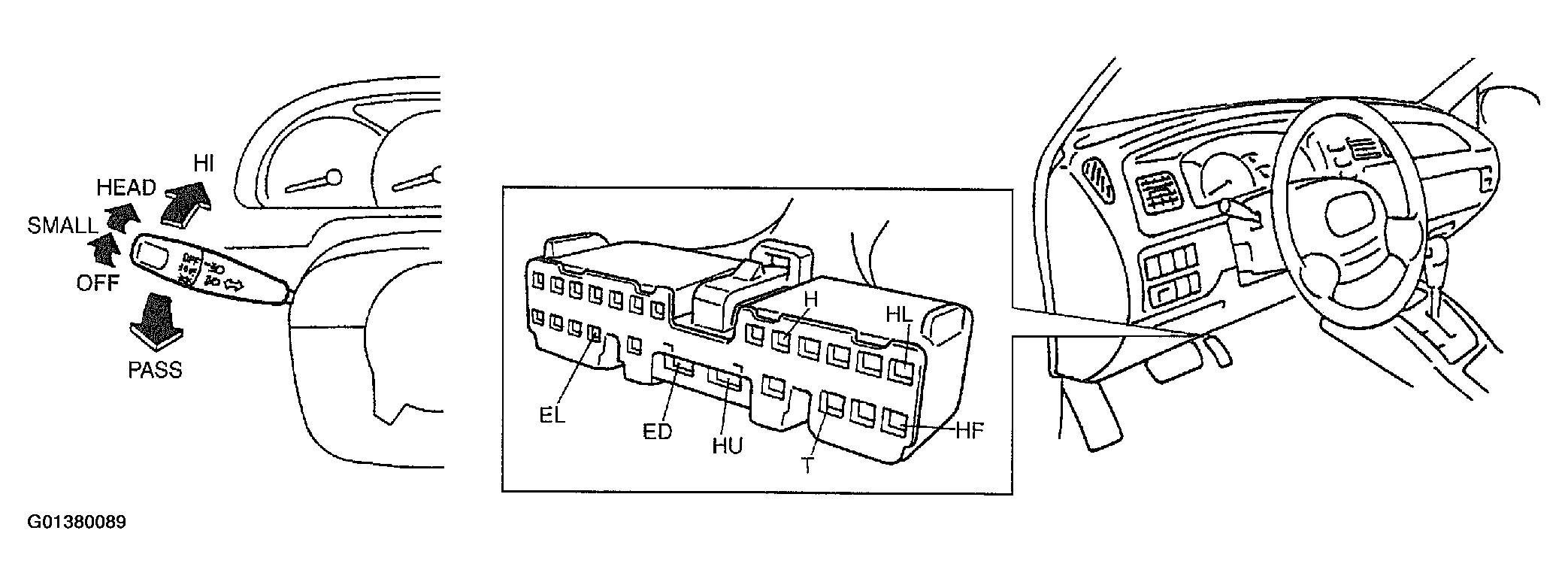

Headlight Switch (In Combination Switch) On-Vehicle Inspection: Notes
- Disconnect negative (-) cable at battery.
- Disconnect combination switch lead wire couplers.
- Use a circuit tester to check the continuity at each switch position. If any continuity is not obtained, replace switch.
Courtesy of SUZUKI OF AMERICA CORP.
