Clutch Pedal Position (CPP) Switch (For Cruise Control) Inspection And Adjustment: Adjustment

With clutch pedal (1) released, adjust switch (2) position so that clearance between end of thread and clutch pedal bracket is within specification.

Clearance between end of thread and clutch pedal bracket

1. "a":  1.5 - 2.0 mm (0.06 - 0.08 in.)

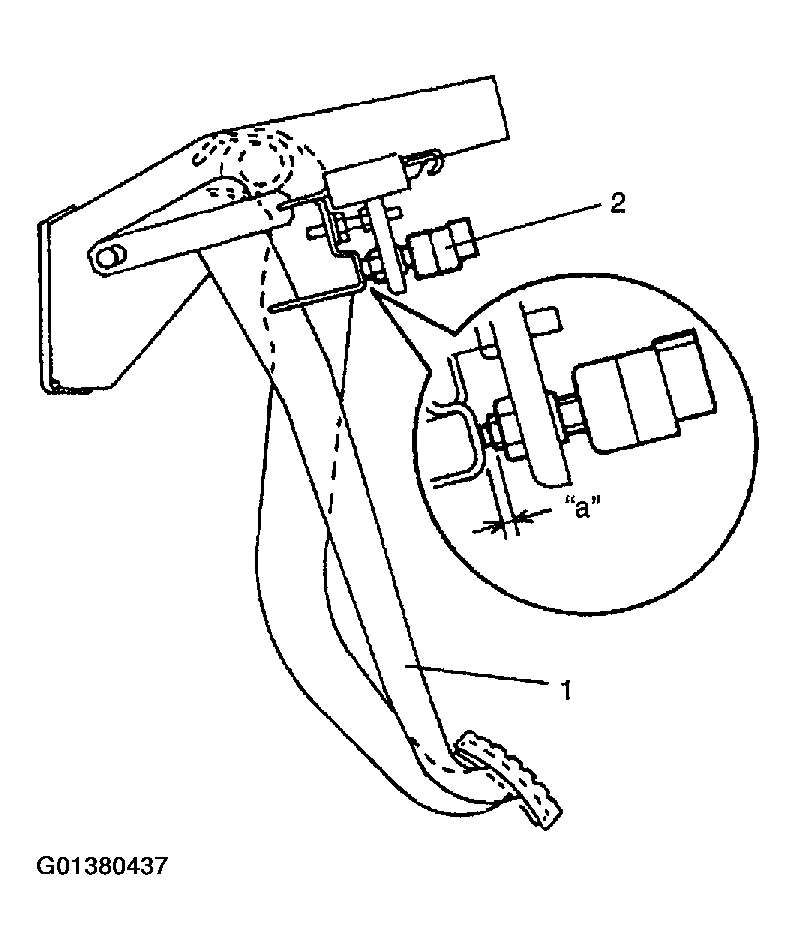

Fig 1: Adjusting Switch Position With Clutch Pedal Released

Courtesy of SUZUKI OF AMERICA CORP.
