Cruise Main Switch Indicator Lamp Circuit Check

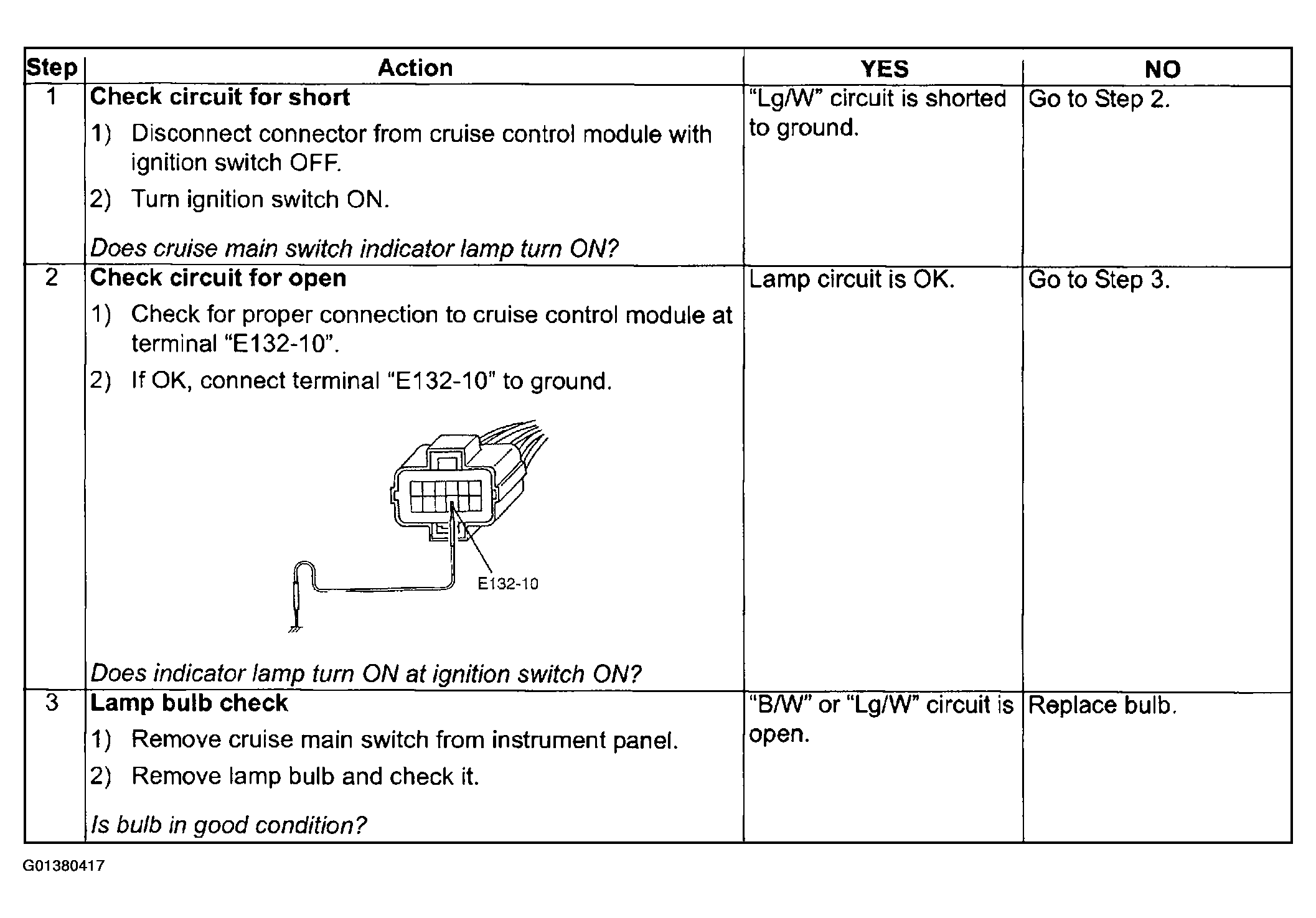

Fig 1: Cruise Main Switch Indicator Lamp Circuit Check Chart
G01380417Courtesy of SUZUKI OF AMERICA CORP.
