Manual Transmission Unit Assembly

NOTE:

Before assembly, wash and inspect each part and apply specified gear oil to sliding faces of bearing and gear.
Use new circlips on shaft for installation. Don't reuse circlips.

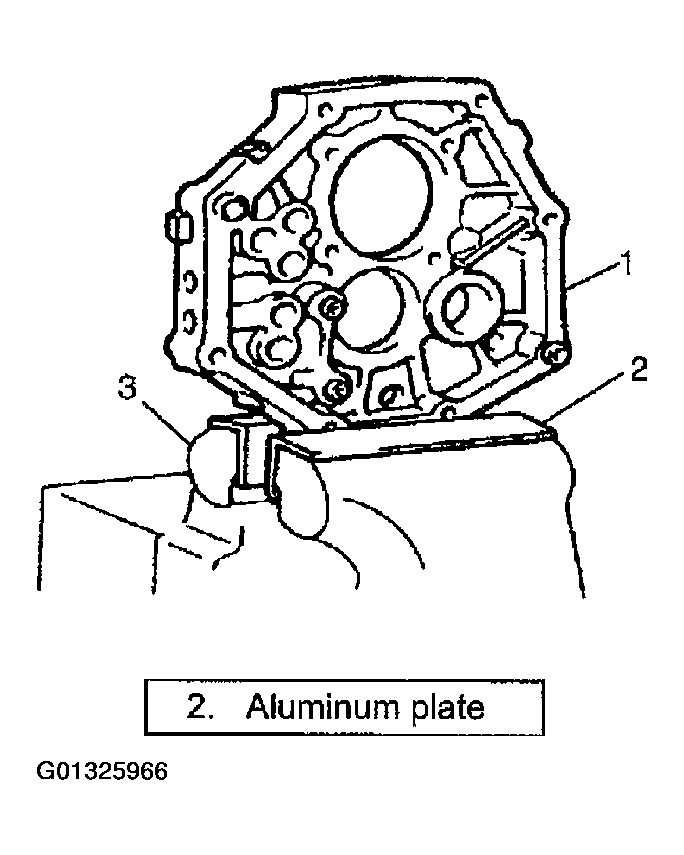

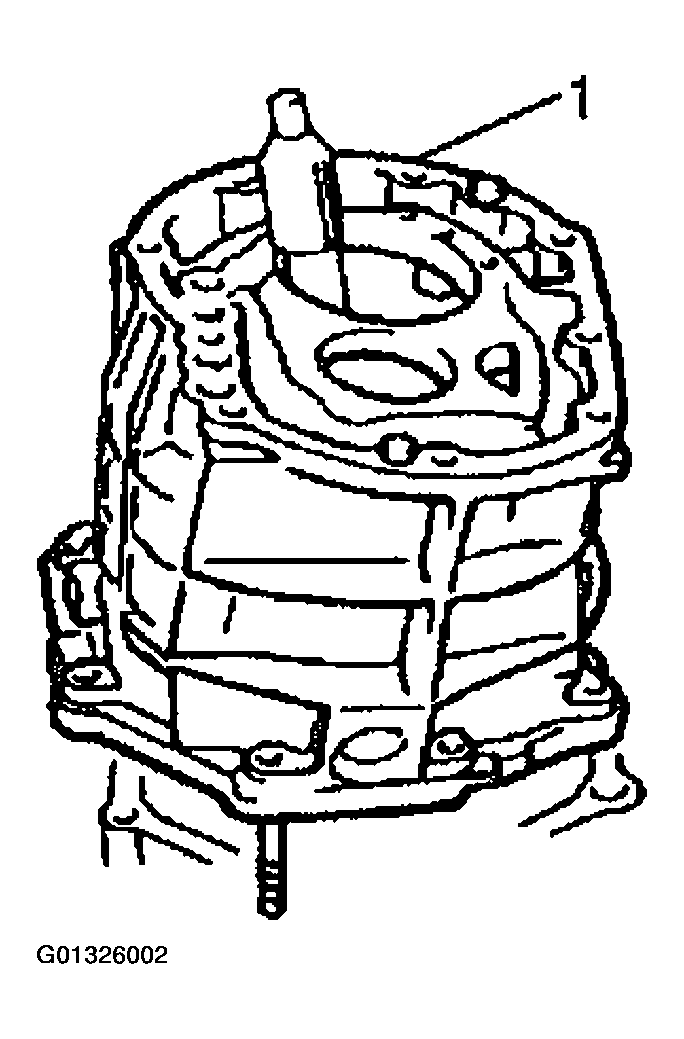

Set intermediate case (1) to vise (3).
Clean mating surfaces of intermediate case both sides, if intermediate case is reused.

Fig 1: Setting Intermediate Case To Vise
Courtesy of SUZUKI OF AMERICA CORP.

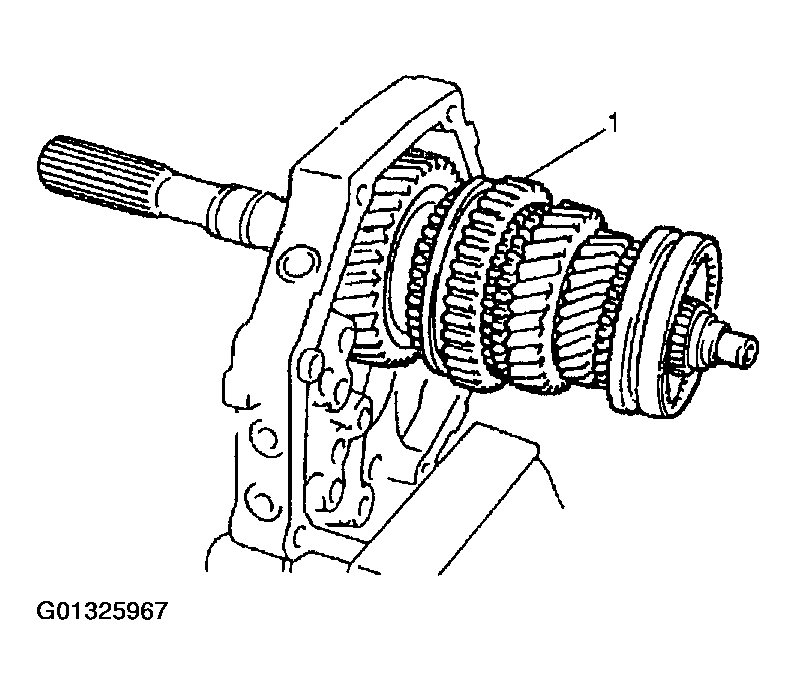

Install main shaft assembly (1) to intermediate case.

Fig 2: Installing Main Shaft Assembly To Intermediate Case
Courtesy of SUZUKI OF AMERICA CORP.

NOTE: When fitting of intermediate case (1) and bearing is tight, tap rear face of intermediate case (1) with plastic hammer lightly as it will cause main shaft assembly (2) to install.

Fig 3: Tapping Rear Face Of Intermediate Case
Courtesy of SUZUKI OF AMERICA CORP.

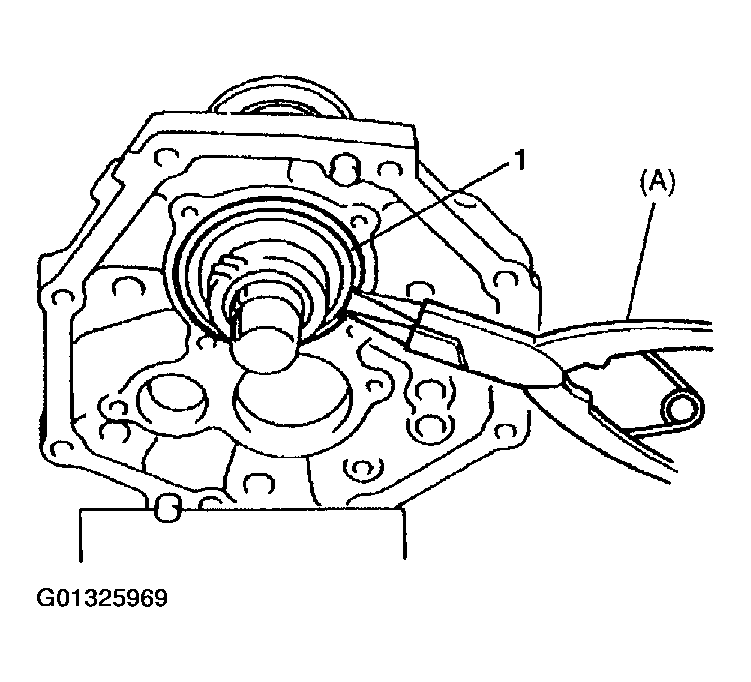

Fix with C-ring (1) by using special tool.
Special tool
1. (A): 09900-06107
Fig 4: Fixing Main Shaft Assembly
Courtesy of SUZUKI OF AMERICA CORP.

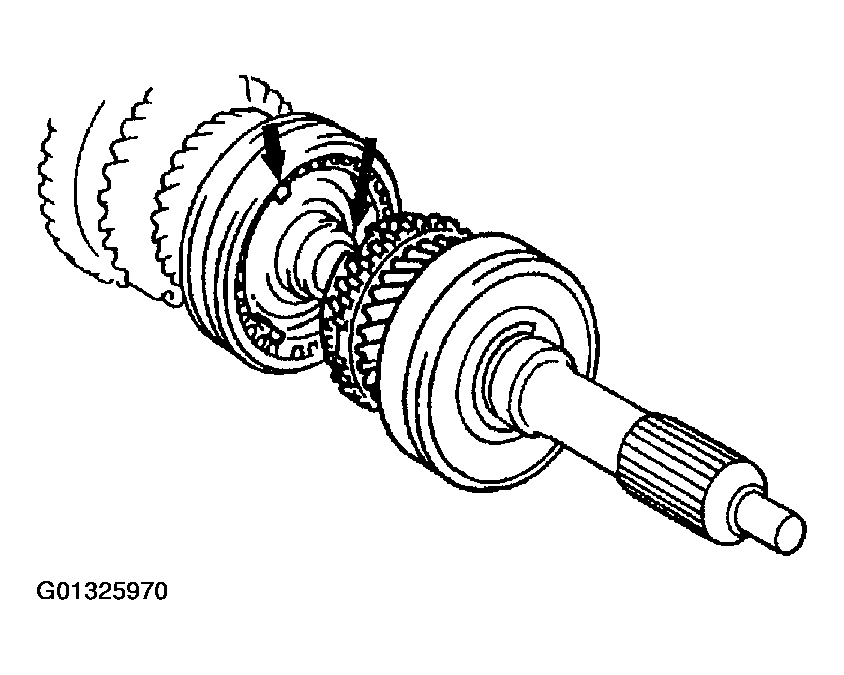

Align key slots of synchronizer ring and synchronizer keys and set input shaft assembly to main shaft assembly. Check that input shaft assembly turns lightly.

Fig 5: Aligning Key Slots Of Synchronizer Ring & Synchronizer Keys
Courtesy of SUZUKI OF AMERICA CORP.

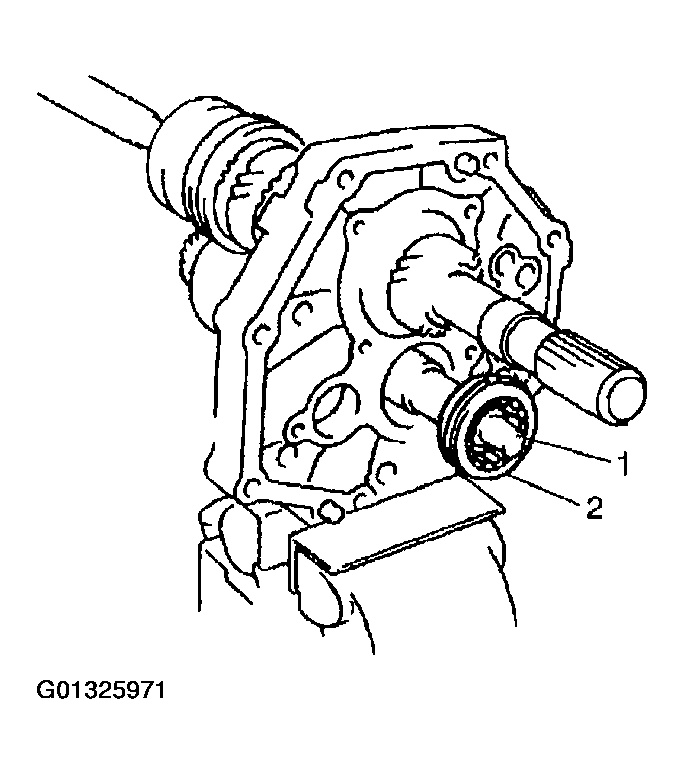

Install countershaft (1) and rear bearing (2) to intermediate case.
NOTE: When fitting of intermediate case and bearing is tight, tap outer race of bearing lightly and evenly with plastic hammer.

Fig 6: Installing Countershaft & Rear Bearing
Courtesy of SUZUKI OF AMERICA CORP.
Install bearing plate (1).
Tightening torque
1. Bearing plate bolt (a): 19 N.m (1.9 kg-m, 14.0 lb.ft)
Fig 7: Installing Bearing Plate
Courtesy of SUZUKI OF AMERICA CORP.

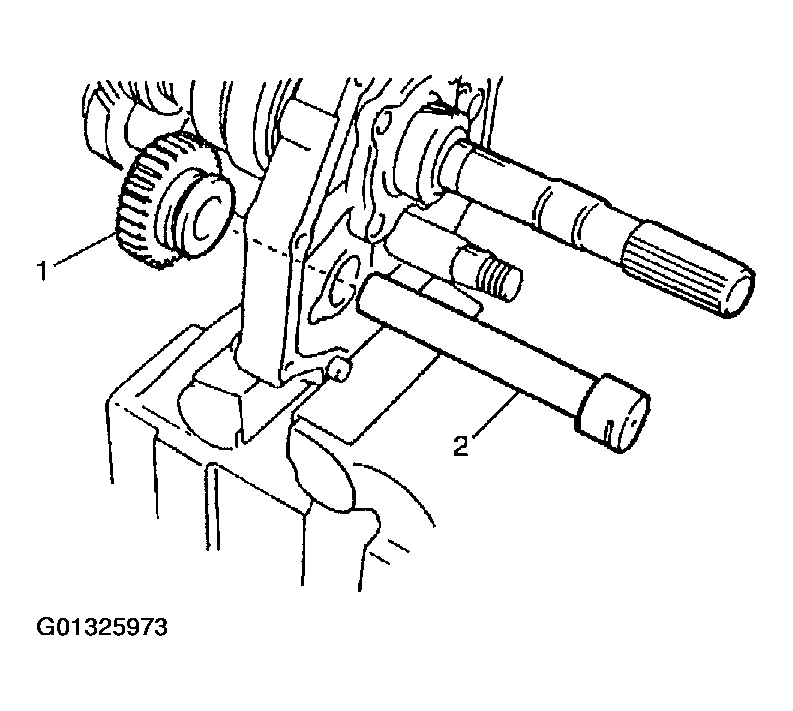

Install reverse idle gear (1) and shaft (2).

Fig 8: Installing Reverse Idle Gear & Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Tighten reverse gear shift bolt (1) to specification.
Tightening torque
1. Reverse gear shaft bolt (a): 18 N.m (1.8 kg-m, 13.0 lb.ft)
Fig 9: Tightening Reverse Gear Shift Bolt
Courtesy of SUZUKI OF AMERICA CORP.

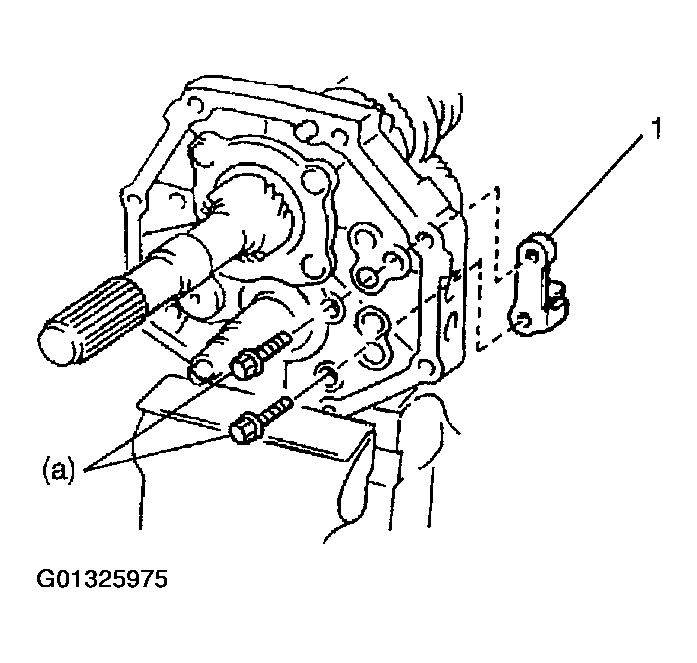

Install reverse link stay (1).
Tightening torque
1. Reverse link stay bolt (a): 19 N.m (1.9 kg-m, 14.0 lb-ft)
Fig 10: Installing Reverse Link Stay
Courtesy of SUZUKI OF AMERICA CORP.
Set ball (1) and thrust washer (2) to countershaft.

Fig 11: Setting Ball & Thrust Washer To Countershaft
Courtesy of SUZUKI OF AMERICA CORP.

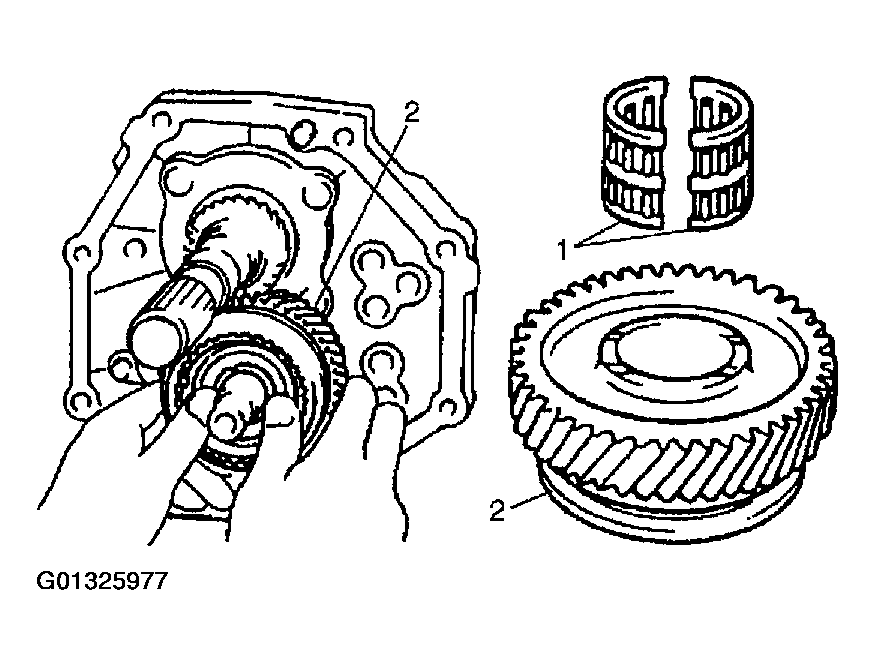

Install needle bearing (1), countershaft 5th gear (2) and synchronizer ring.
NOTE: When setting synchronizer ring to sleeve of 5th gear, align synchronizer key slot to key.

Fig 12: Installing Needle Bearing
Courtesy of SUZUKI OF AMERICA CORP.

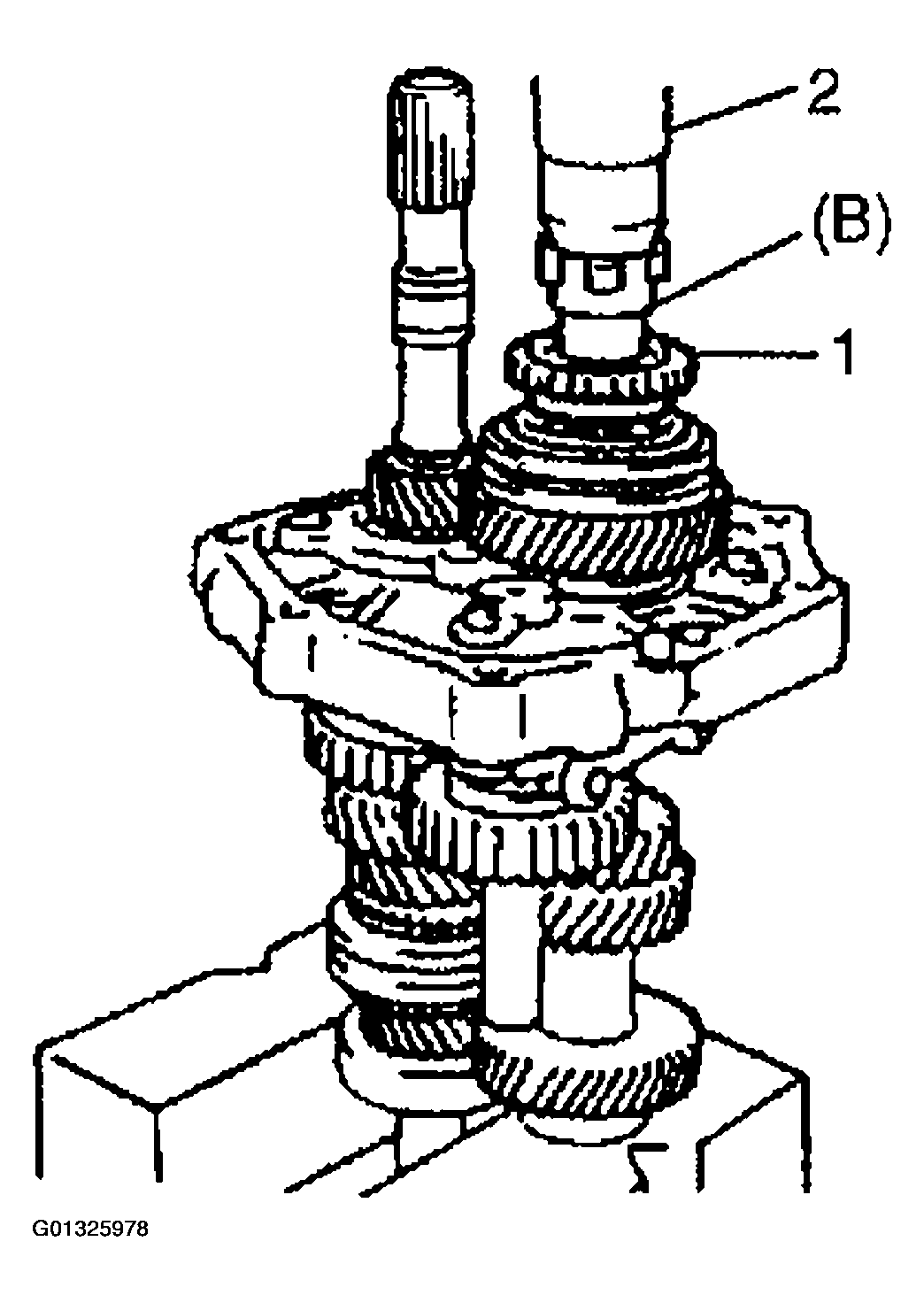

Press-fit 5th speed synchronizer dog (1) to countershaft with hydraulic press (2) and special tool.
Special tool
1. (B): 09927-08220
Fig 13: Press-Fitting 5th Speed Synchronizer Dog
Courtesy of SUZUKI OF AMERICA CORP.
Select circlip (1) that will make clearance in circlip groove 0.1 mm (0.0039 in.) or less.

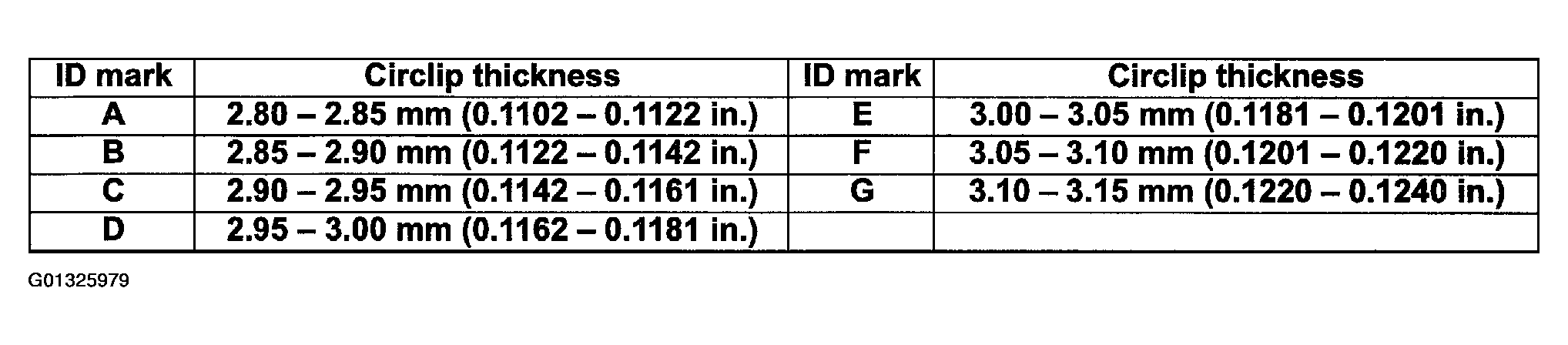

Fig 14: Circlip Thickness Specifications Chart
Courtesy of SUZUKI OF AMERICA CORP.

Fig 15: Measuring Circlip Groove Clearance
Courtesy of SUZUKI OF AMERICA CORP.
Fix with circlip (1) as shown in the figure and check that counter 5th gear turns lightly.

Fig 16: Fixing Circlip
Courtesy of SUZUKI OF AMERICA CORP.

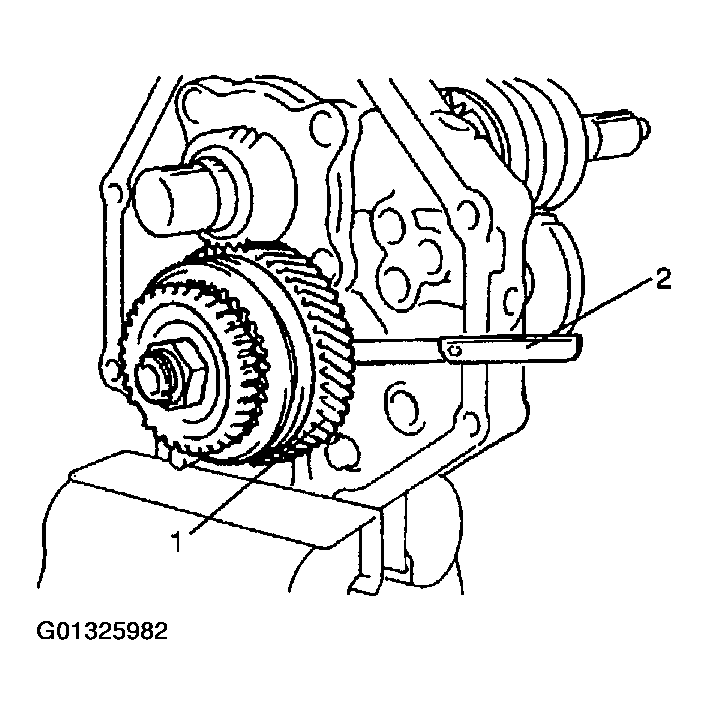

Check countershaft 5th gear (1) thrust clearance by using thickness gauge (2).
If clearance exceeds limit, repeat Step 1 to 14 again or replace defective part(s).
1. Countershaft 5th gear thrust clearance: 0.1 - 0.3 mm (0.0039 - 0.0118 in.)
Fig 17: Checking Countershaft 5th Gear Thrust Clearance
Courtesy of SUZUKI OF AMERICA CORP.
Install low speed gear shift fork, high speed gear shift fork and shaft.
Apply thread lock cement to thread of fork bolt and tighten bolt to specification.
"A": Thread lock cement 99000-32020

Tightening torque
1. Shift fork bolt (a): 20 N.m (2.0 kg-m, 14.5 lb-ft)
Fig 18: Applying Thread Lock Cement To Thread Of Fork Bolt
Courtesy of SUZUKI OF AMERICA CORP.

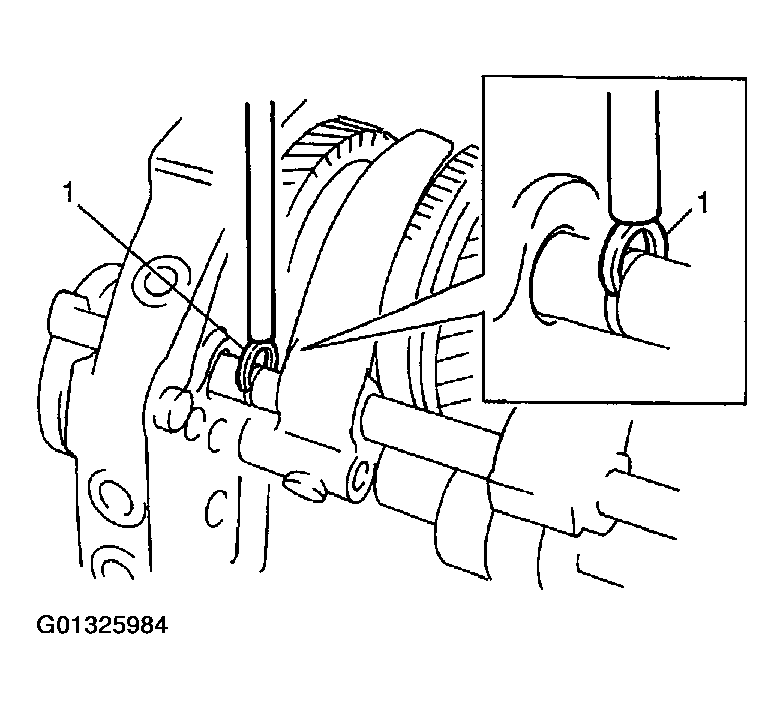

Fix new circlip (1) to high gear shift shaft by using lever or the like and hammer.

Fig 19: Fixing Circlip To High Gear Shift Shaft
Courtesy of SUZUKI OF AMERICA CORP.

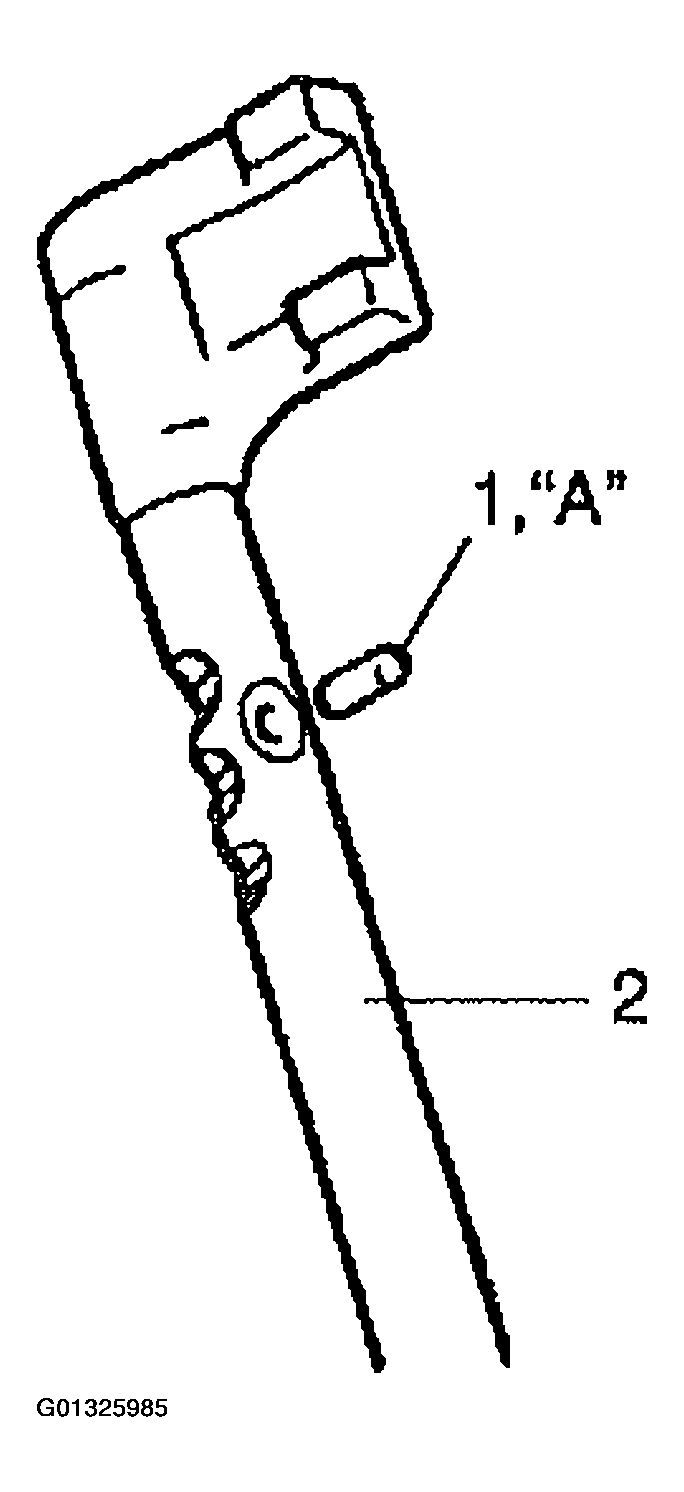

Apply grease "A" to locating roller No. 2 (1) and install roller (1) to low gear shift shaft (2).
1. "A": Grease 99000-32020
Fig 20: Installing Roller To Low Gear Shift Shaft
Courtesy of SUZUKI OF AMERICA CORP.

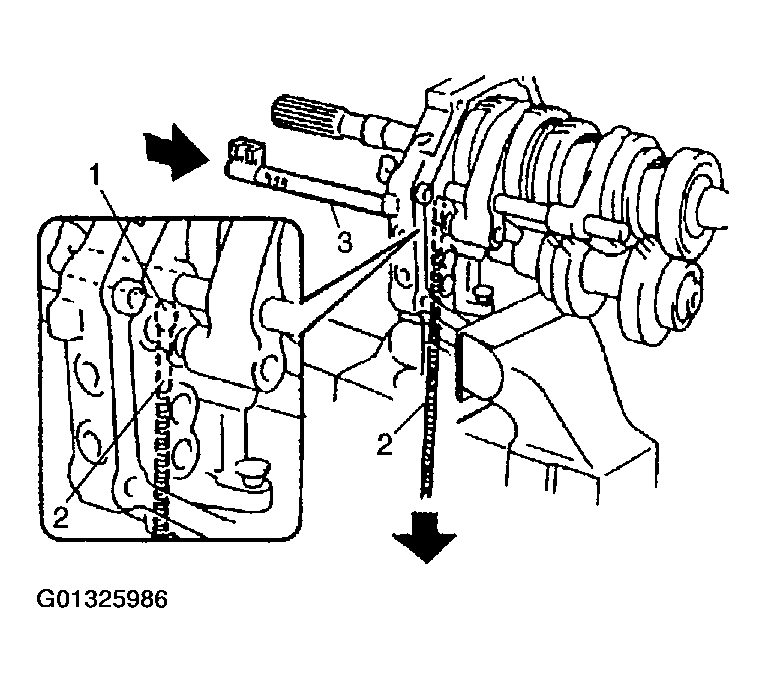

Supporting locating roller No. 3 (1) by magnet (2), insert low gear shift shaft (3) to intermediate case and low speed gear shift fork.

Fig 21: Inserting Low Gear Shift Shaft To Intermediate Case
Courtesy of SUZUKI OF AMERICA CORP.

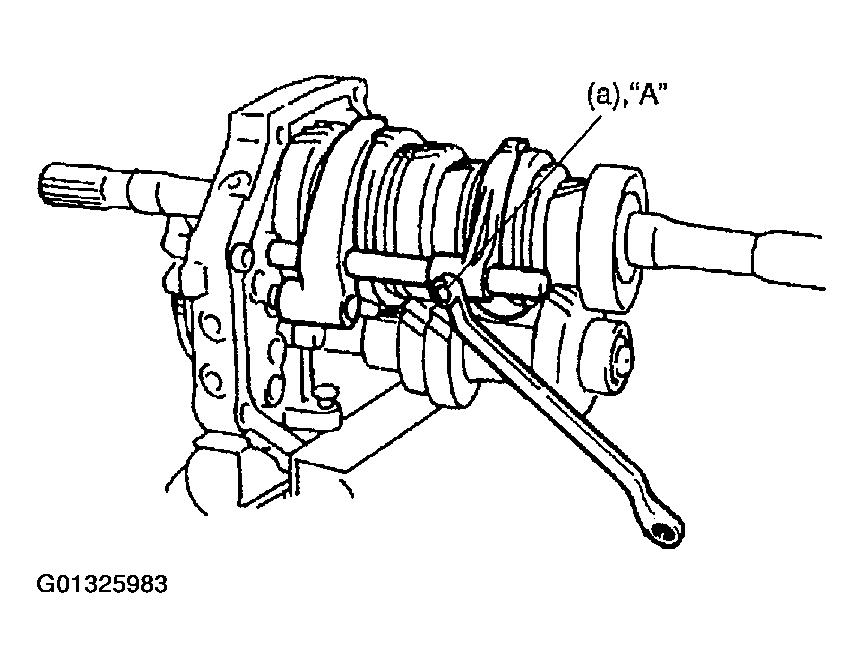

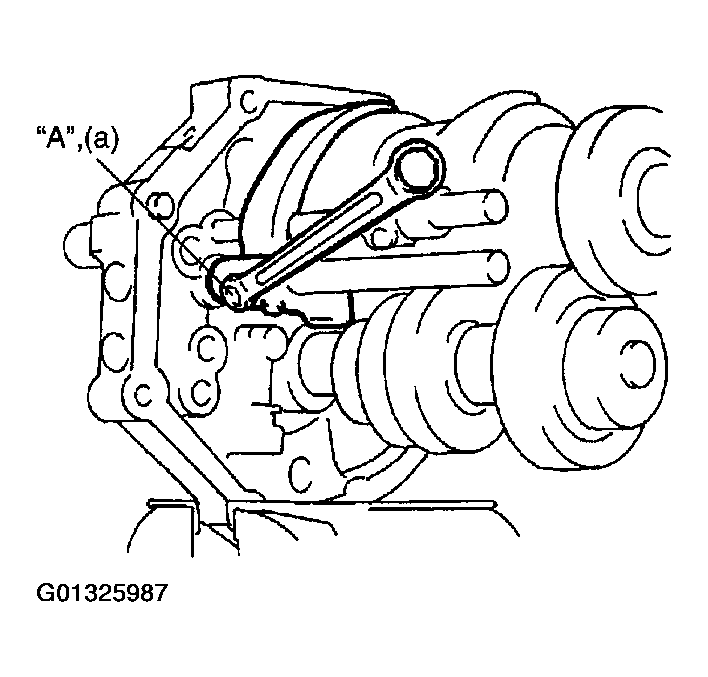

Apply thread lock cement "A" to thread of fork bolt and tighten bolt to specification.
"A": Thread lock cement 99000-32020

Tightening torque
1. Shift fork bolt (a): 20 N.m (2.0 kg-m, 14.5 lb-ft)
Fig 22: Tightening Fork Bolt
Courtesy of SUZUKI OF AMERICA CORP.

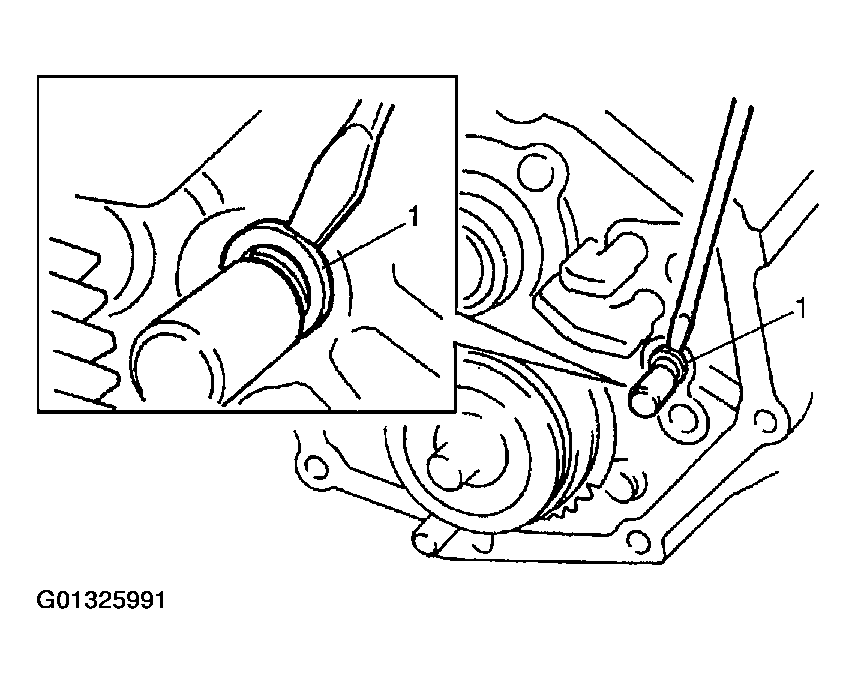

Fix with new circlip (1) to low gear shift shaft (2) by using lever or the like and hammer.

Fig 23: Installing Low Gear Shift Shaft Circlip
Courtesy of SUZUKI OF AMERICA CORP.
Apply grease to locating roller No. 2 (1) and install roller No. 2 (1) to reverse gear shift shaft (2).
1. "A": Grease 99000-32020
Fig 24: Installing Roller No. 2
Courtesy of SUZUKI OF AMERICA CORP.
Assemble reverse gear shift link assembly.

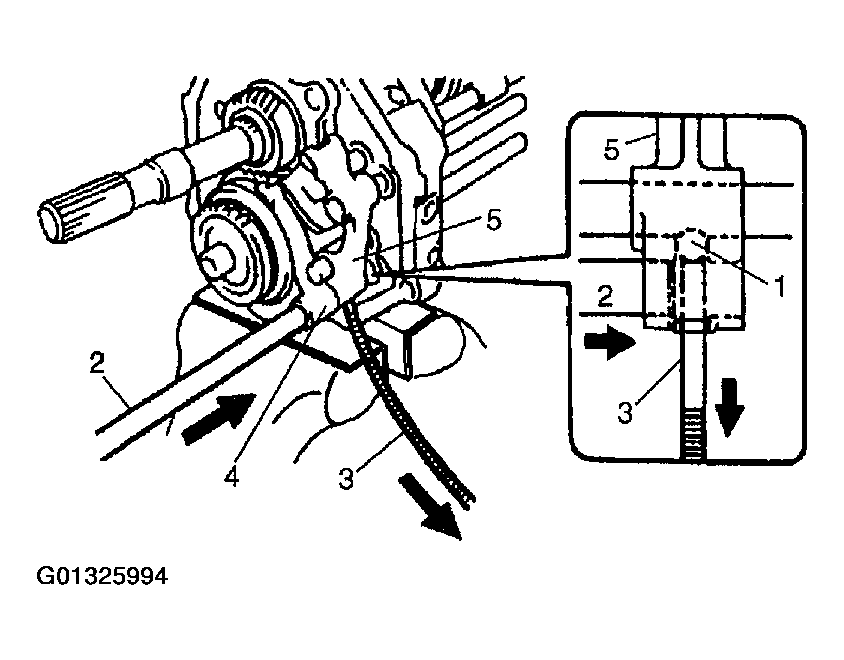

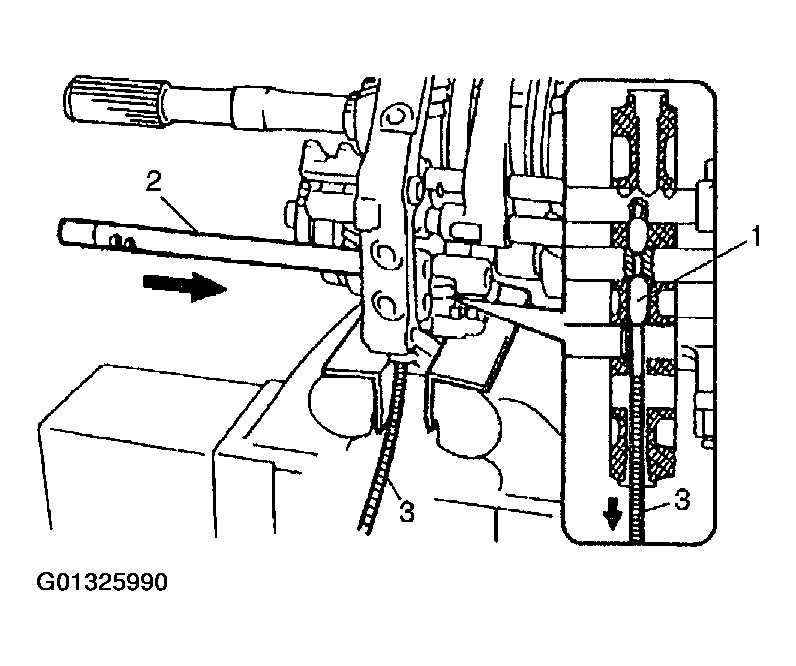

Insert reverse gear shift shaft (2) into reverse gear shift link assembly and intermediate case while holding locating roller No. 1 (1) with magnet (3).
Supporting locating roller No. 1 (1) with magnet (3), insert reverse gear shift shaft (2) into reverse gear shift link and intermediate case.

Fig 25: Inserting Reverse Gear Shift Shaft
Courtesy of SUZUKI OF AMERICA CORP.

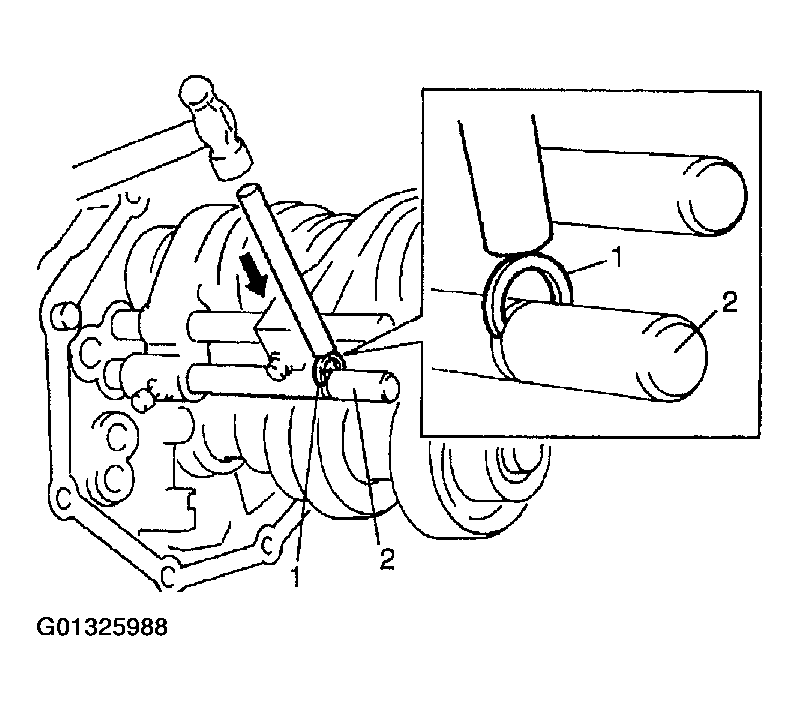

Fix with new circlip (1) to reverse gear shift shaft by using rod or the like and hammer.

Fig 26: Installing Reverse Gear Shift Shaft Circlip
Courtesy of SUZUKI OF AMERICA CORP.

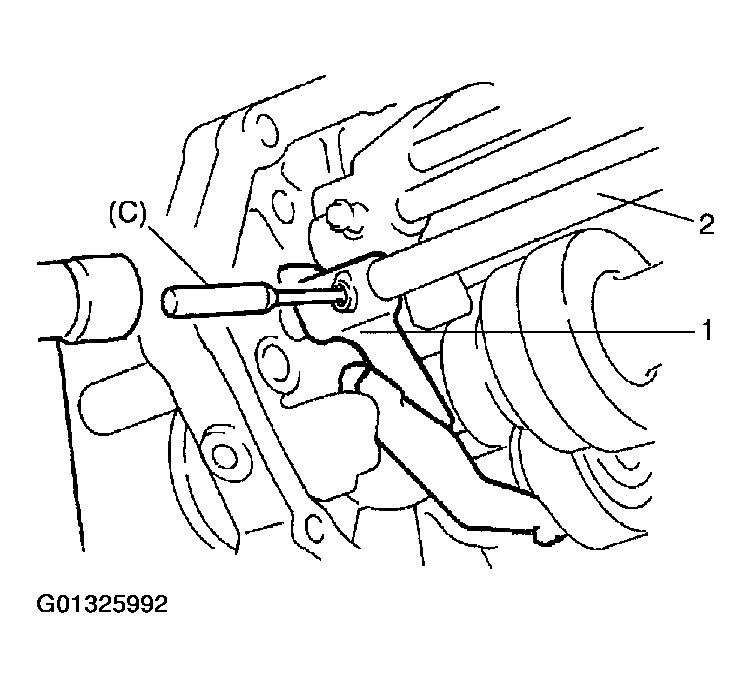

Drive pin into reverse gear shift link (1) and shaft by using special tool (C).
Special tool
1. (C): 09922-85811
Fig 27: Driving Pin Into Reverse Gear Shift Link
Courtesy of SUZUKI OF AMERICA CORP.

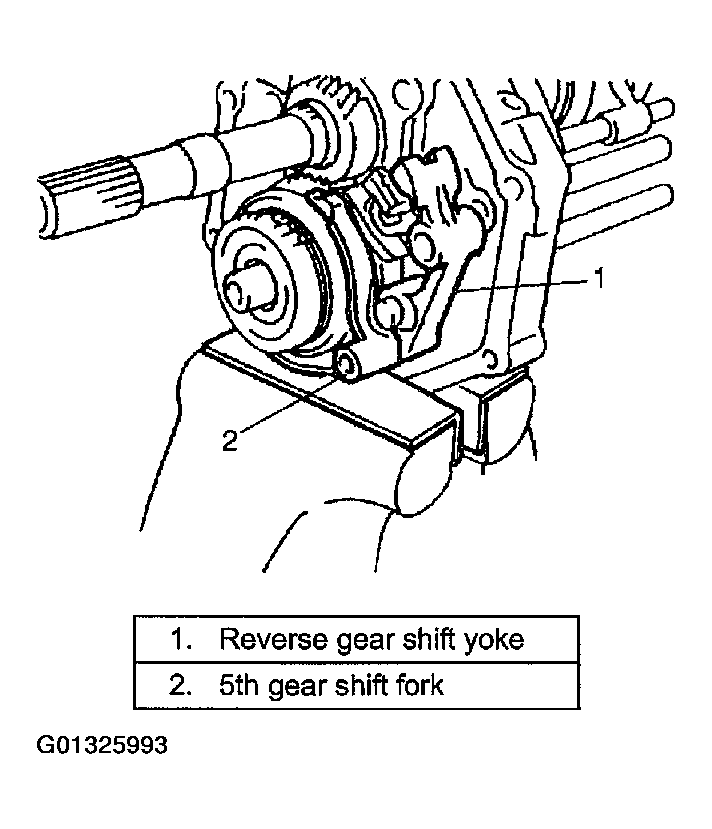

Install reverse gear shift yoke (1) and 5th gear shift fork (2) as shown in the figure.

Fig 28: Installing Reverse Gear Shift Yoke
Courtesy of SUZUKI OF AMERICA CORP.

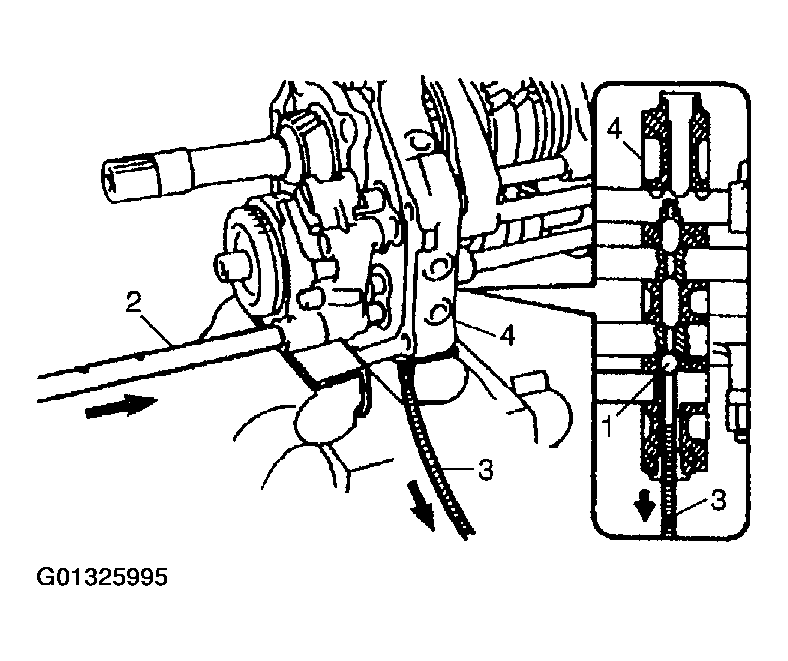

Supporting ball (1) with magnet (3) as shown in the figure, insert 5th gear shift shaft (2) to 5th gear shift fork (4) and reverse gear shift yoke (5).

Fig 29: Inserting 5th Gear Shift Shaft To 5th Gear Shift Fork
Courtesy of SUZUKI OF AMERICA CORP.
Supporting ball (1) with magnet (3) as shown in the figure, insert 5th gear shift shaft (2) into intermediate case (4).

Fig 30: Inserting 5th Gear Shift Shaft Into Intermediate Case
Courtesy of SUZUKI OF AMERICA CORP.

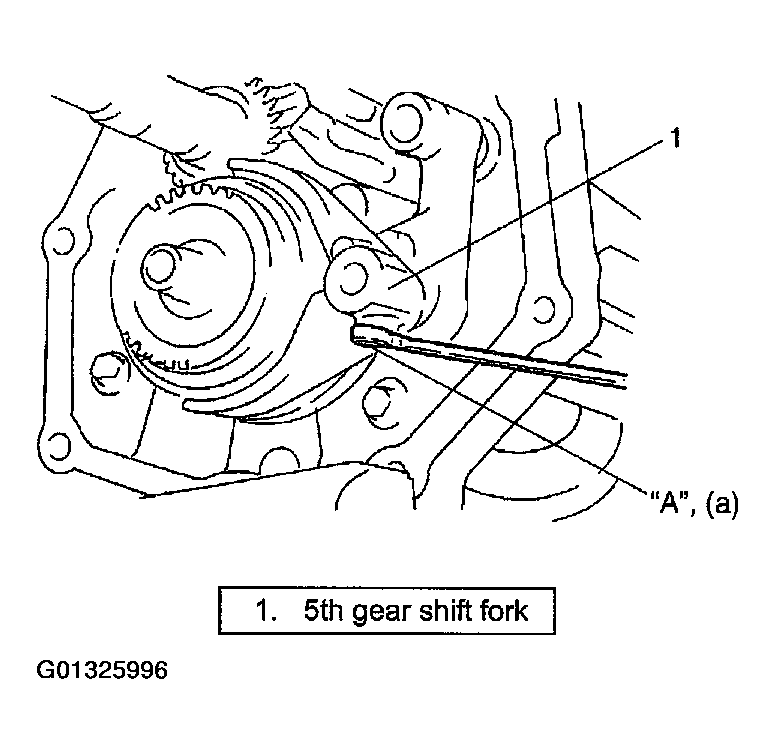

Apply thread lock cement "A" to thread of fork bolt and tighten bolt to specification.
"A": Thread lock cement 99000-32020

Tightening torque
1. 5th gear shift fork bolt (a): 20 N.m (2.0 kg-m, 14.5 lb-ft)
Fig 31: Tightening Fork Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Insert 5th-reverse gear shift shaft (1) to reverse gear shift yoke and drive pin into shaft and yoke.
Special tool
1. (C): 09922-85811
Fig 32: Driving Pin Into Shaft & Yoke
Courtesy of SUZUKI OF AMERICA CORP.
Install locating balls, locating springs and locating screw after checking free length of locating springs.

Fig 33: Locating Springs Free Length Chart
Courtesy of SUZUKI OF AMERICA CORP.

NOTE: For 5th gear locating spring, use shorter spring (1).

"A": Thread lock cement 99000-32020

Tightening torque
1. Locating spring screw (a): 19 N.m (1.9 kg-m, 14.0 lb-ft)
Fig 34: Installing Locating Balls, Springs & Screw
Courtesy of SUZUKI OF AMERICA CORP.

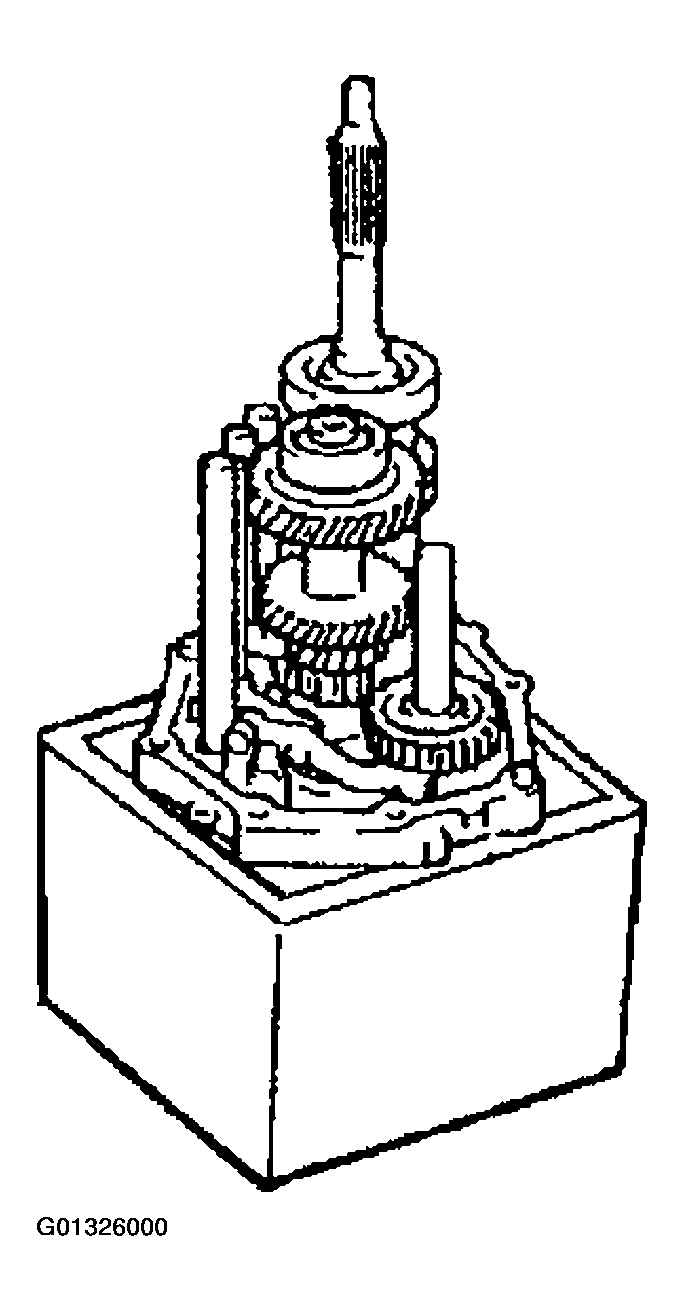

Place intermediate case assembly upright as shown in the figure by using workbench or the like.

Fig 35: Placing Intermediate Case Assembly Upright
Courtesy of SUZUKI OF AMERICA CORP.
Apply sealant evenly to front case side of intermediate case (1) as shown in the figure.
1. "A": Sealant 99000-31110
Fig 36: Applying Sealant To Front Case Side Of Intermediate Case
Courtesy of SUZUKI OF AMERICA CORP.
Clean mating surface of front case (1) and install it to intermediate case.

Fig 37: Installing Front Case To Intermediate Case
Courtesy of SUZUKI OF AMERICA CORP.

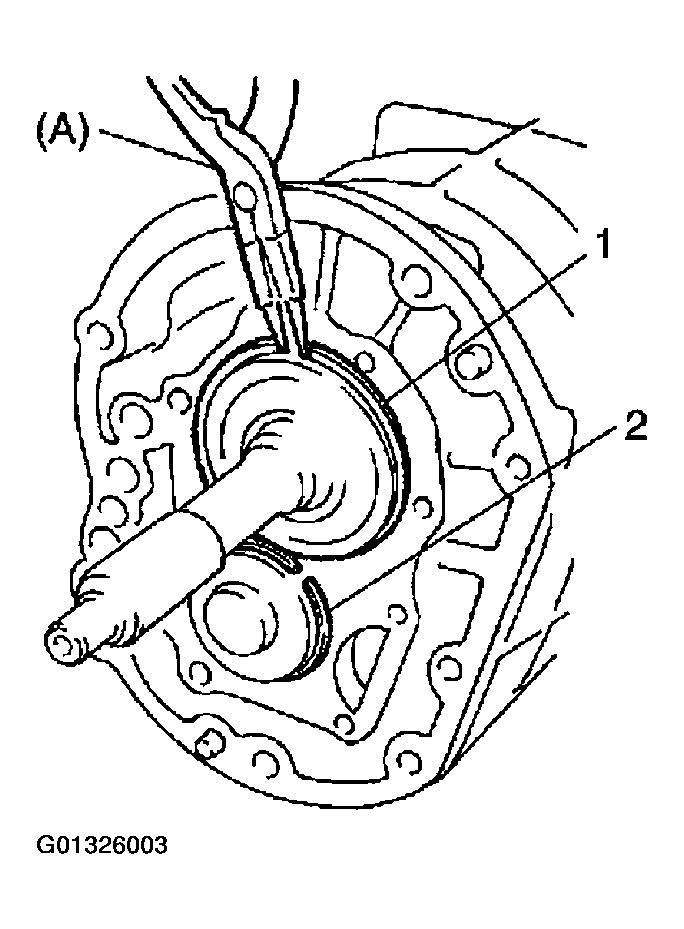

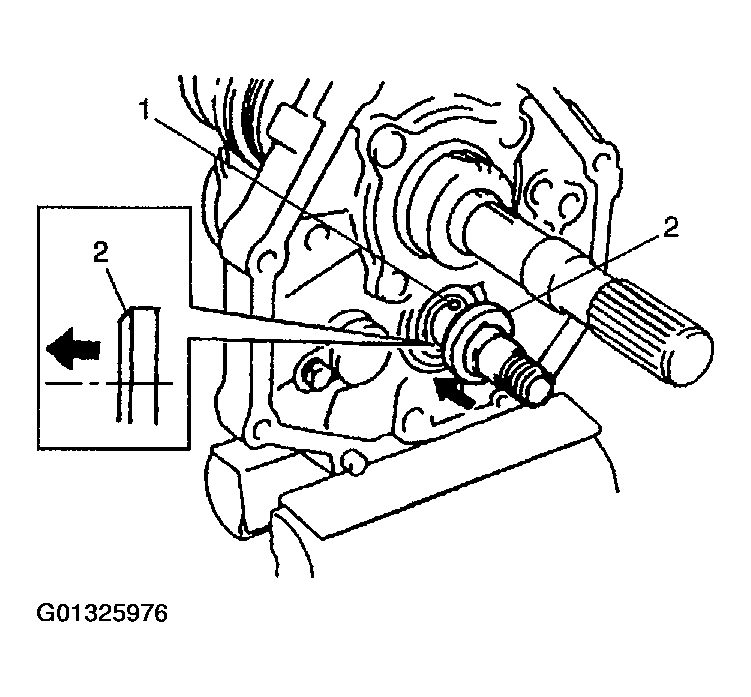

Fix C-rings (1, 2) to bearings as shown in the figure.
Special tool
1. (A): 09900-06107
Fig 38: Fixing C-Rings
Courtesy of SUZUKI OF AMERICA CORP.

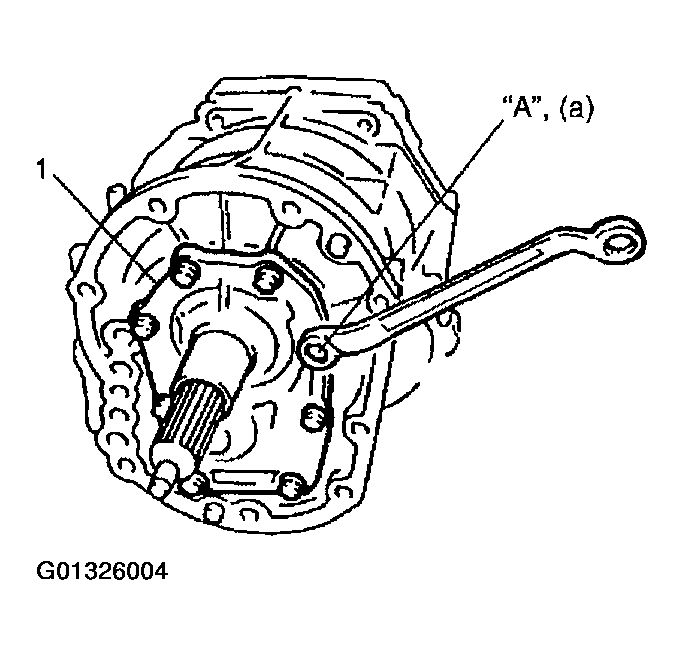

Apply cement "A" to input shaft bearing retainer bolt and install input shaft bearing retainer (1), new gasket and its bolts.
"A": Thread lock cement 99000-32020

Tightening torque
1. Input shaft bearing retainer bolt (a): 17 N.m (1.7 kg-m, 12.5 lb-ft)
Fig 39: Tightening Shaft Bearing Retainer Bolt
Courtesy of SUZUKI OF AMERICA CORP.

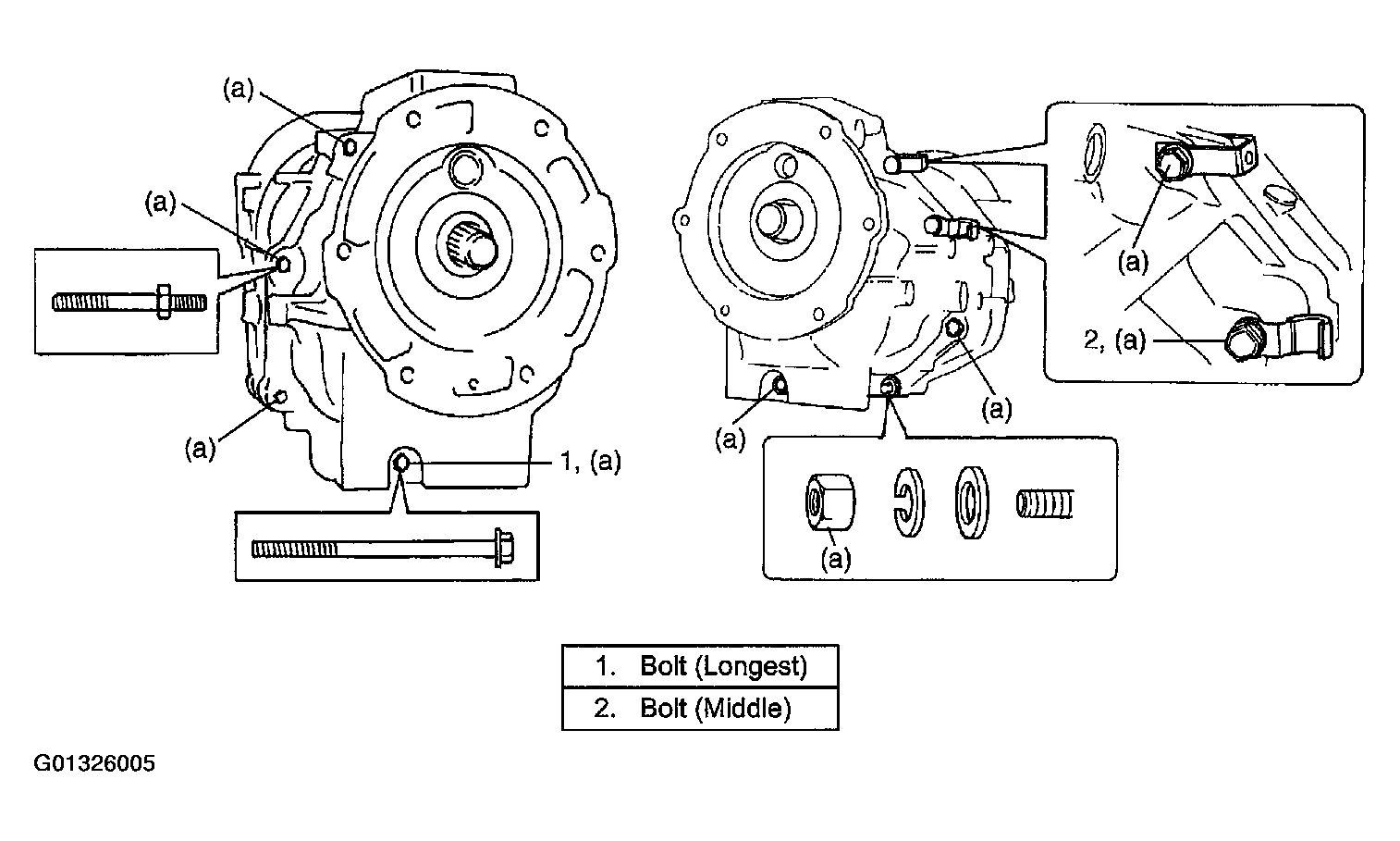

Clean mating surface of rear case and apply sealant evenly to rear case side of intermediate case.
1. Sealant: 99000-31110
Install rear case to intermediate case.
Tightening torque
1. Rear case to intermediate case bolt (a): 35 N.m (3.5 kg-m, 25.5 lb-ft)
Fig 40: Installing Rear Case To Intermediate Case
Courtesy of SUZUKI OF AMERICA CORP.

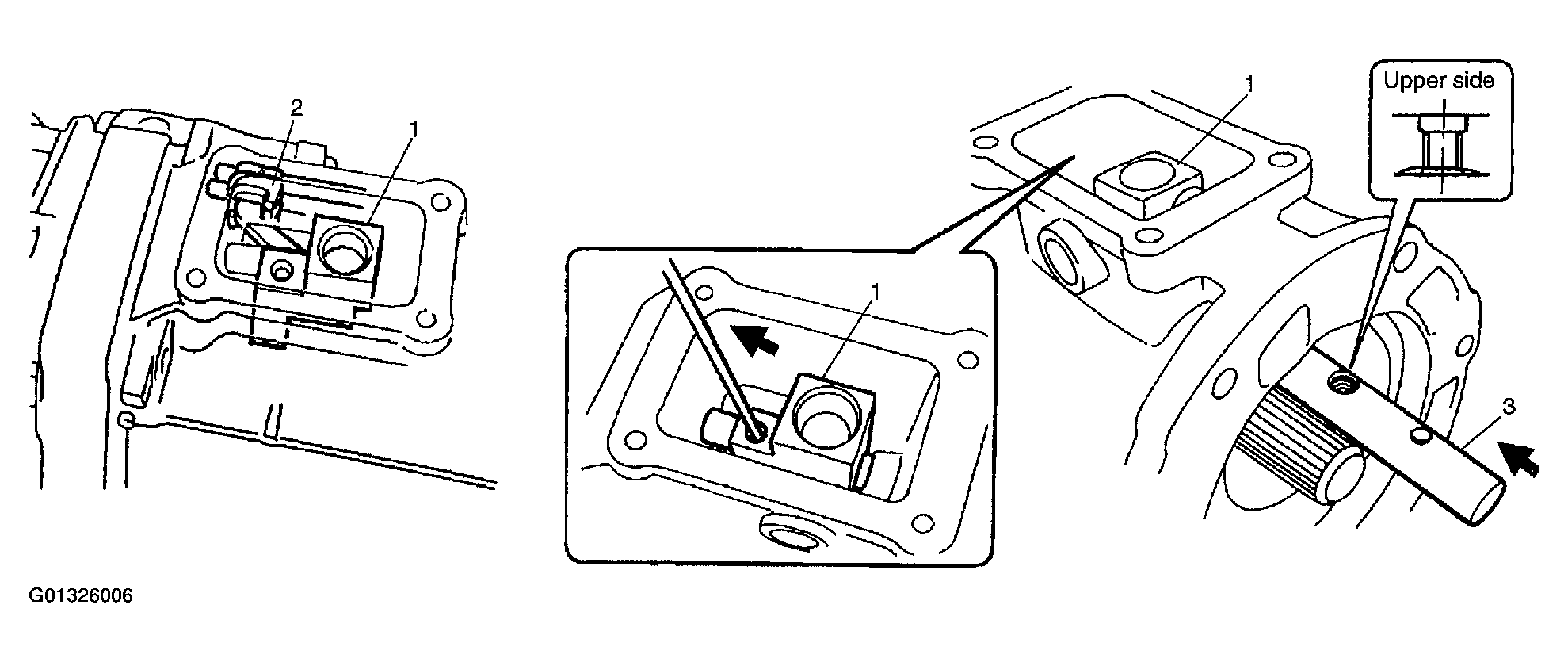

With tip end of gear shift shaft inner lever (1) hooked on head of gear shift shaft (2), insert gear shift inner shaft (3) into gear shift shaft inner lever.

Fig 41: Inserting Gear Shift Inner Shaft Into Gear Shift Shaft Inner Lever
Courtesy of SUZUKI OF AMERICA CORP.
Apply cement "A" to inner gear shift shaft bolt/plug and tighten them to specification.
"A": Thread lock cement 99000-32020

Tightening torque
1. Gear shift shaft inner bolt (a): 39 N.m (3.9 kg-m, 28.5 lb-ft)
2. Gear shift shaft inner plug (b): 19 N.m (1.9 kg-m, 14.0 lb-ft)

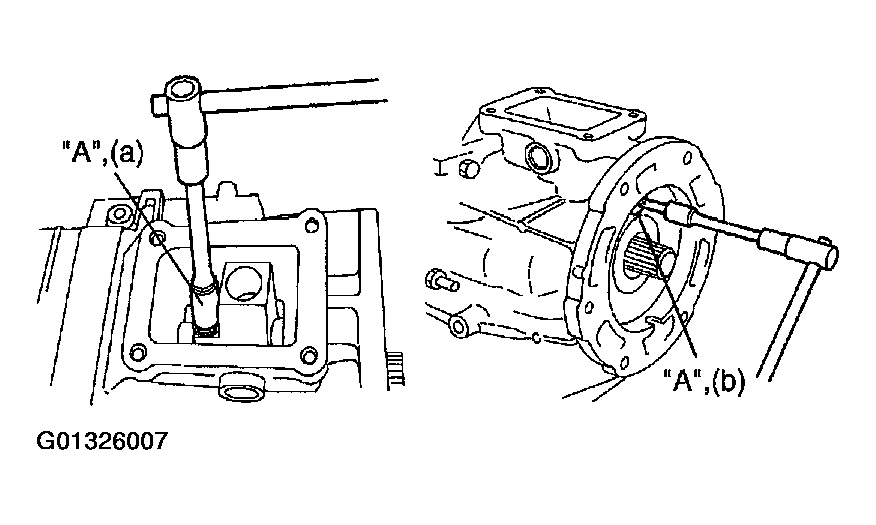

Fig 42: Tightening Inner Gear Shift Shaft Bolt/Plug
Courtesy of SUZUKI OF AMERICA CORP.
Tighten return spring low bolt and return spring reverse bolt (black color) (1).
NOTE: Install return spring reverse bolt (black color) (1) to left side of case.

Tightening torque
1. Return spring reverse bolt (black color) (a): 28 N.m (2.8 kg-m, 20.5 lb-ft)
Fig 43: Tightening Return Spring Low Bolt
Courtesy of SUZUKI OF AMERICA CORP.

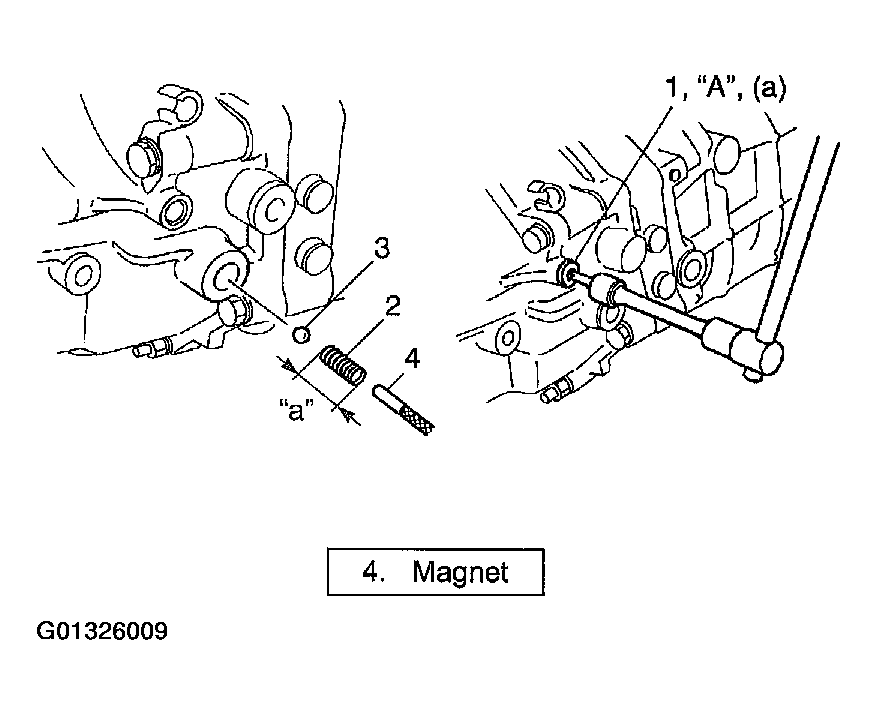

Apply cement to locating screw (1) and install locating ball (3), locating spring (2) and screw to rear case.
Locating spring free length "a"
1. Standard: 22.1 mm (0.87 in.)
2. Limit: 21.4 mm (0.84 in.)
3. "A": Thread lock cement 99000-32020
Tightening torque
1. Locating screw (a): 19 N.m (1.9 kg-m, 14.0 lb-ft)
Fig 44: Installing Locating Ball, Locating Spring & Screw To Rear Case
Courtesy of SUZUKI OF AMERICA CORP.
Install back-up light switch and new gasket.
Tightening torque
1. Back-up light switch (a): 45 N.m (4.5 kg-m, 32.5 lb-ft)
Fig 45: Installing Back-Up Light Switch
Courtesy of SUZUKI OF AMERICA CORP.

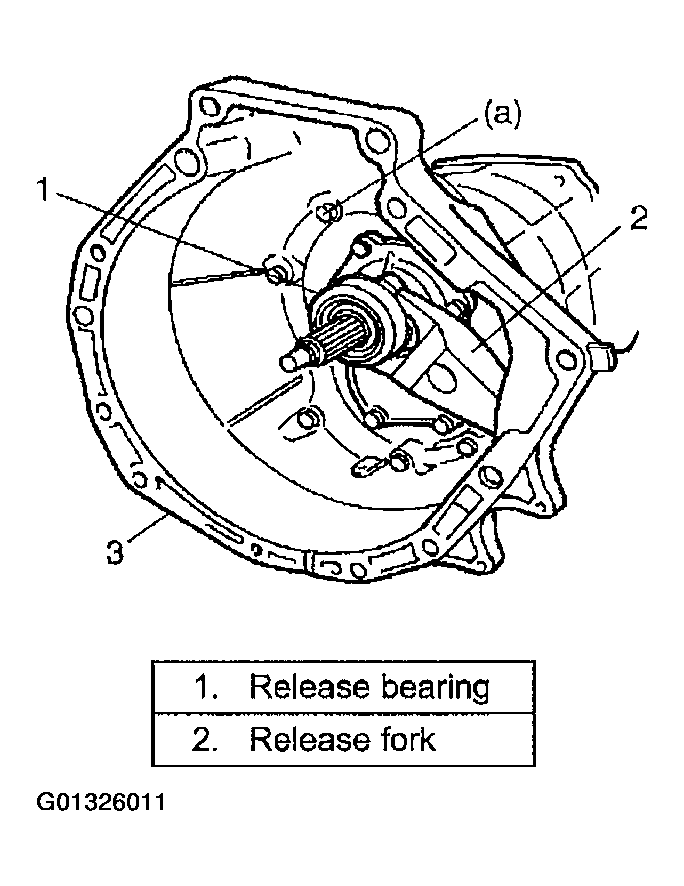

Install clutch housing (3) and torque its bolts to specification.
Tightening torque
1. Clutch housing bolt (a): 50 N.m (5.0 kg-m, 36.5 lb-ft)
Fig 46: Installing Clutch Housing
