DTC P1510: ECM Back-Up Power Supply Malfunction
>>
Diagnostic Procedures
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Procedures
For diagnosis and repair, see

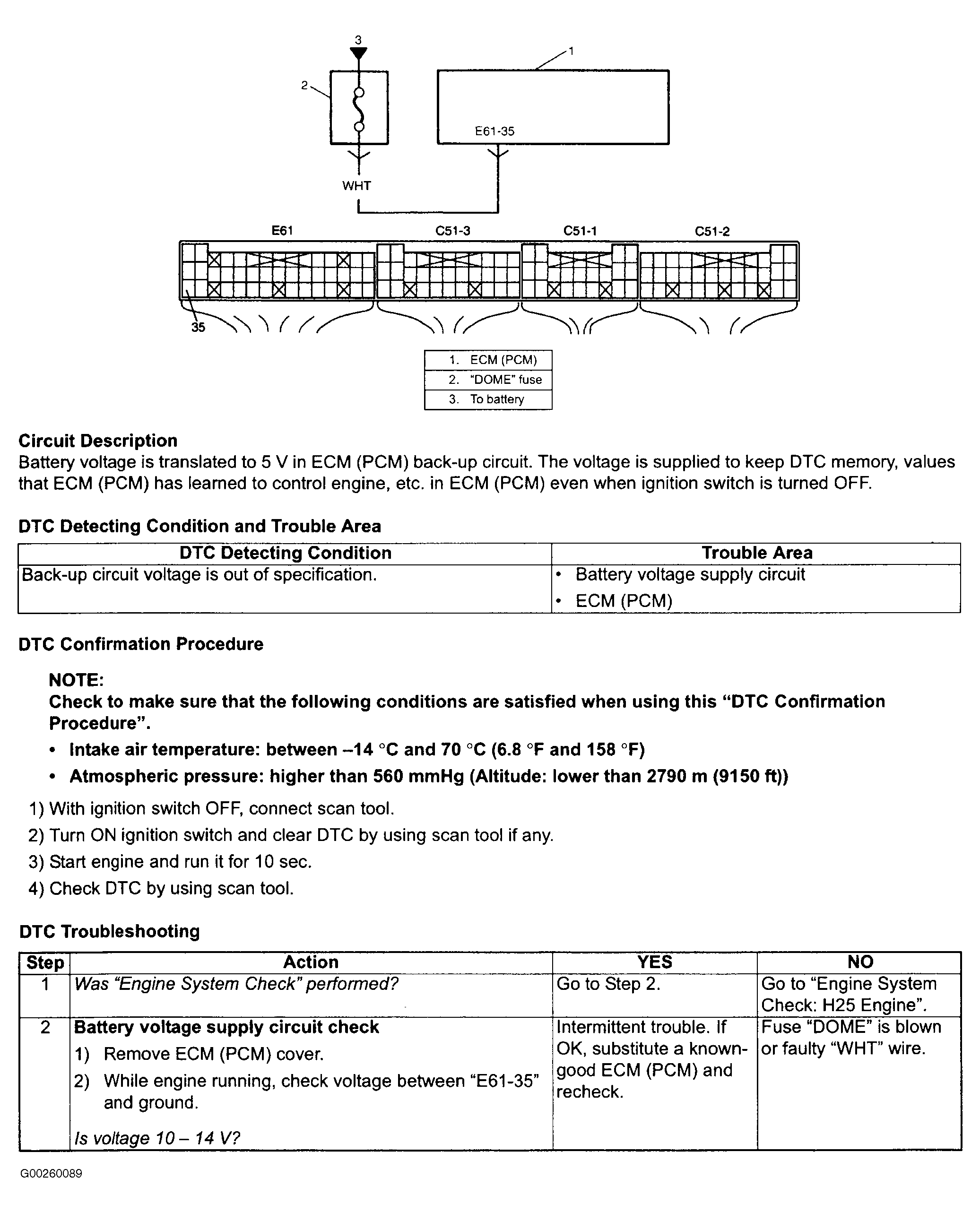

Fig 1
.
Fig 1: DTC P1510 Diagnostic Procedure
Courtesy of SUZUKI OF AMERICA CORP.
