Diagnostic Procedures

For diagnosis and repair, see Fig 1 and Fig 2 .

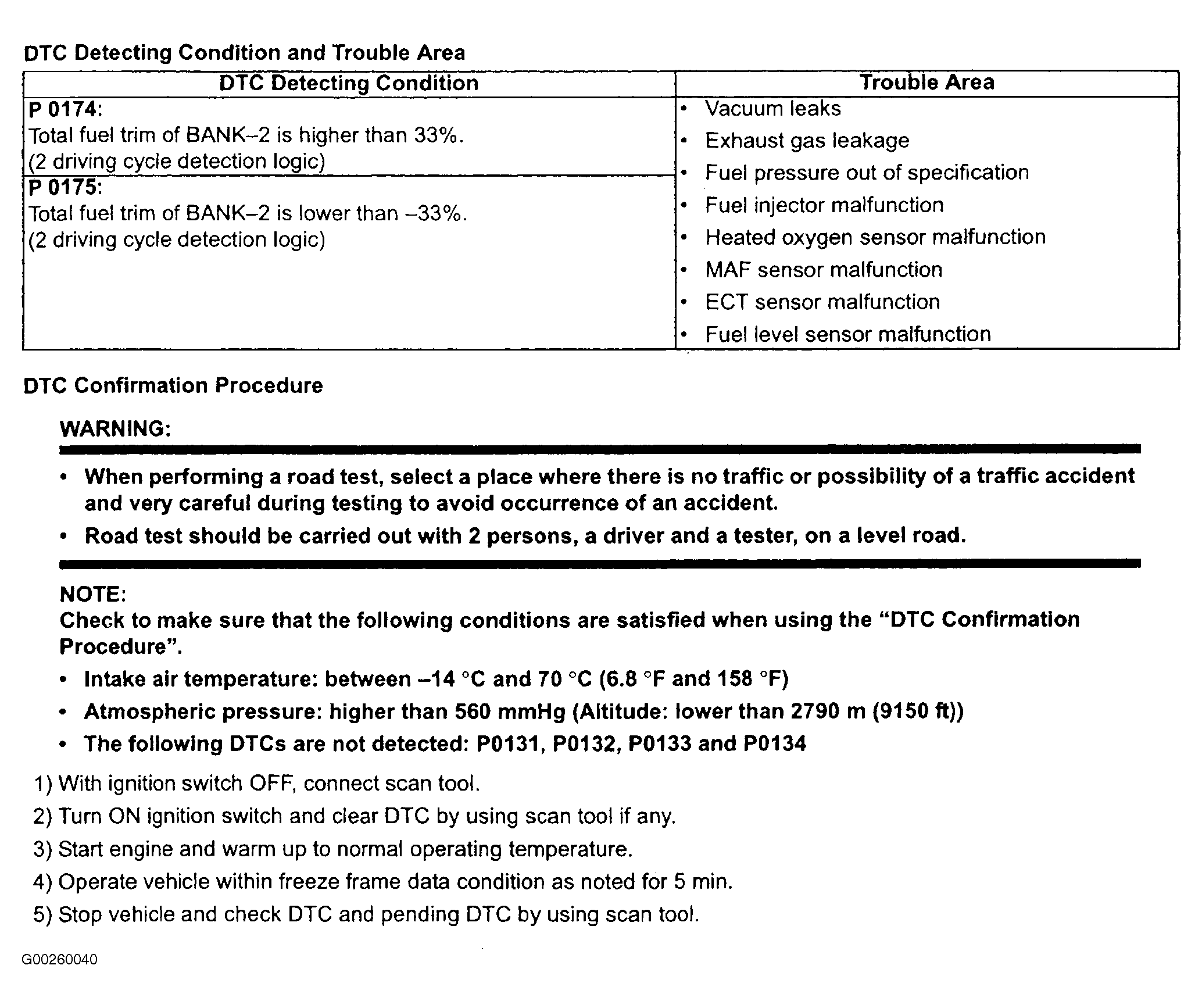

Fig 1: DTC P0174/P0175 Diagnostic Procedure (1 Of 2)
G00260040Courtesy of SUZUKI OF AMERICA CORP.

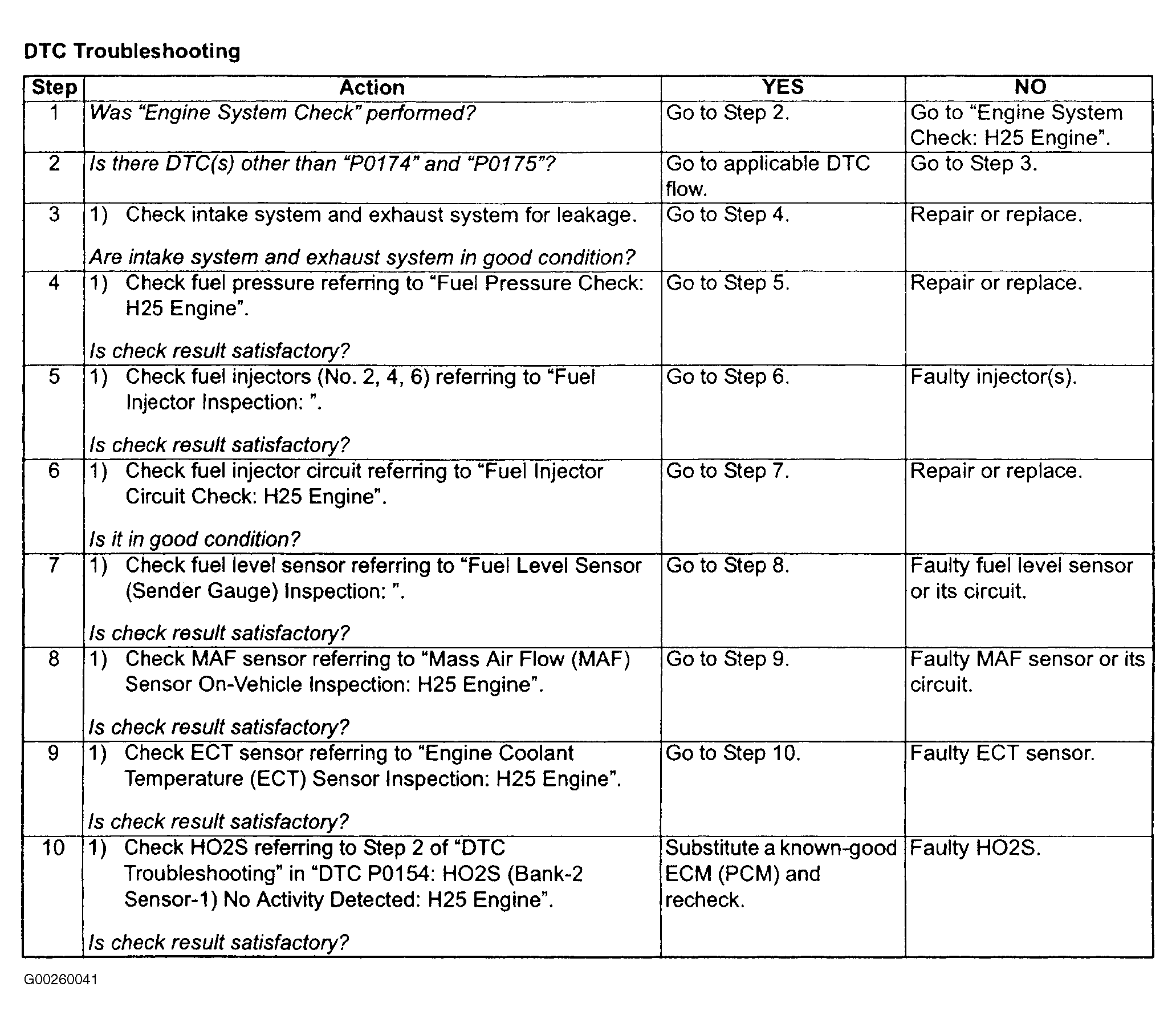

Fig 2: DTC P0174/P0175 Diagnostic Procedure (2 Of 2)
G00260041Courtesy of SUZUKI OF AMERICA CORP.
