Diagnostic Procedures
For diagnosis and repair, see
Fig 1
and
Fig 2
.

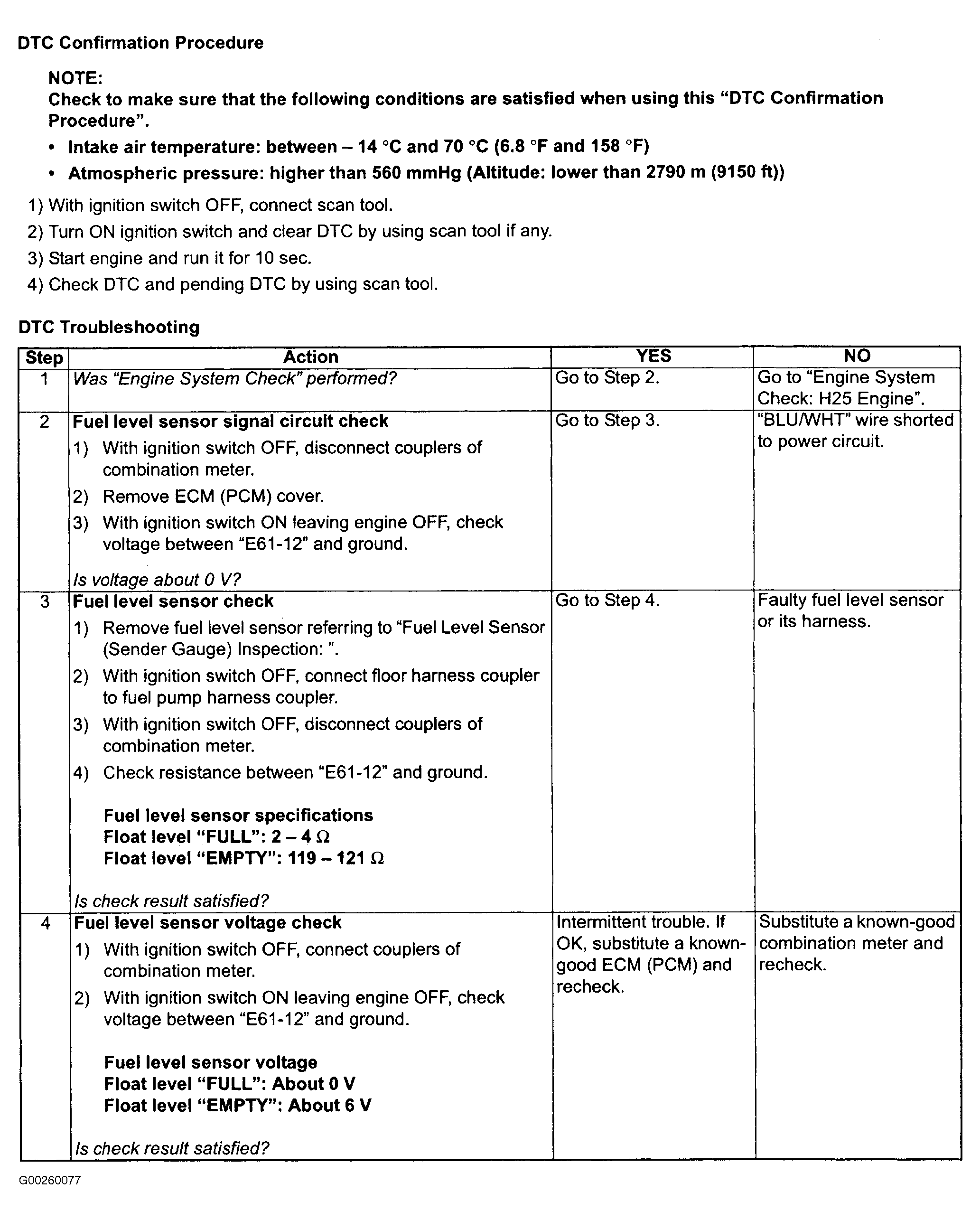

Fig 1: DTC P0463 Diagnostic Procedure (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

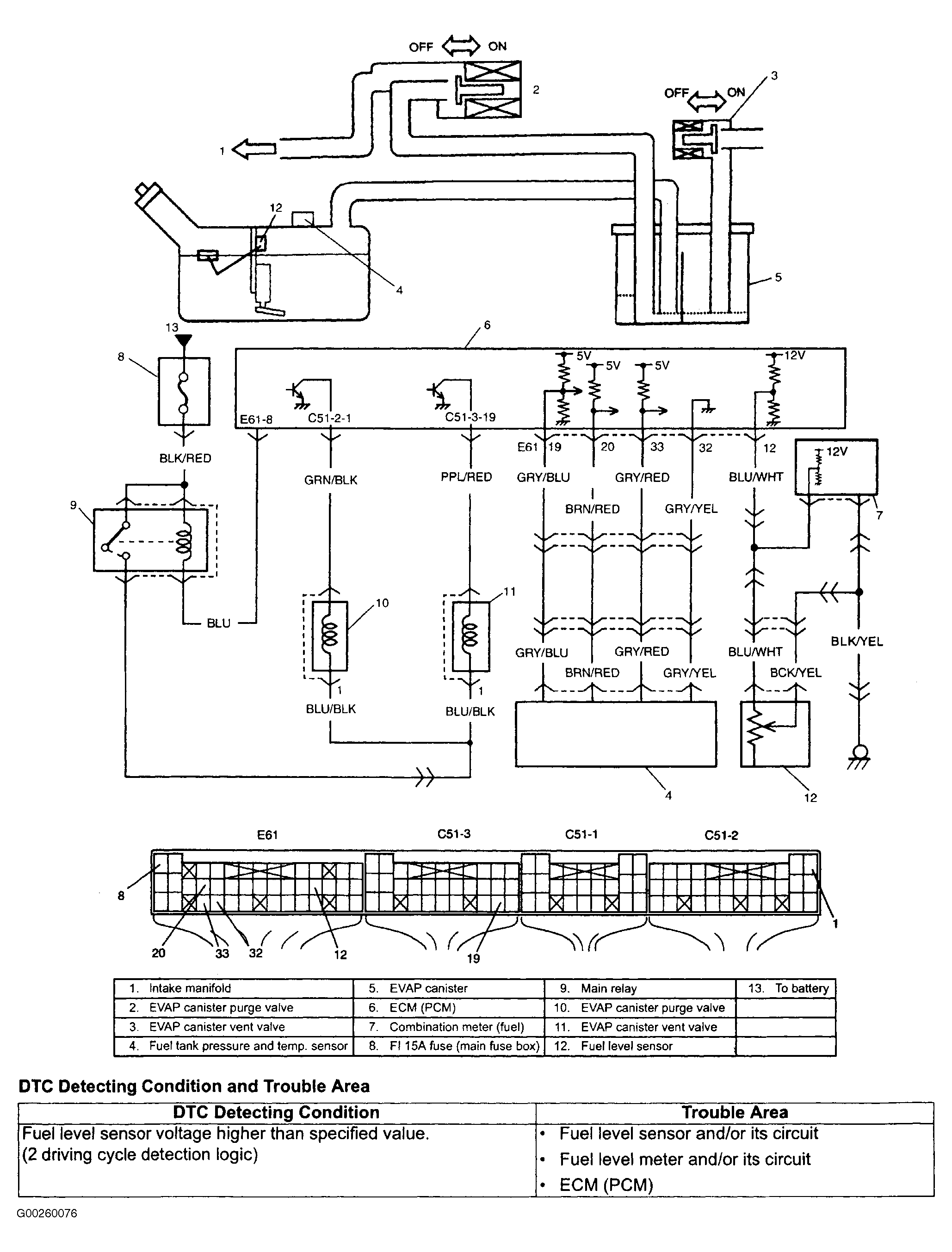

Fig 2: DTC P0463 Diagnostic Procedure (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
