Manual Transmission Unit Disassembly

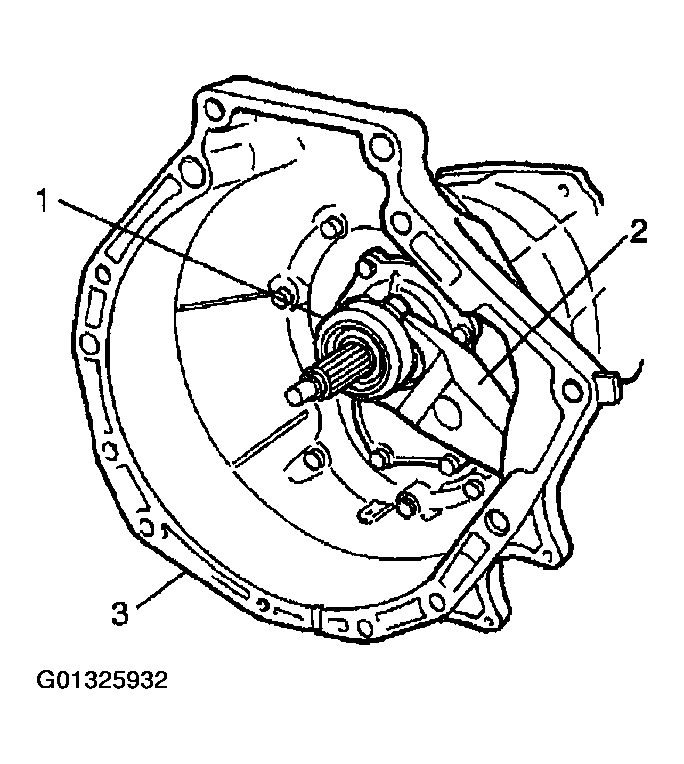

Remove clutch release bearing (1), release fork (2) and clutch housing (3).

Fig 1: Removing Clutch Release Bearing
Courtesy of SUZUKI OF AMERICA CORP.
Remove back-up light switch (1).

Fig 2: Removing Back-Up Light Switch
Courtesy of SUZUKI OF AMERICA CORP.

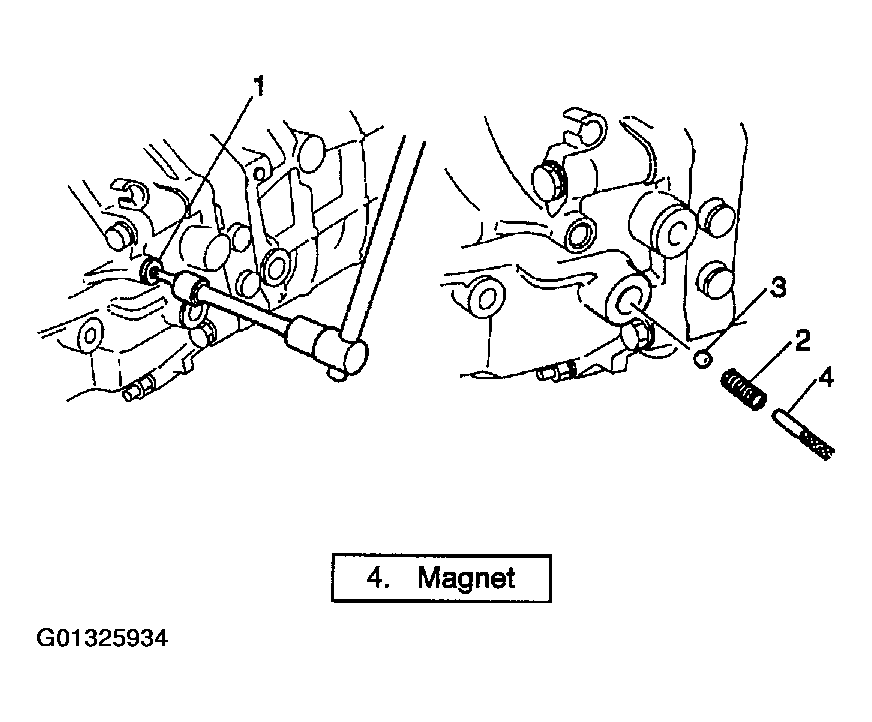

Remove locating screw (1), locating spring (2) and locating ball (3) as shown in the figure.

Fig 3: Removing Locating Screw, Locating Spring & Locating Ball
Courtesy of SUZUKI OF AMERICA CORP.

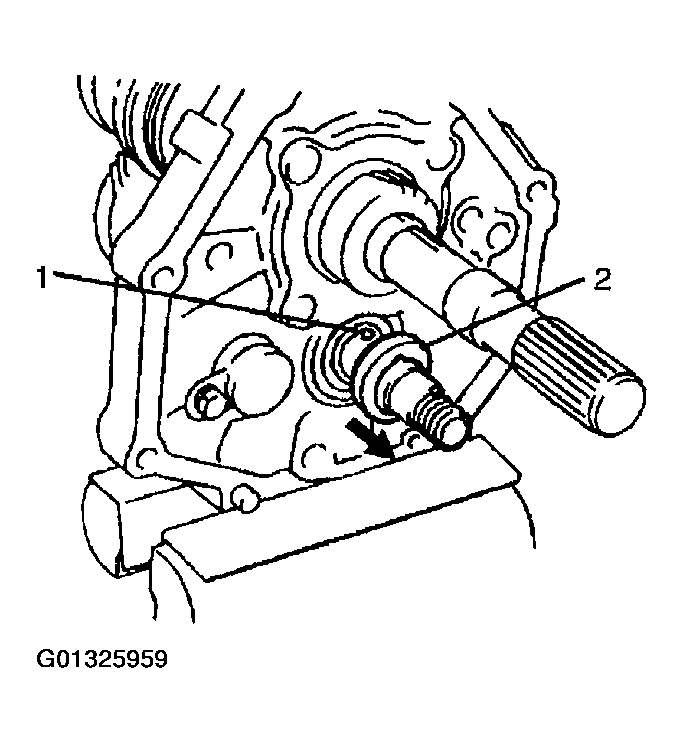

Remove return spring low bolt (1) and return spring reverse bolts (2).

Fig 4: Removing Return Spring Low Bolt
Courtesy of SUZUKI OF AMERICA CORP.

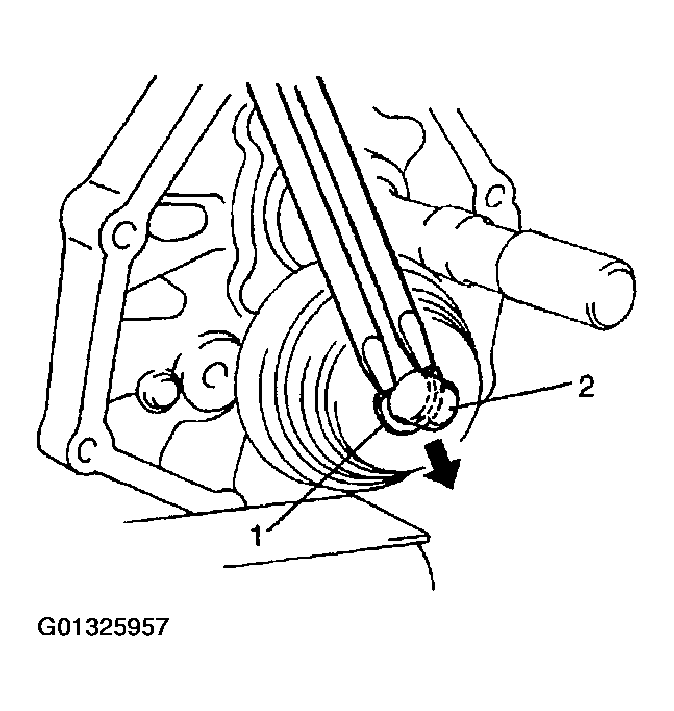

Remove gear shift shaft inner bolt (1)/plug (2).

Fig 5: Removing Gear Shift Shaft Inner Bolt/Plug
Courtesy of SUZUKI OF AMERICA CORP.

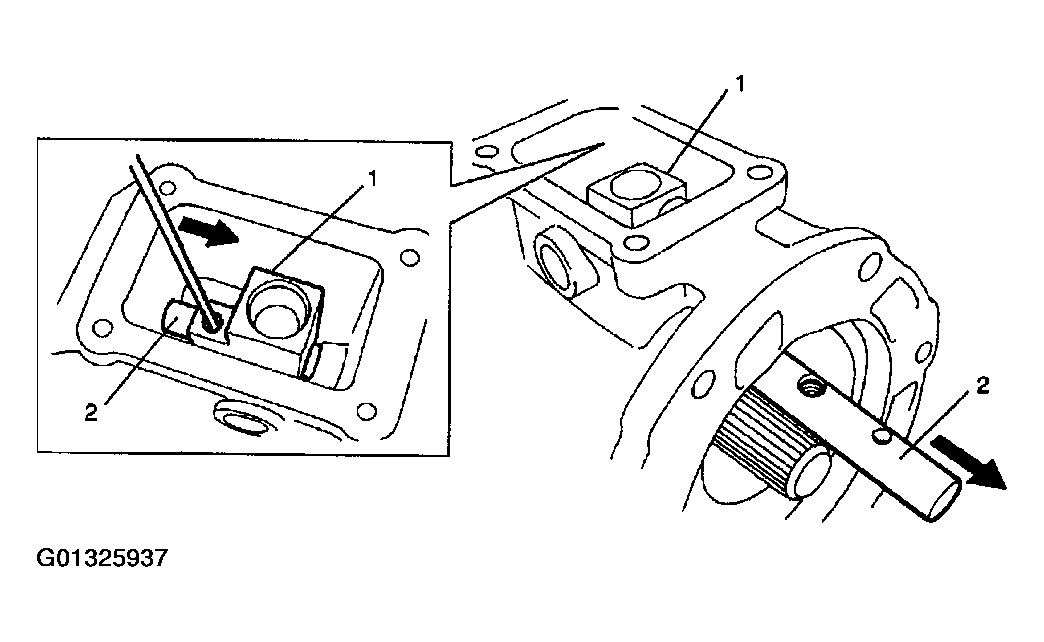

Using bolt hole, pull gear shift inner shaft (2) and then remove gear shift shaft inner lever (1).

Fig 6: Removing Gear Shift Shaft Inner Lever
Courtesy of SUZUKI OF AMERICA CORP.
After removing transmission case bolts/nut, remove transmission rear case (1) from intermediate case (2).
Special tool
1. (A): 09912-34510
Fig 7: Removing Transmission Rear Case From Intermediate Case
Courtesy of SUZUKI OF AMERICA CORP.

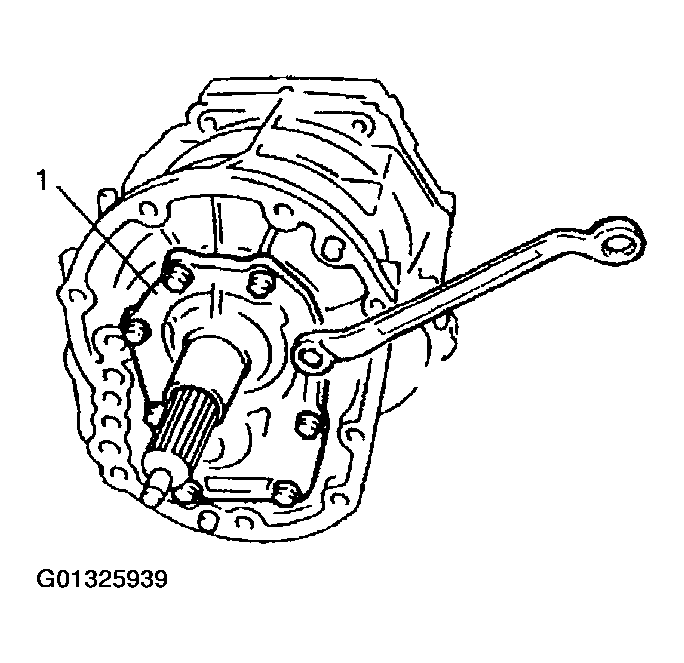

Remove input shaft bearing retainer (1) and gasket.

Fig 8: Removing Input Shaft Bearing Retainer
Courtesy of SUZUKI OF AMERICA CORP.

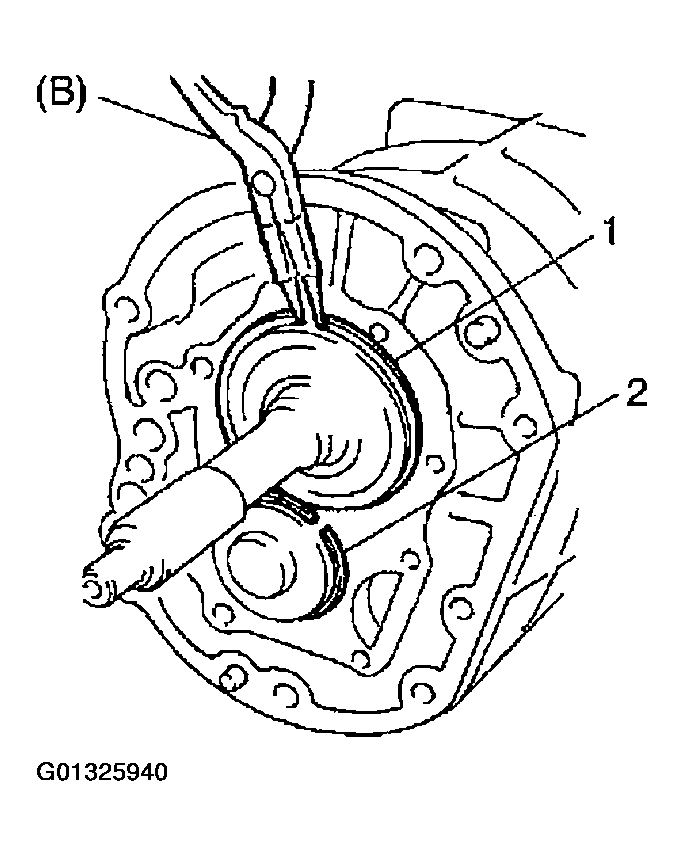

Remove C-rings (1) of input shaft bearing and C-ring (2) of countershaft front bearing.
Special tool
1. (B): 09900-06107
Fig 9: Removing C-Rings
Courtesy of SUZUKI OF AMERICA CORP.

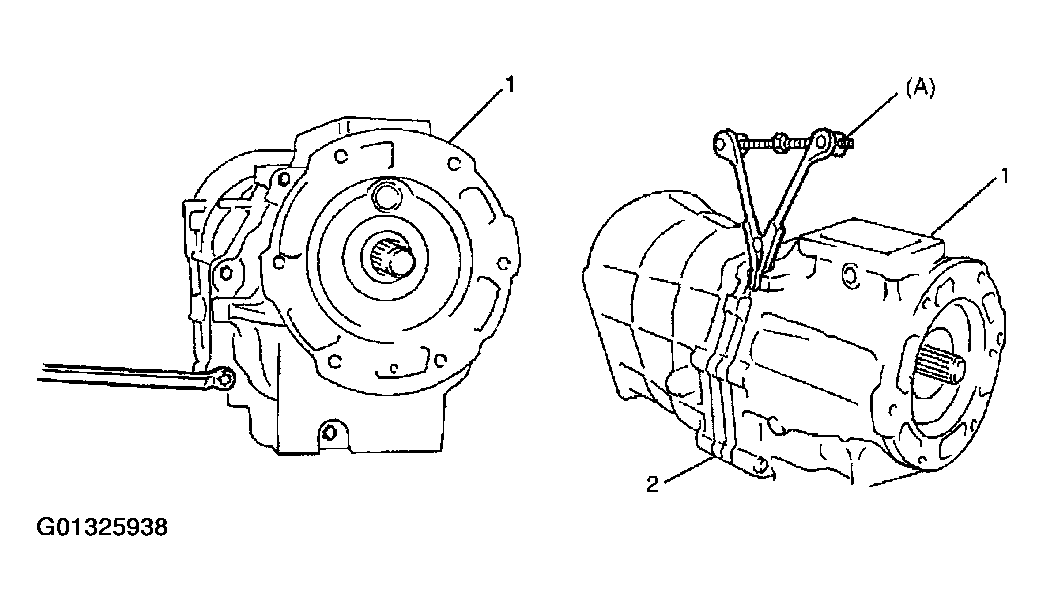

Using special tool (A), separate transmission front case (1) and transmission intermediate case (2).
Special tool
1. (A): 09912-34510
Fig 10: Separating Transmission Front Case & Transmission Intermediate Case
Courtesy of SUZUKI OF AMERICA CORP.

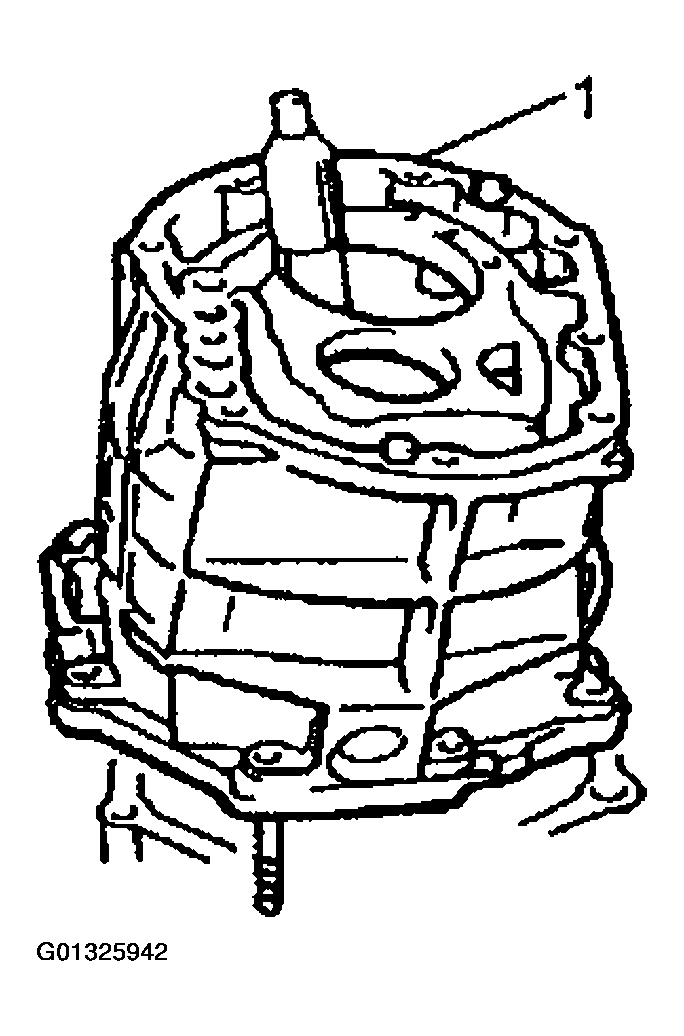

Set transmission on workbench and remove transmission front case (1).
NOTE: To remove transmission front case, tilt it as shown.

Fig 11: Removing Transmission Front Case
Courtesy of SUZUKI OF AMERICA CORP.
Set transmission intermediate case on vise securely.
Remove locating screws (1), locating springs (2) and locating ball (3) as shown in the figure.

Fig 12: Removing Locating Screws, Locating Springs & Locating Ball
Courtesy of SUZUKI OF AMERICA CORP.

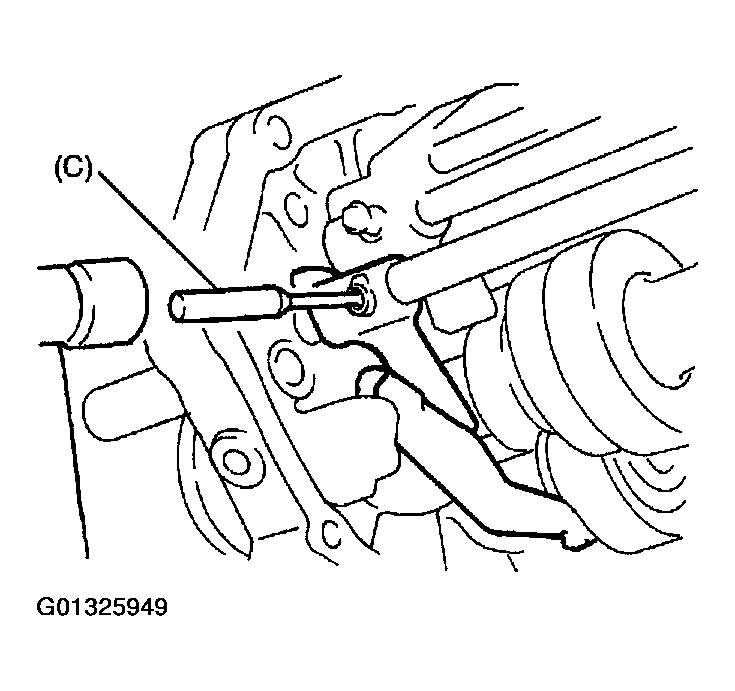

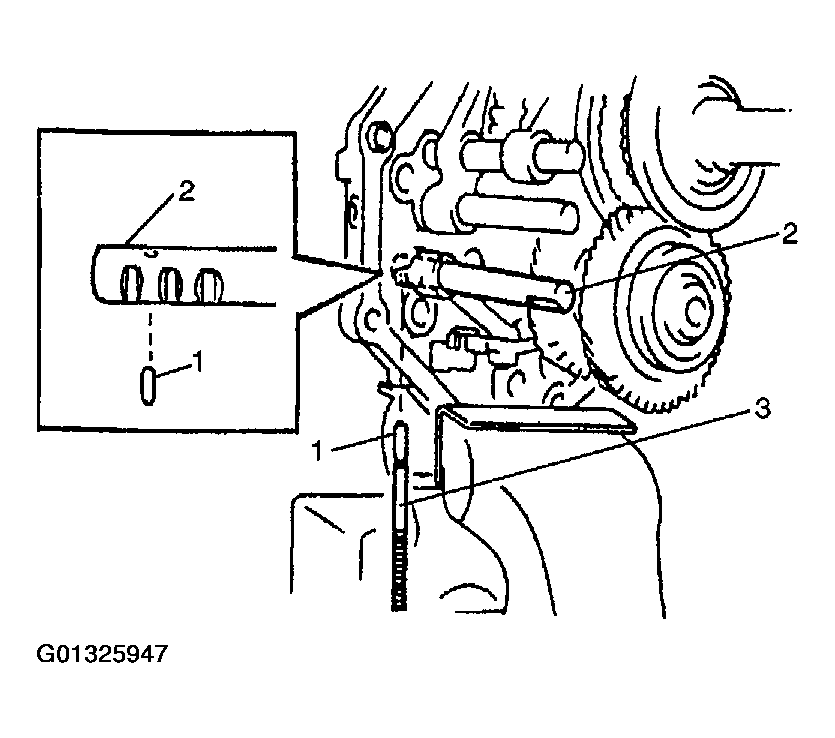

Using special tool (C), remove spring pin and then remove 5th-reverse gear shift shaft (1).
Special tool
1. (C): 09922-85811
Fig 13: Removing Spring Pin
Courtesy of SUZUKI OF AMERICA CORP.

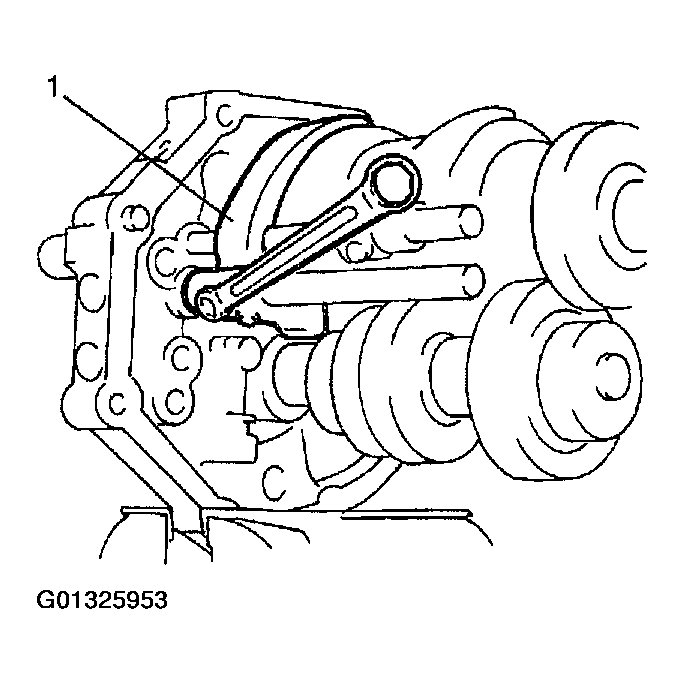

Remove bolt from 5th gear shift fork (1).

Fig 14: Removing Bolt From 5th Gear Shift Fork
Courtesy of SUZUKI OF AMERICA CORP.

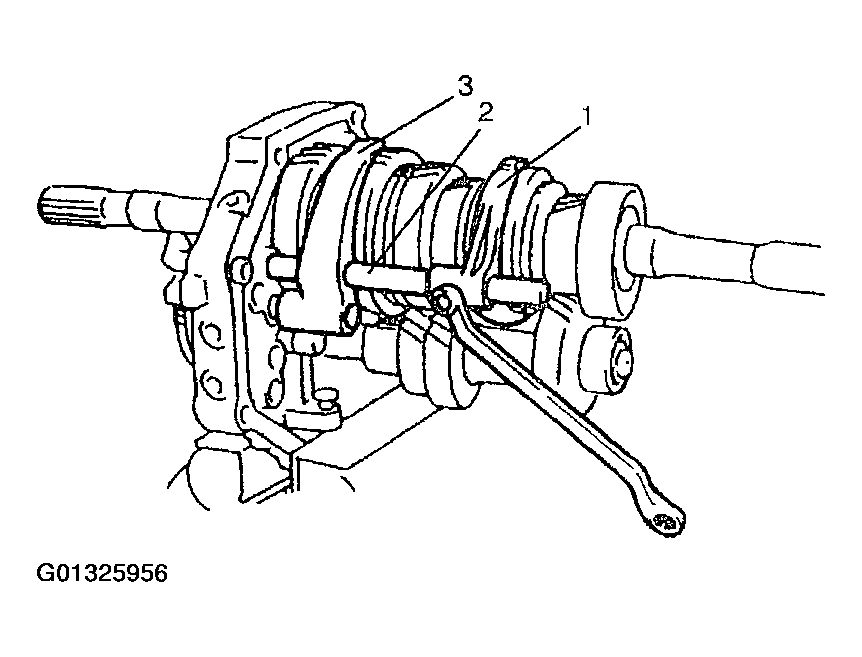

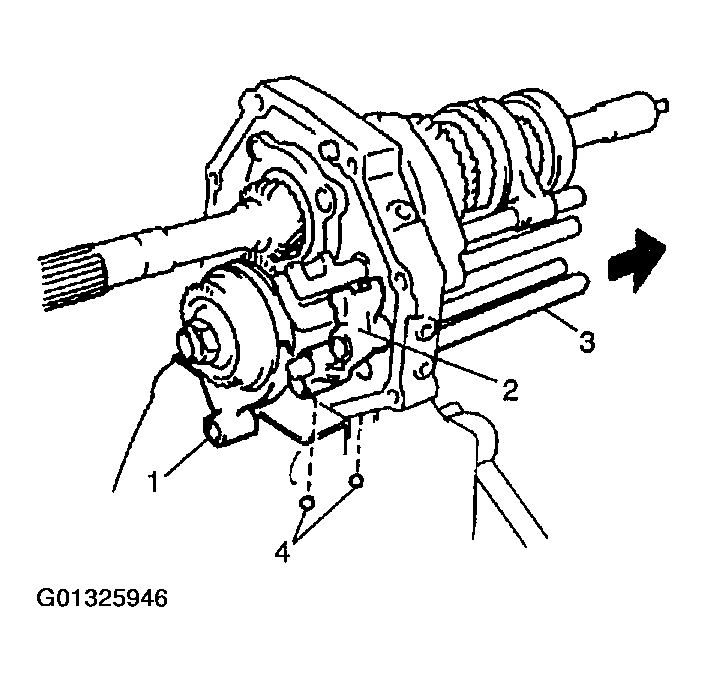

Remove 5th gear shift fork (1), 5th gear shift shaft (3) and reverse gear shift yoke (2).
NOTE: When pulling 5th gear shift shaft (3), place hand so as to catch balls (4) dropping from reverse gear shift yoke (2) and intermediate plate.

Fig 15: Removing 5th Gear Shift Fork
Courtesy of SUZUKI OF AMERICA CORP.
Remove locating roller No. 2 (1) from reverse gear shift shaft (2) by using magnet (3).

Fig 16: Removing Locating Roller No. 2
Courtesy of SUZUKI OF AMERICA CORP.

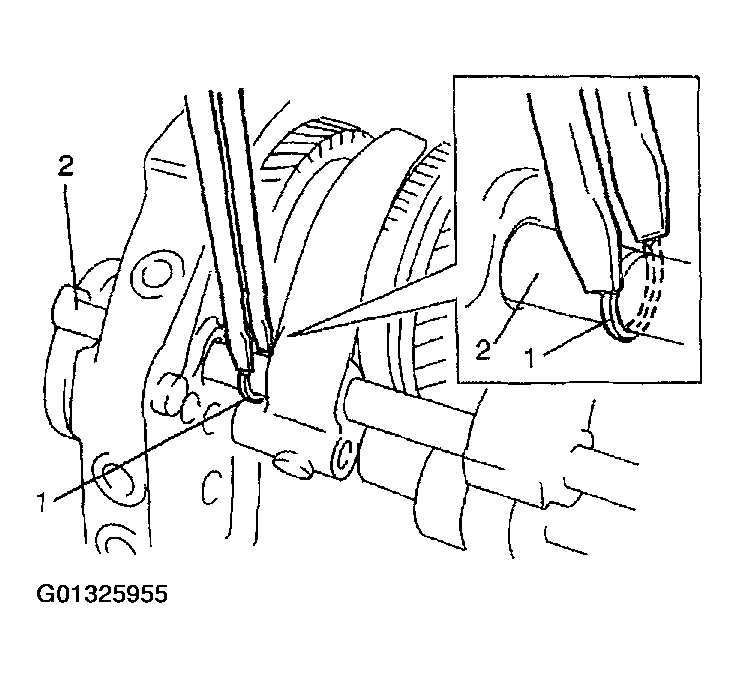

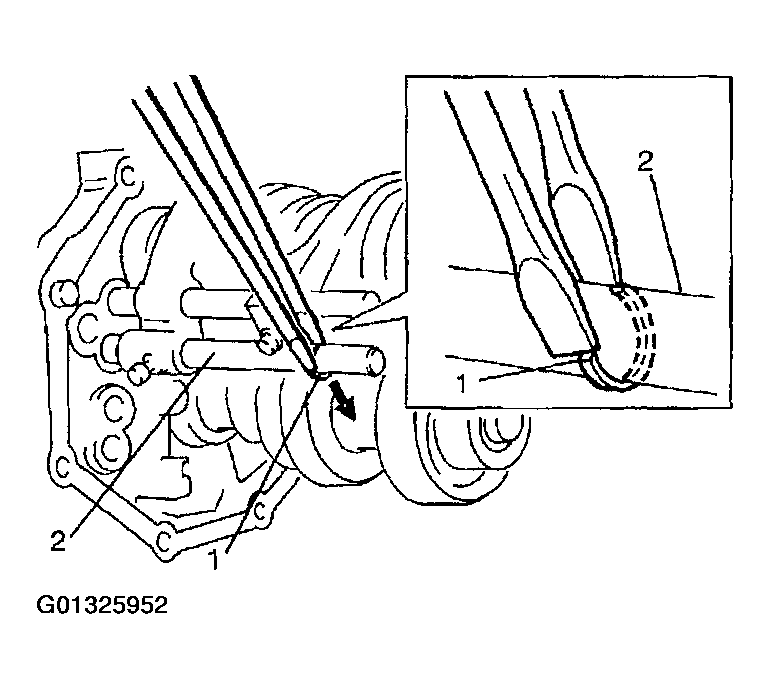

Remove circlip (1) from reverse gear shift shaft (2) as shown in the figure.

Fig 17: Removing Circlip
Courtesy of SUZUKI OF AMERICA CORP.

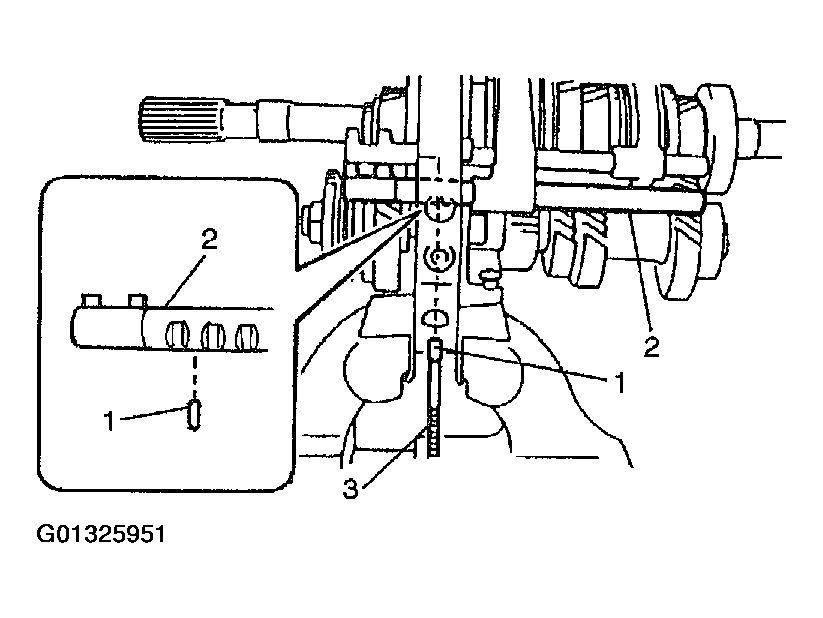

Remove spring pin from reverse gear shift link component.
Special tool
1. (C): 09922-85811
Fig 18: Removing Spring Pin
Courtesy of SUZUKI OF AMERICA CORP.

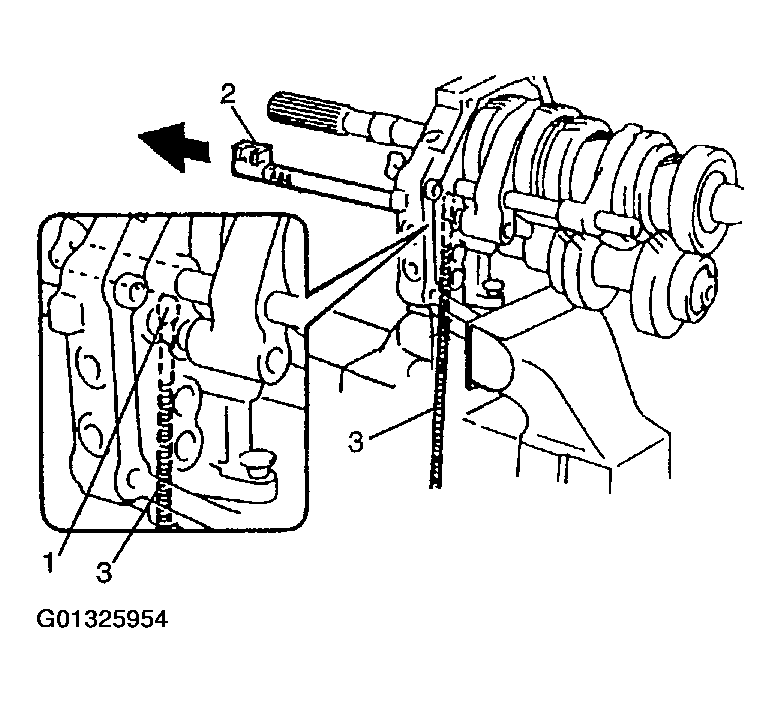

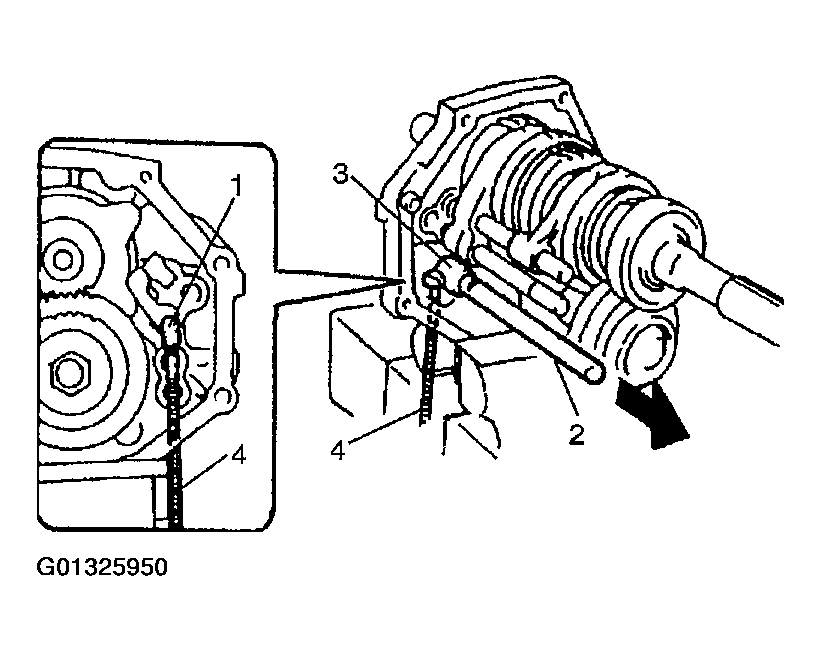

Remove reverse gear shift shaft (2), locating roller No. 1 (1), and reverse gear shift link component (3).
NOTE: When pulling gear shaft, hold locating roller No. 1 (1) with magnet (4) to prevent it from falling.
Disassemble reverse gear shift link component (3) by removing E-rings.

Fig 19: Removing E-Rings
Courtesy of SUZUKI OF AMERICA CORP.
Remove locating roller No. 2 (1) from low gear shift shaft (2) by using magnet (3).

Fig 20: Removing Locating Roller No. 2
Courtesy of SUZUKI OF AMERICA CORP.

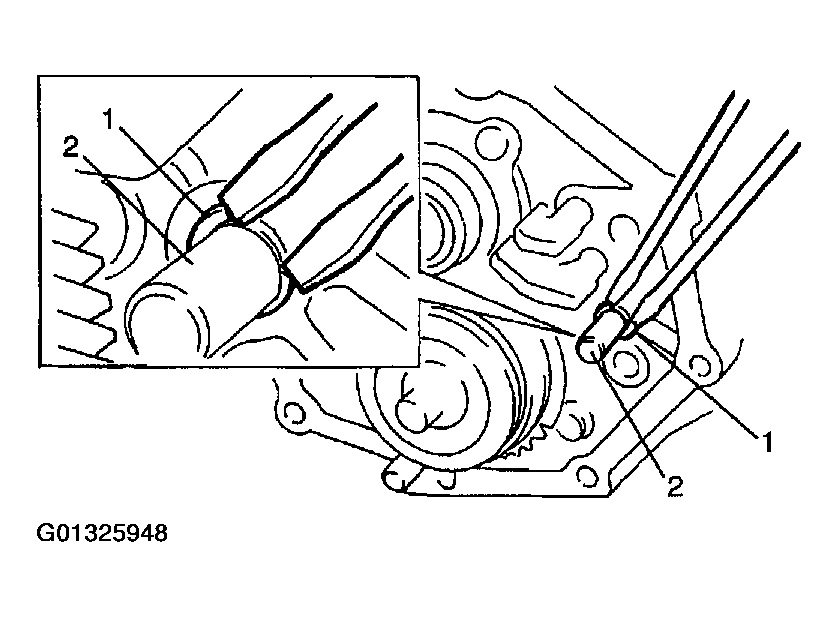

Remove circlip (1) from low gear shift shaft (2) as shown in the figure.

Fig 21: Removing Circlip
Courtesy of SUZUKI OF AMERICA CORP.
Remove bolt from low speed gear shift fork (1).

Fig 22: Removing Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove low gear shift shaft (2) and locating roller No. 1 (1).
NOTE: When pulling gear shaft (2), hold locating roller No. 1 (1) with magnet (3) to prevent it from falling.

Fig 23: Removing Low Gear Shift Shaft & Locating Roller No. 1
Courtesy of SUZUKI OF AMERICA CORP.
Remove circlip (1) from high gear shift shaft (2) as shown in the figure.

Fig 24: Removing Circlip
Courtesy of SUZUKI OF AMERICA CORP.
Remove bolt from high speed gear shift fork (1).
Remove high gear shift shaft (2), high speed gear shift fork (1) and low speed gear shift fork (3).

Fig 25: Removing High Gear Shift Shaft
Courtesy of SUZUKI OF AMERICA CORP.
Remove circlip (1) from countershaft (2) as shown in the figure.

Fig 26: Removing Circlip
Courtesy of SUZUKI OF AMERICA CORP.

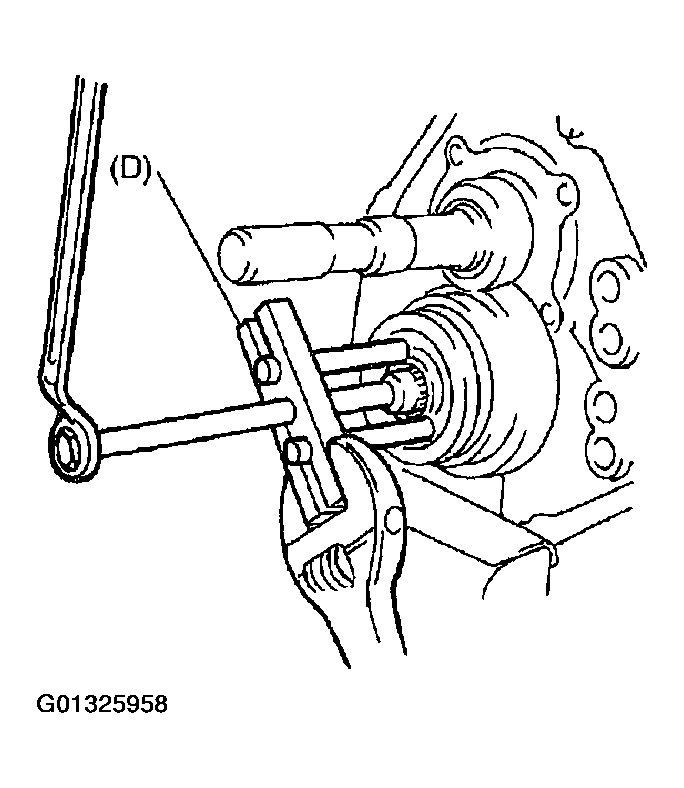

Remove 5th speed synchronizer dog by using special tool.
Special tool
1. (D): 09941-84510
Fig 27: Removing 5th Speed Synchronizer Dog
Courtesy of SUZUKI OF AMERICA CORP.
Remove synchronizer ring, needle bearing and countershaft 5th gear.
Remove thrust washer (2) and ball (1).

Fig 28: Removing Thrust Washer & Ball
Courtesy of SUZUKI OF AMERICA CORP.

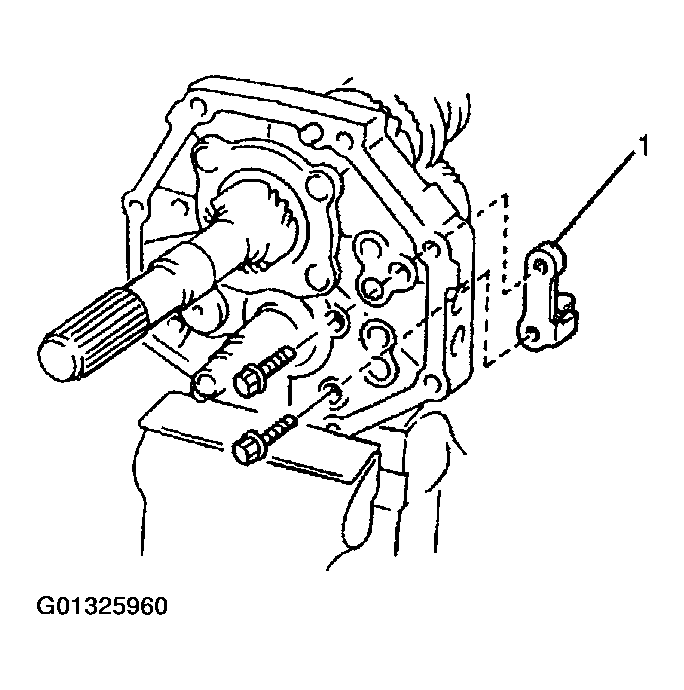

Remove reverse link stay (1) from intermediate case.

Fig 29: Removing Reverse Link Stay
Courtesy of SUZUKI OF AMERICA CORP.

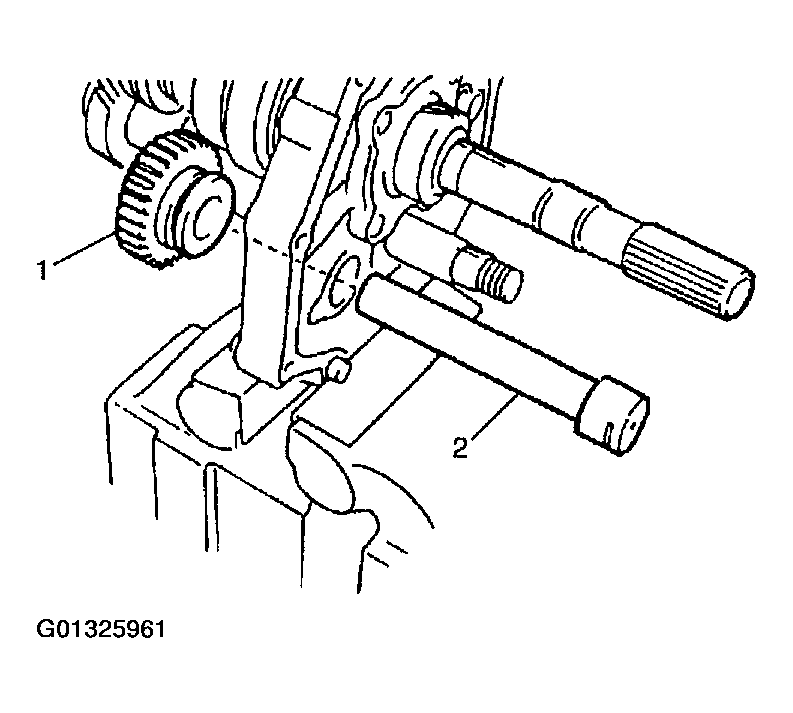

Remove reverse idle gear (1) and shaft (2).

Fig 30: Removing Reverse Idle Gear & Shaft
Courtesy of SUZUKI OF AMERICA CORP.

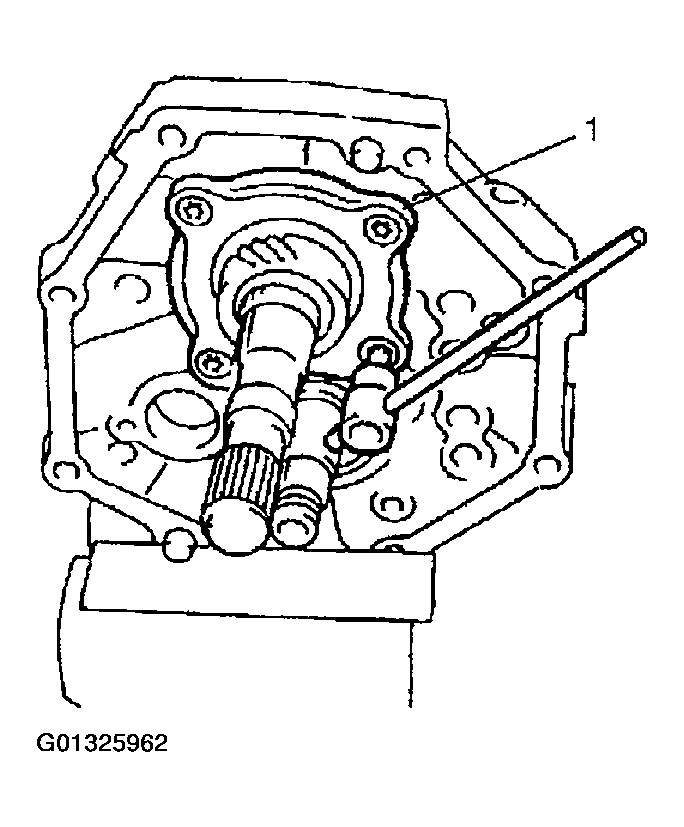

Remove main and countershaft bearing plate (1).

Fig 31: Removing Main & Countershaft Bearing Plate
Courtesy of SUZUKI OF AMERICA CORP.

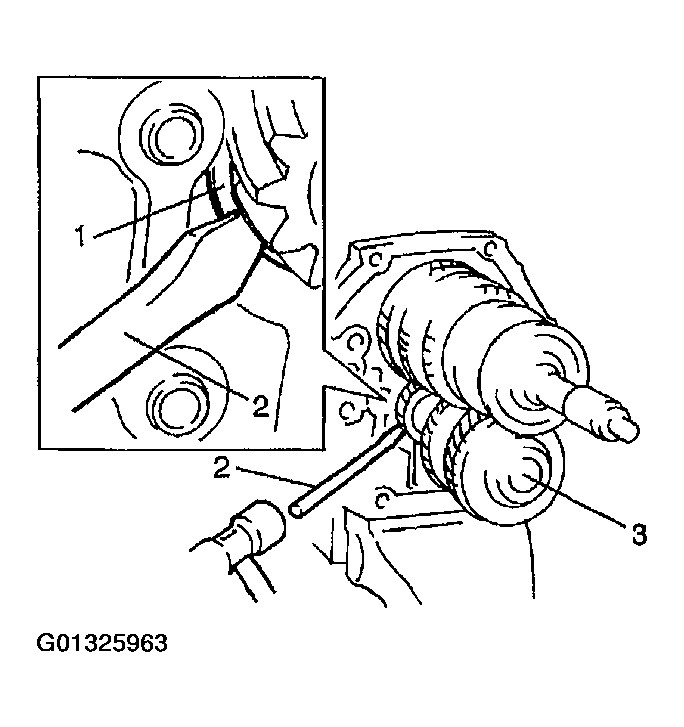

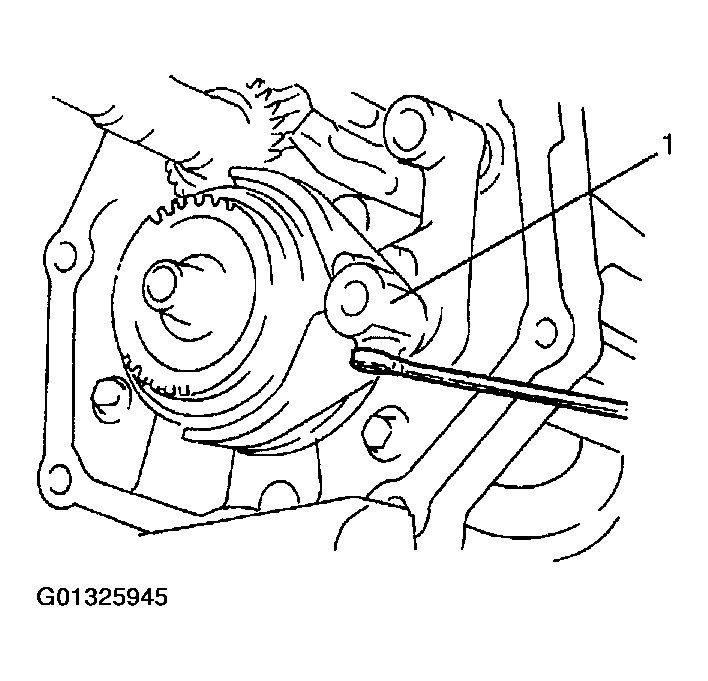

Using rod (2) and hammer, remove countershaft rear bearing (1) and countershaft (3).
NOTE: This removal requires 2 persons. One should hold countershaft (3) and the other should remove bearing (1) by using rod (2) and hammer.

Fig 32: Removing Countershaft Rear Bearing & Countershaft
Courtesy of SUZUKI OF AMERICA CORP.

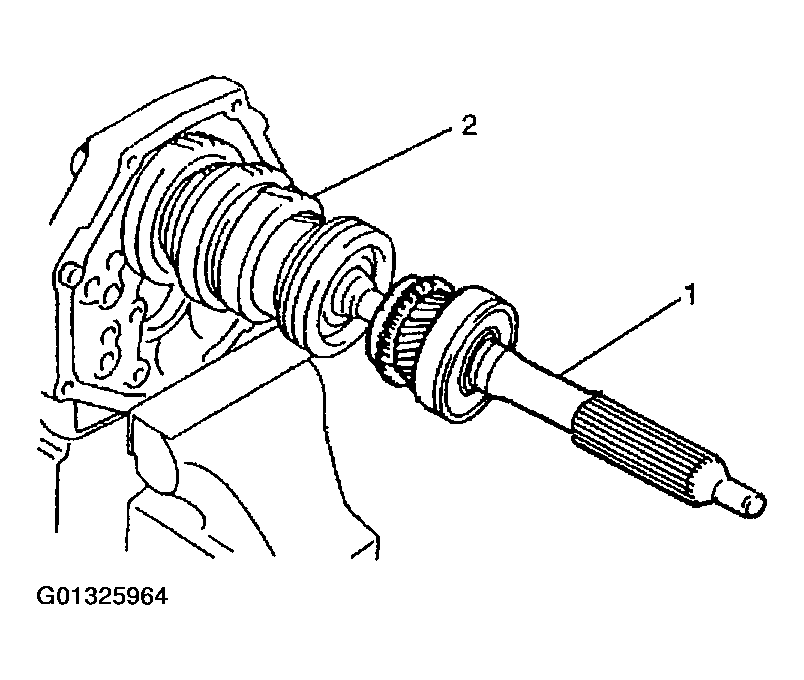

Remove input shaft assembly (1) with synchronizer ring from main shaft assembly (2).
NOTE: When removing input shaft, be careful not to drop bearing roller.

Fig 33: Removing Input Shaft Assembly
Courtesy of SUZUKI OF AMERICA CORP.

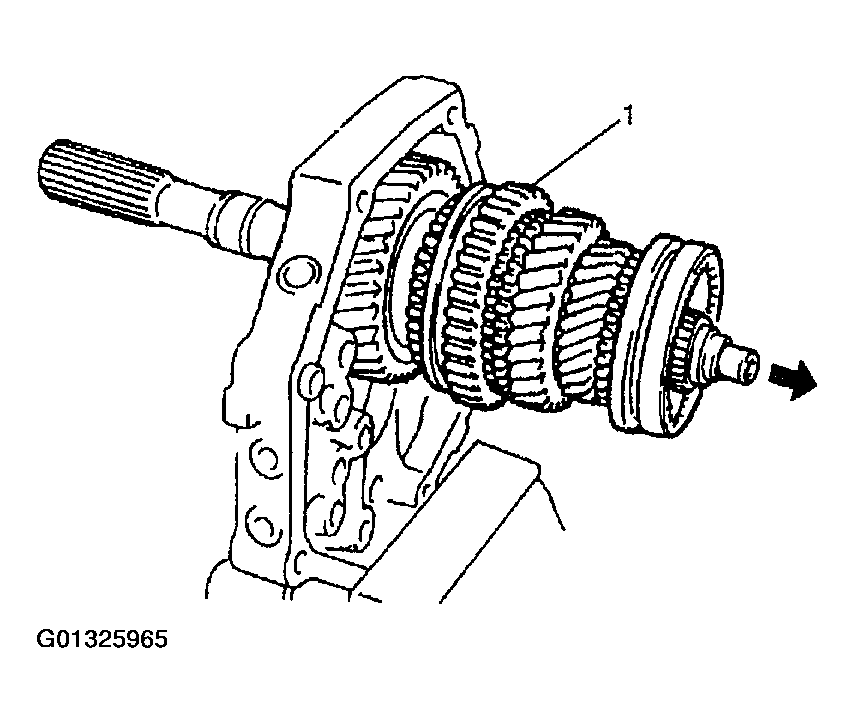

Remove C-ring of main shaft and pull out main shaft assembly (1).
NOTE: If intermediate case is engaged with bearing firmly, tap front face of intermediate case with plastic hammer lightly as it will cause main shaft assembly to come off forward.

Fig 34: Pulling Out Main Shaft Assembly
Courtesy of SUZUKI OF AMERICA CORP.
