Diagnostic Procedures
For diagnosis and repair, see
Fig 1
,
Fig 2
and
Fig 3
.

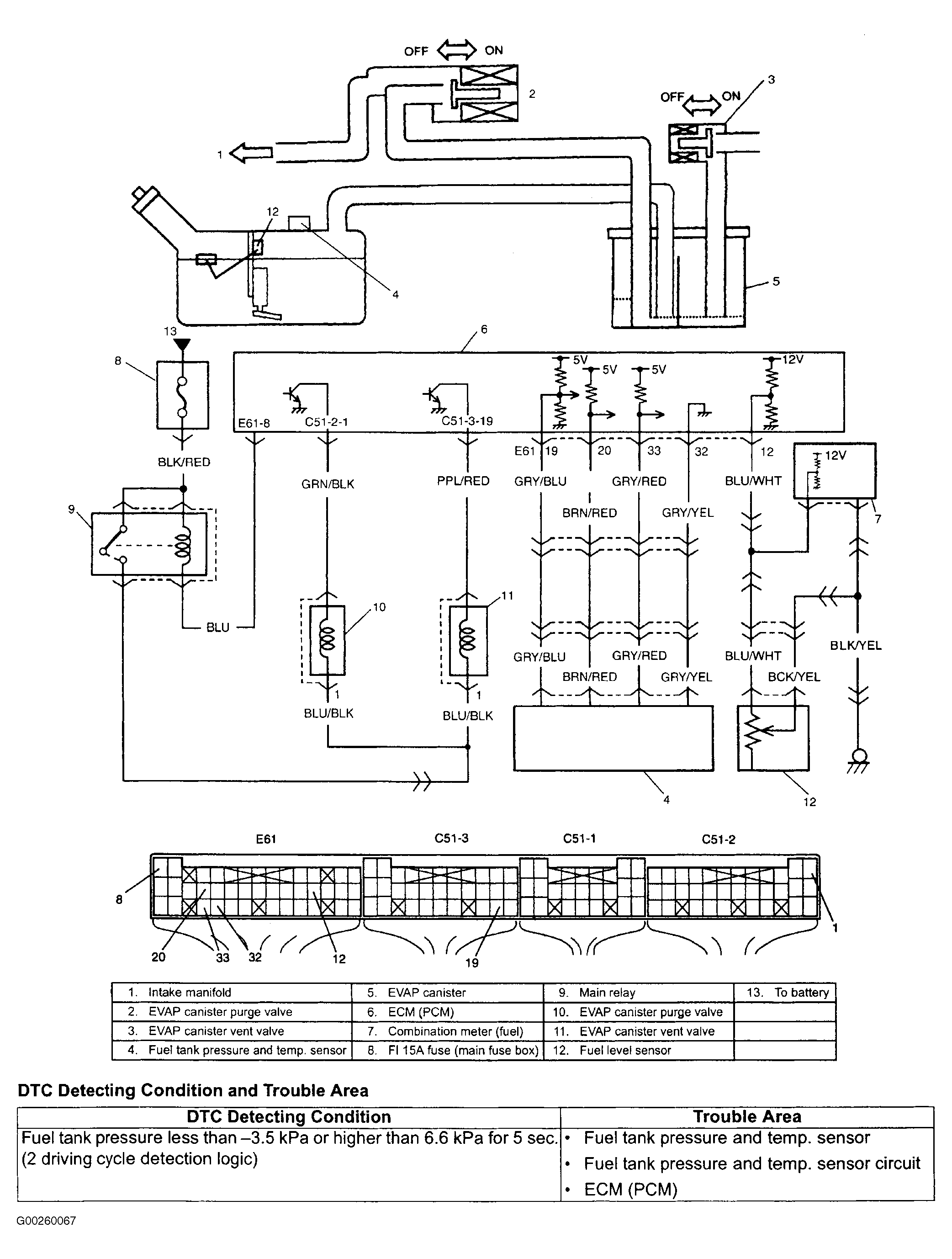

Fig 1: DTC P0451 Diagnostic Procedure (1 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

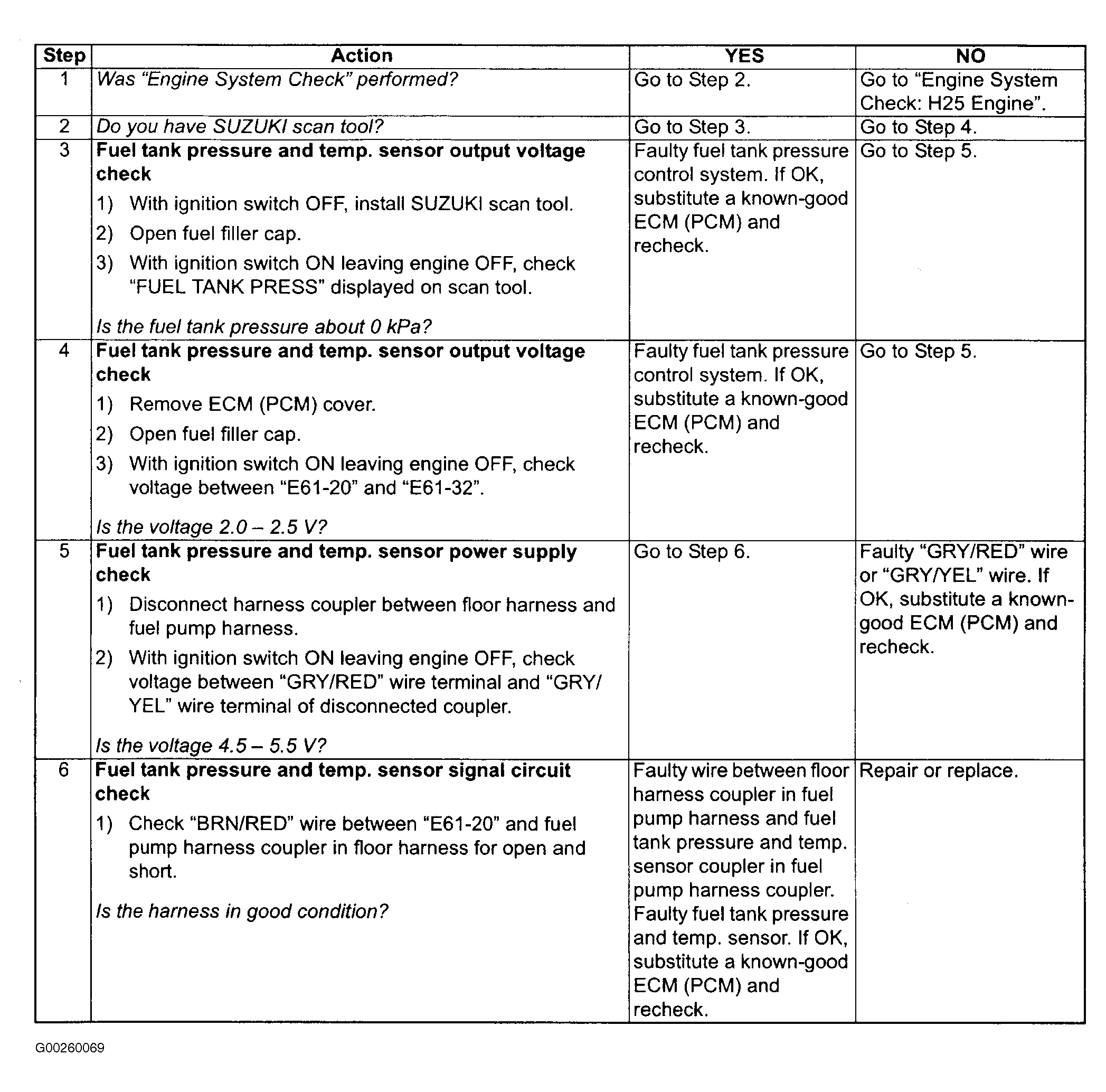

Fig 2: DTC P0451 Diagnostic Procedure (2 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.

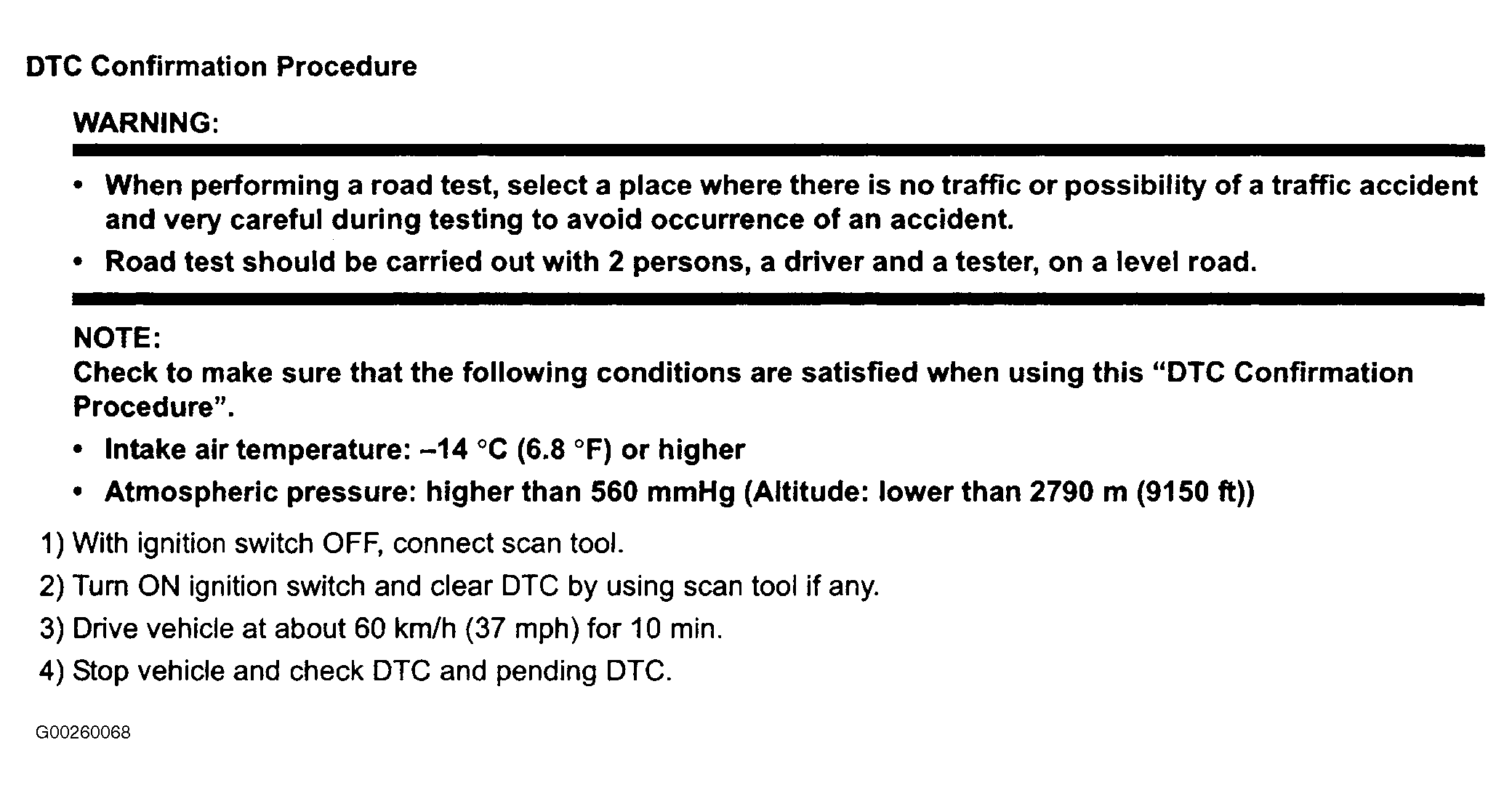

Fig 3: DTC P0451 Diagnostic Procedure (3 Of 3)
Courtesy of SUZUKI OF AMERICA CORP.
