Diagnostic Procedures

For diagnosis and repair, see Fig 1 and Fig 2 .

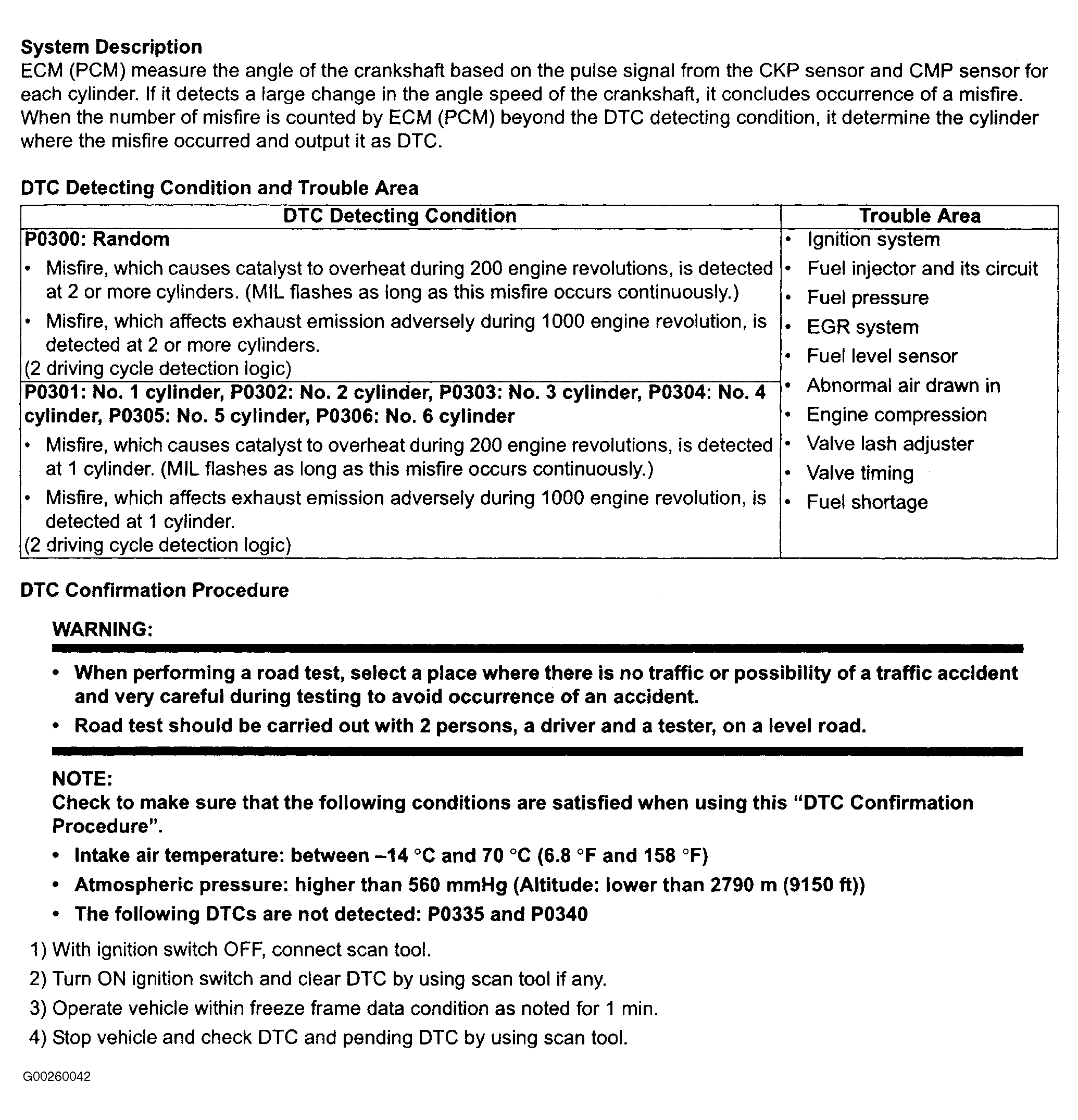

Fig 1: DTC P0300/P0301/P0302/P0303/P0304/P0305/P0306 Diagnostic Procedure (1 Of 2)
G00260042Courtesy of SUZUKI OF AMERICA CORP.

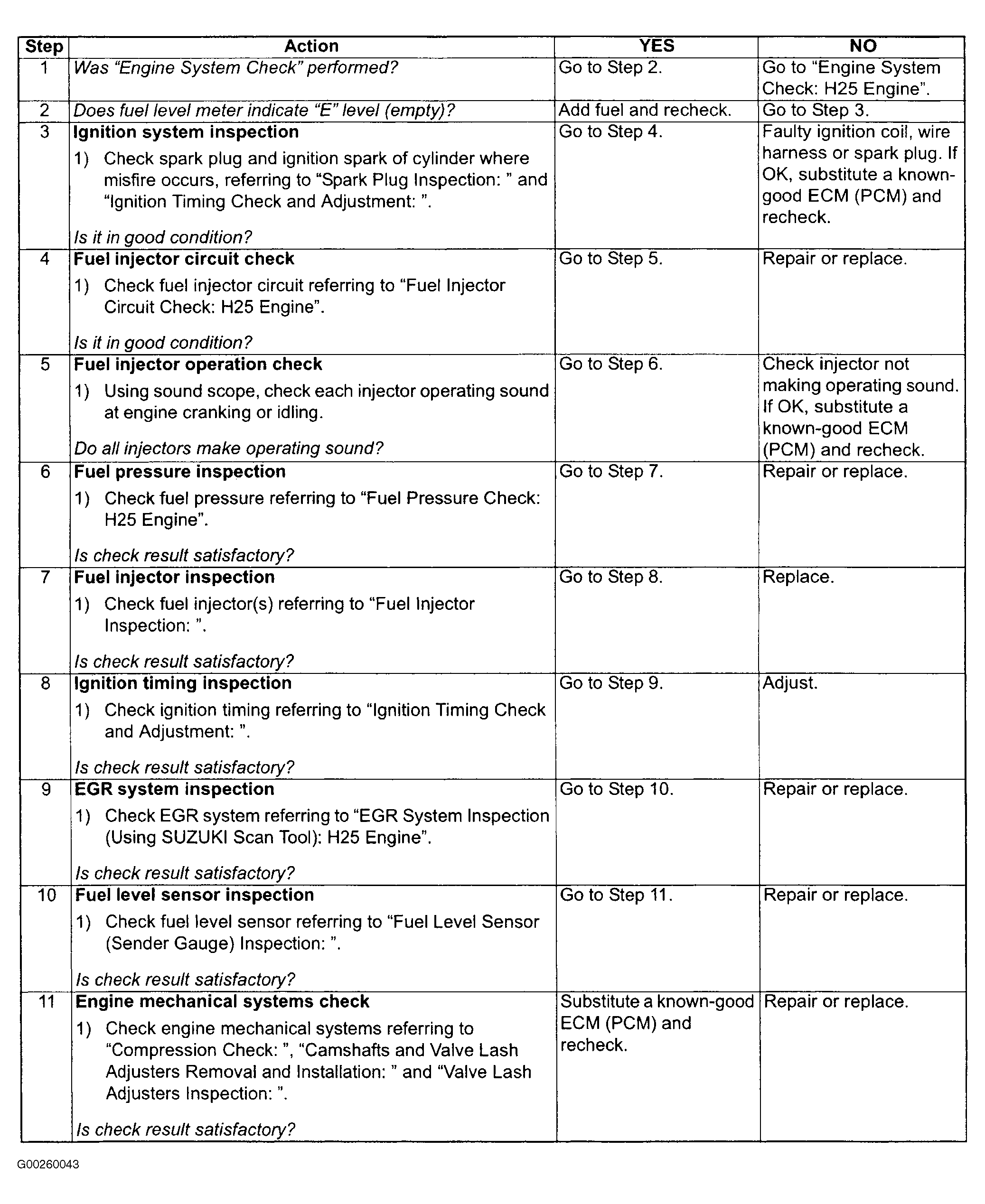

Fig 2: DTC P0300/P0301/P0302/P0303/P0304/P0305/P0306 Diagnostic Procedure (2 Of 2)
G00260043Courtesy of SUZUKI OF AMERICA CORP.
