Fuse: Locations

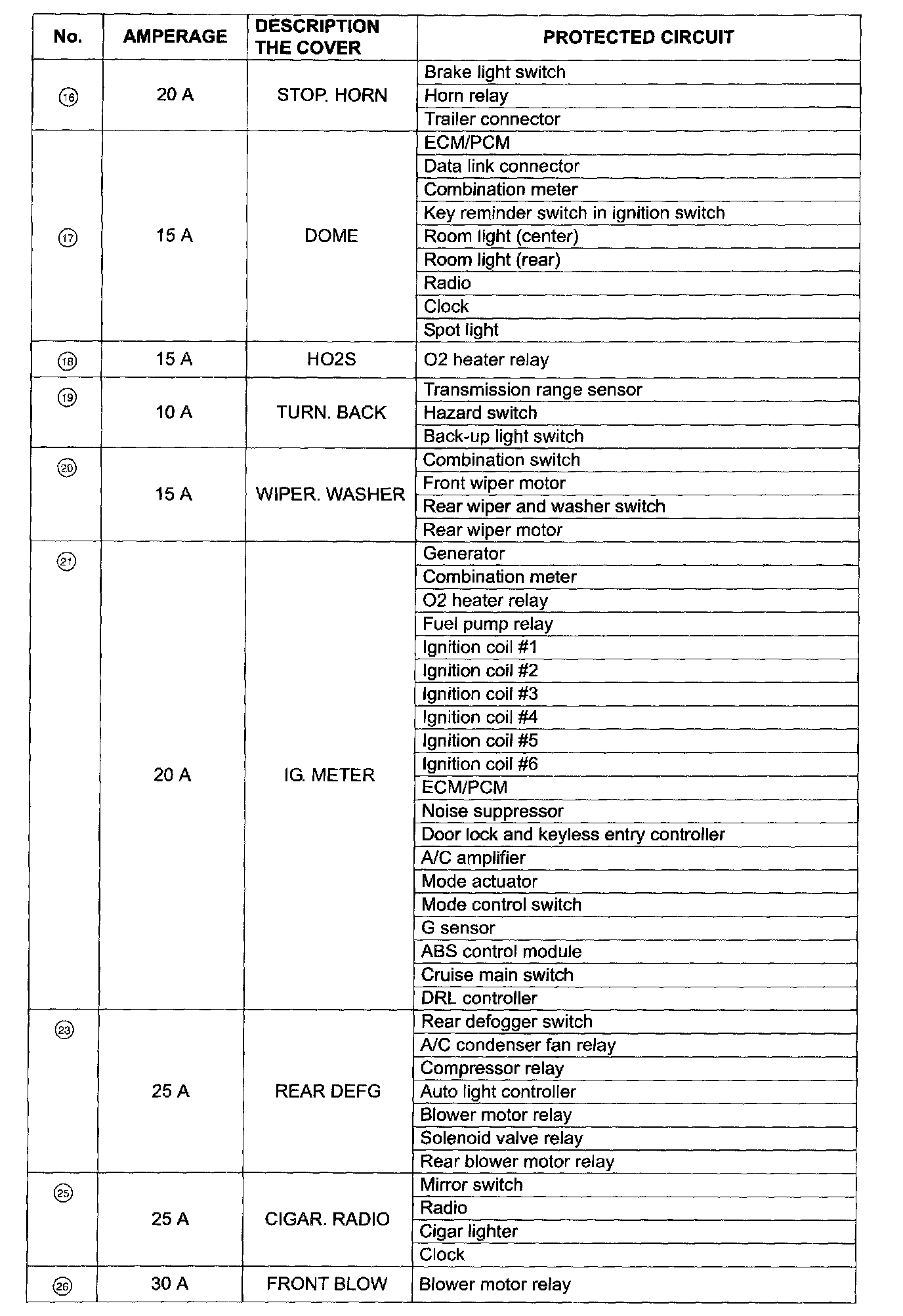

Fuse No. 16 - 28:

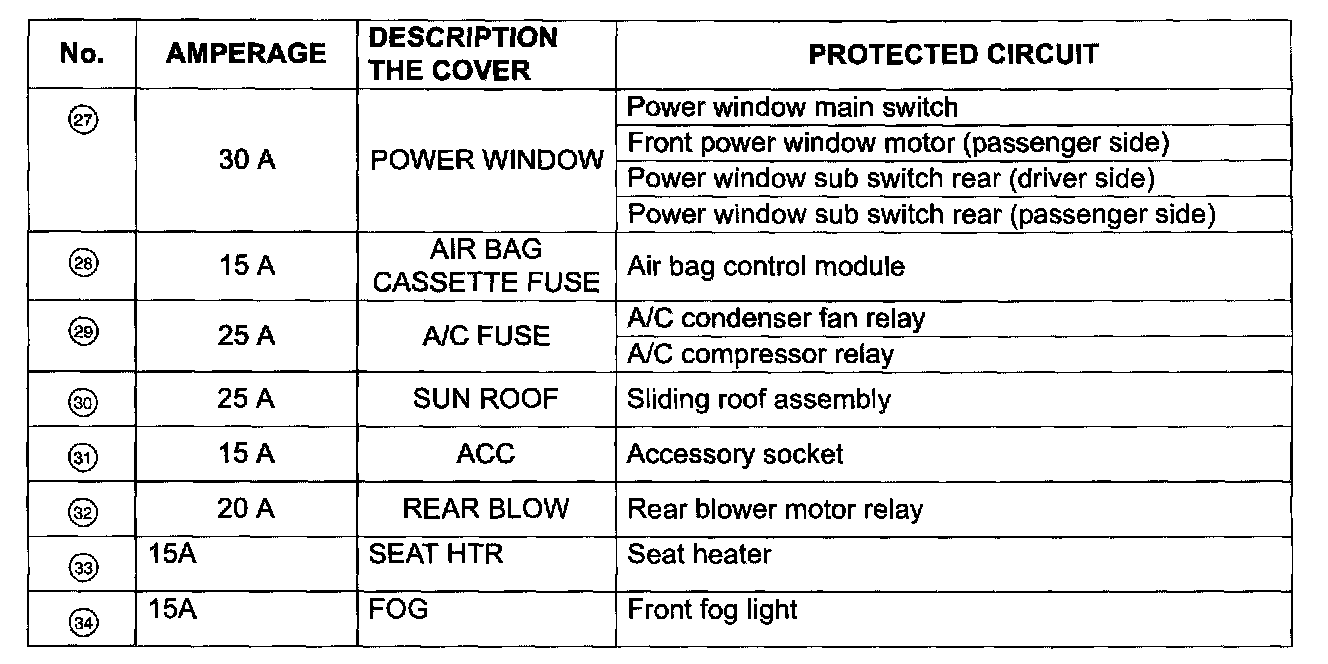

Fuse No. 27 - 34:

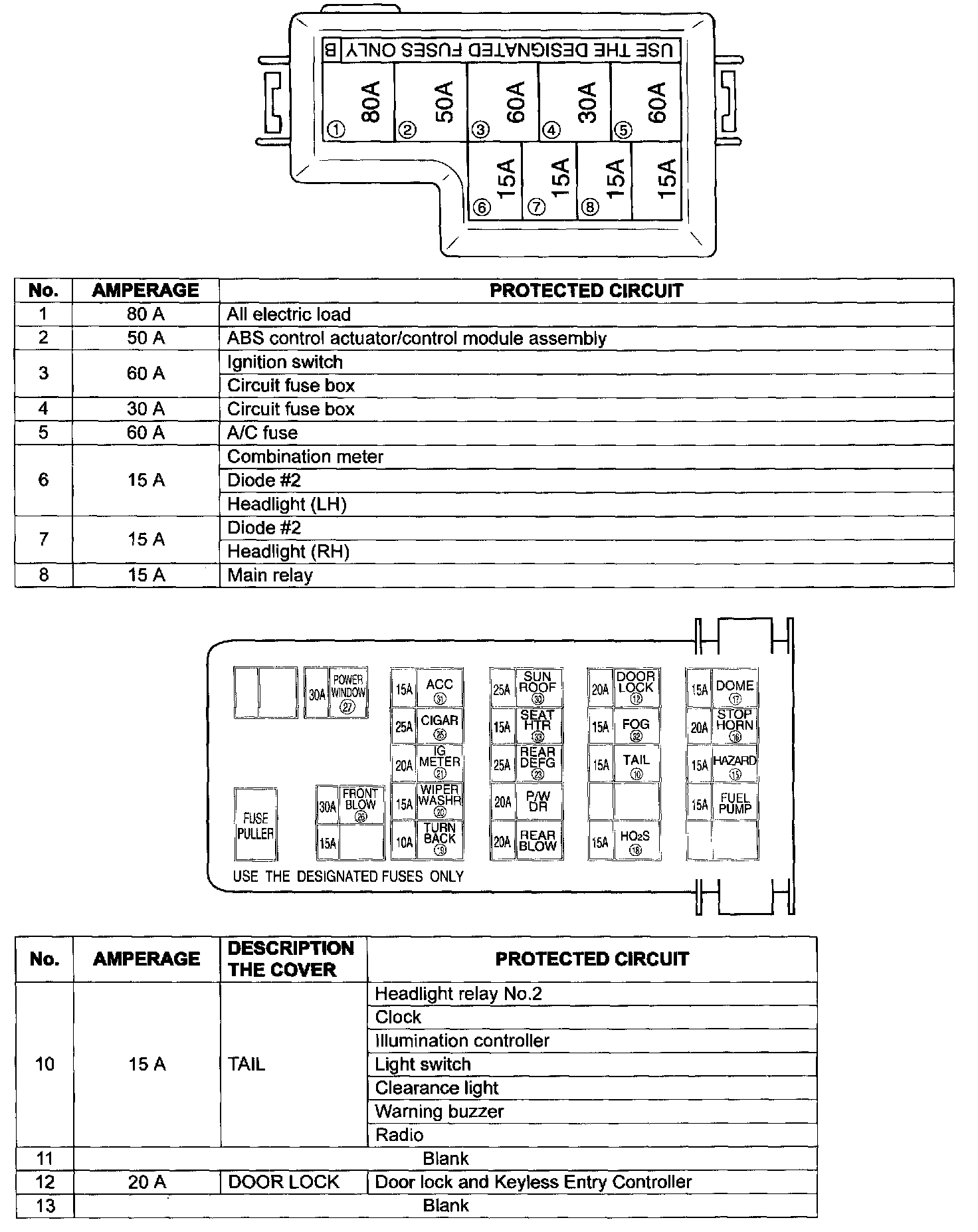

Fuses In Main Fuse Box Part 1:

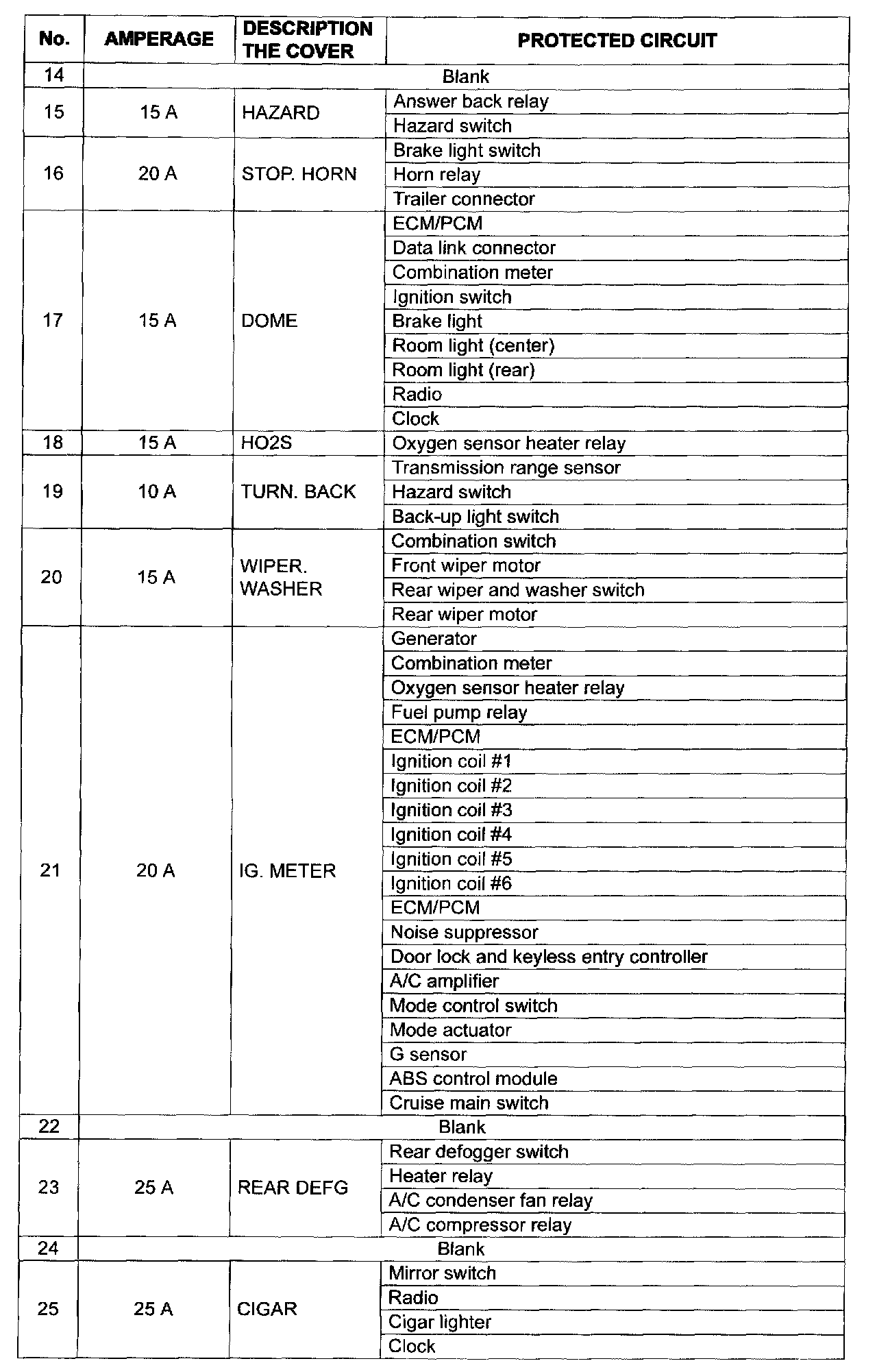

Fuses In Main Fuse Box Part 2:



Fuses In Main Fuse Box Part 3:



Engine Room Part 1:
