Heated Glass Element: Diagrams

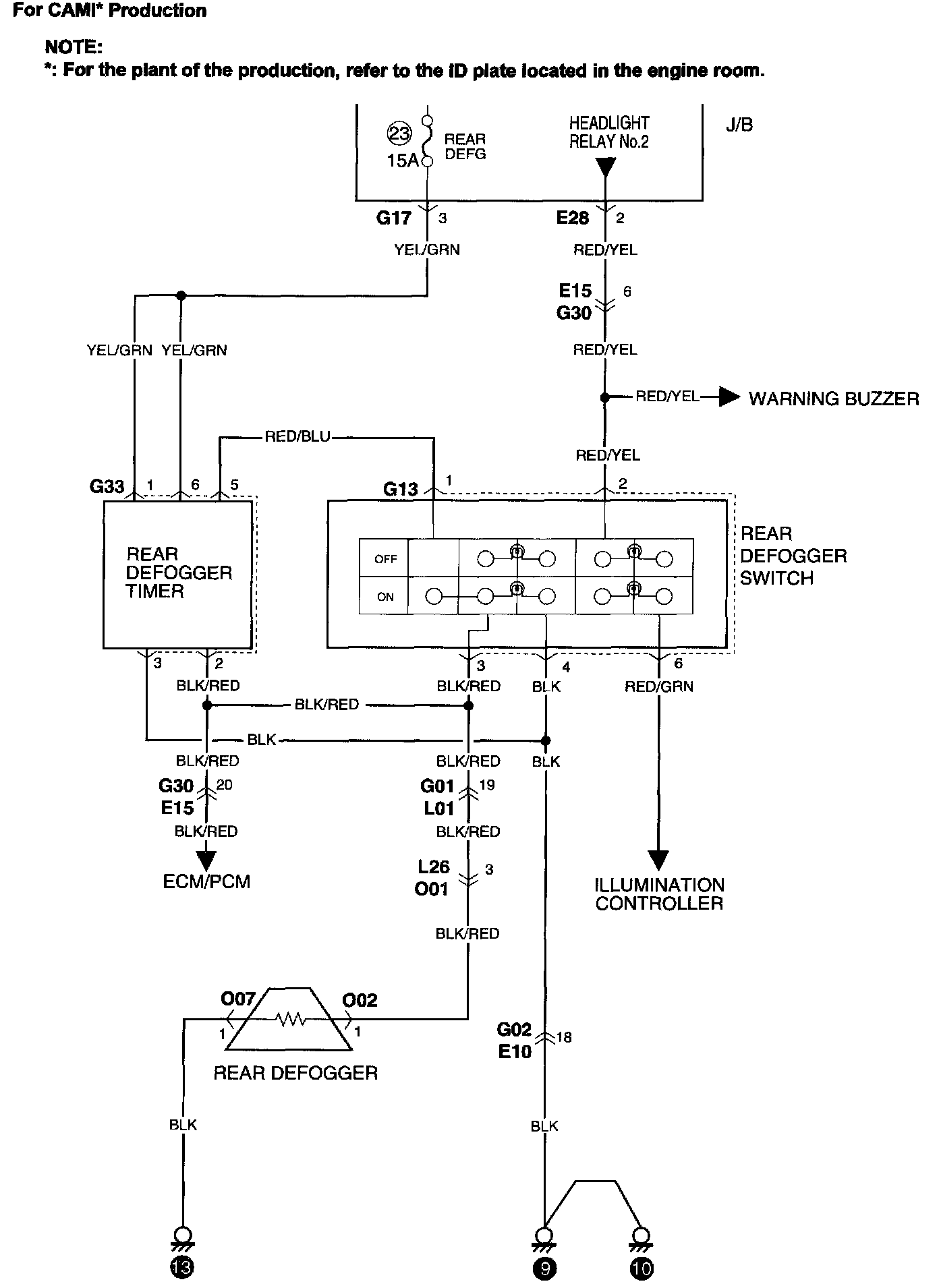

Rear Window Defogger Circuit Diagram - For CAMI Production:

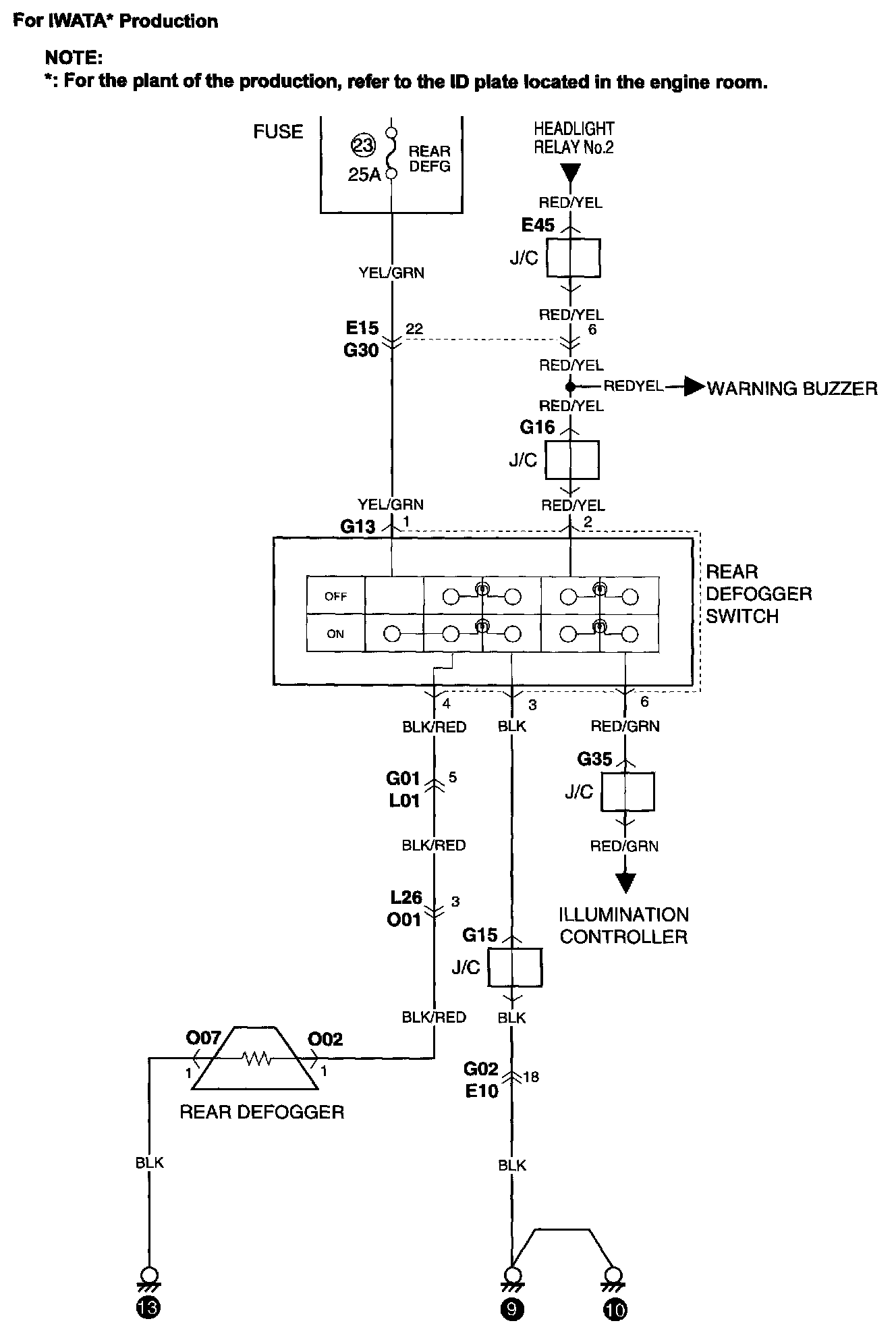

Rear Window Defogger Circuit Diagram - For IWATA Production:
