Keyless Entry: Diagrams

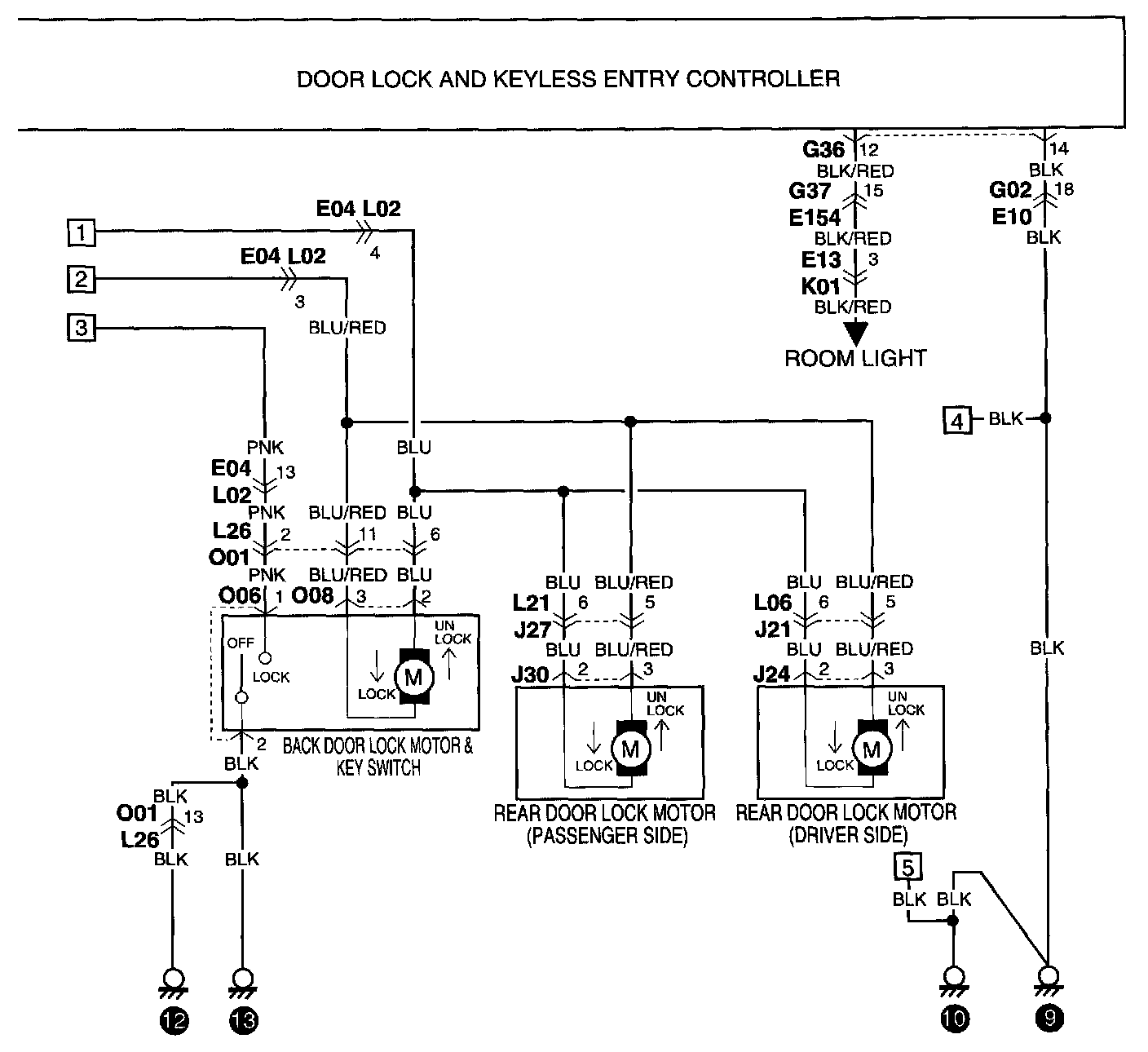

Power Door Lock Circuit Diagram - If Equipped With Keyless Entry Part 1:

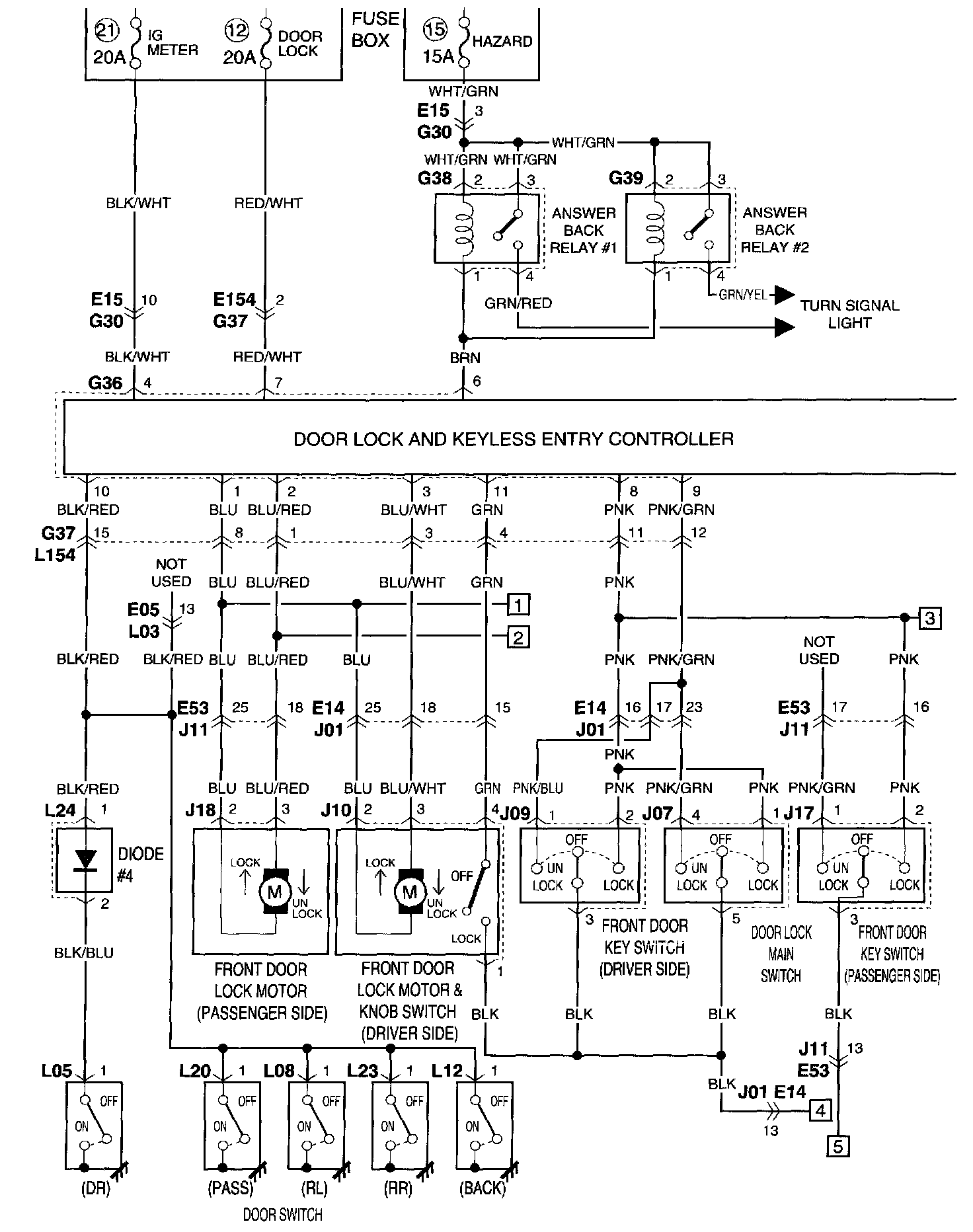

Power Door Lock Circuit Diagram - If Equipped With Keyless Entry Part 2:
