Select Cable: Installation
Install select cable by reversing removal procedure. The important steps in installation are as follows.
- Apply grease to pin and cable joint.

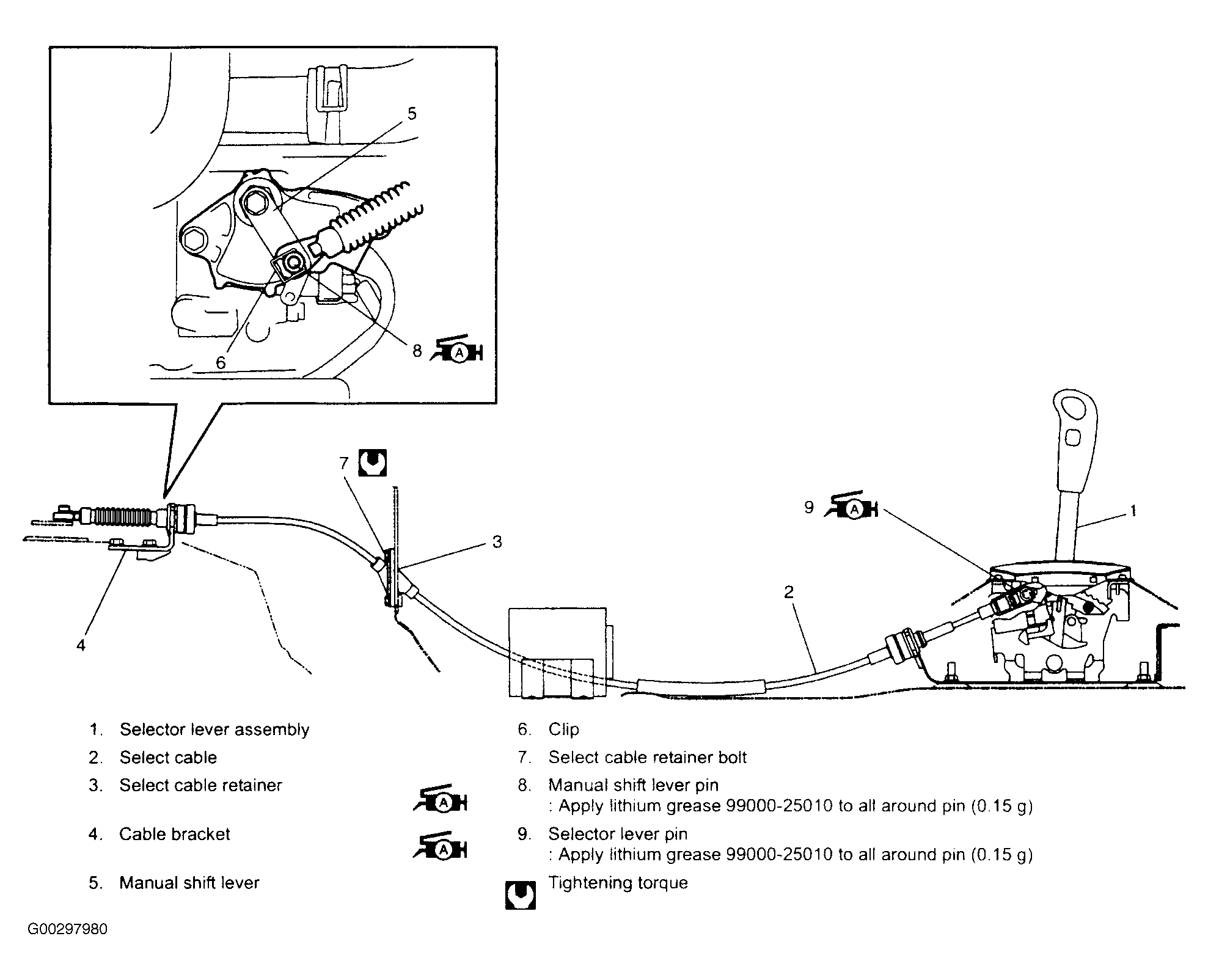

- Tighten bolts in upper figure to specified torque.
- Adjusting procedure is as follows.
