Valve Body Assembly Disassembly and Reassembly: Disassembly

1. Pull out manual valve.
2. Remove solenoid valves with O-ring by removing bolts.

NOTE: Never reuse removed O-ring.

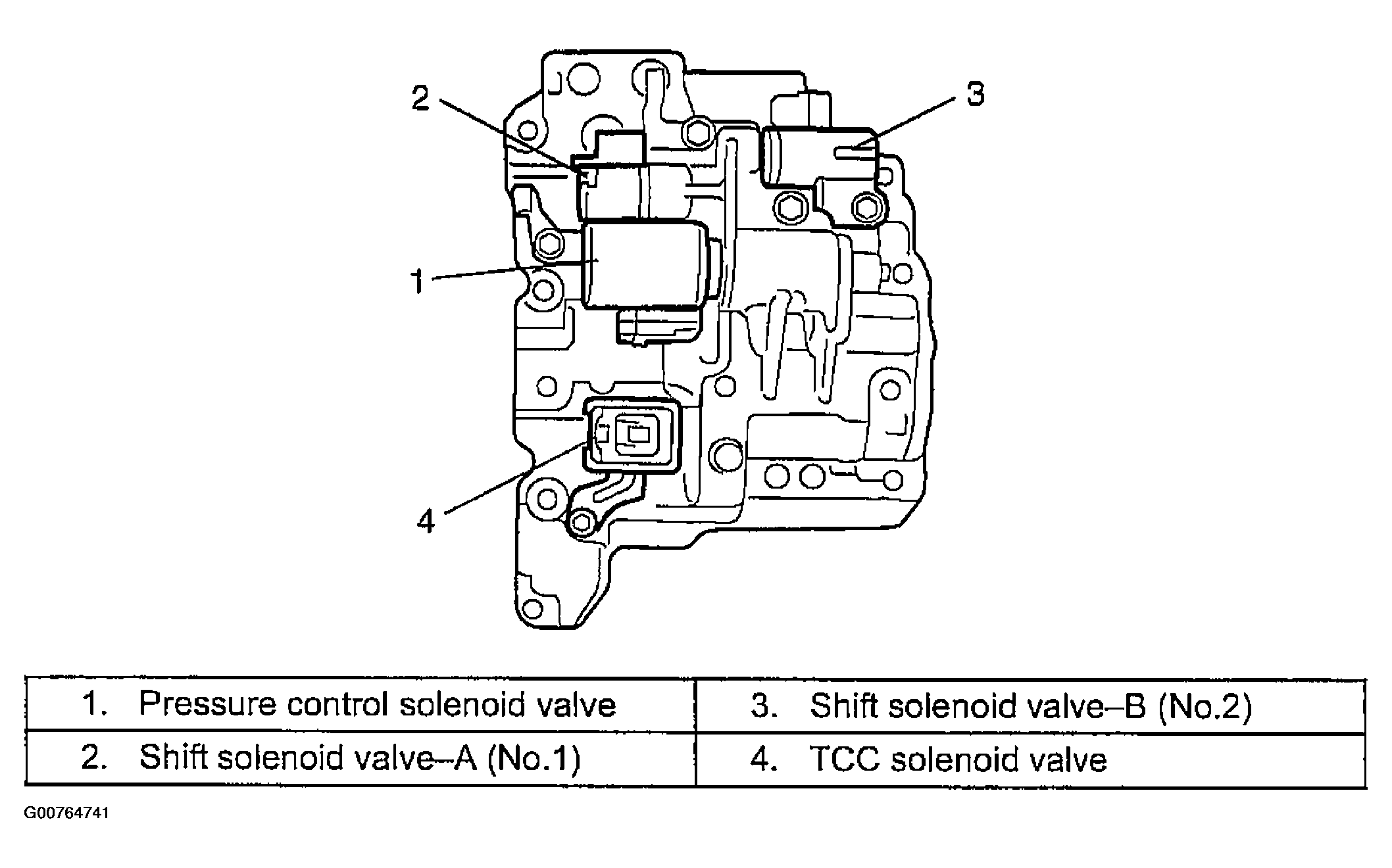

Fig 1: Removing Solenoid Valves

Courtesy of SUZUKI OF AMERICA CORP.
